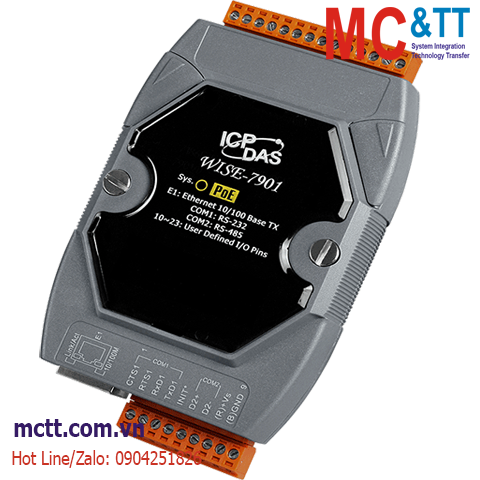

Bộ điều khiển nhúng IoT (IIoT Edge Controller) ICP DAS WISE-7901 CR
WISE-7901 CR đã dừng sản xuất, thay thế và nâng cấp thành WISE-5231
Feature
- Runs on browsers, no extra software tool is required.
- No more programming, Web pages provided for control logic editing.
- IF-THEN-ELSE logic rules execution ability.
- Support DI/DO X-Boards: X107, X109, X110, X111.
- Support Multi-Function X-Boards: X202, X203, X303, X304, X305, X308, X310, X324.
- Support I/O channel monitoring/control, Timer, Schedule operations.
- Support non-SSL Email sending and CGI Command sending operations.
- Modbus TCP Protocol for SCADA System Integration.
- IEEE 802.3af-compliant Power over Ethernet (PoE).
Introduction
WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the effort and cost spent on system development.
WISE-7901 follows IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs (Category 5 Ethernet cable). This feature provides greater flexibility and higher efficiency therefore simplifying systems design, saving space, reducing cables and eliminating the requirement for dedicated electrical outlets. Meanwhile, in case under a non-PoE environment, WISE-7901 will still be able to receive power from auxiliary power sources like AC adapters or battery, etc.
This module WISE-7901 supports Modbus/TCP protocol to make seamless integration with SCADA software available. It supports an I/O expansion bus to implement various I/O functions such as D/I, D/O, A/D, D/A according to the using X-Board.
Application
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.
https://mctt.vn/wise-iiot-edge-controller
Specifications
| Software |
| Protocol |
• Modbus TCP
• CGI Command (Sending) |
| Function |
• Web Interface for Configuration
• IF-THEN-ELSE Logic operation (36 rule supported)
• I/O channel monitoring and control
• Timer operation (12 set supported)
• Schedule operation (12 set supported)
• Internal Register operation (48 set supported)
• Recipe operation (12 set supported)
• Advanced P2P (8 set supported)
• non-SSL Email sending function
• SNTP Time Synchronization |
| CPU Module |
| CPU |
16-bit CPU (80 MHz) |
| LED Indicators |
| Status |
1 x PoE Power/System status |
| I/O Expansion |
| I/O Type |
X-board |
| COM Ports |
| Ports |
COM 1: Reserved
COM 2: Reserved |
| Ethernet |
| Ports |
RJ-45 x 1, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| PoE |
Yes |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
1.5 W |
| Powered from PoE |
Yes, IEEE 802.3af, Class 1 |
| Powered from Terminal Block |
Yes, 10 ~ 48 VDC |
| Mechanical |
| Dimensions (mm) |
72 x 123 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting/Wall Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +80 °C |
| Humidity |
5 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| WISE-7901 CR |
Intelligent User-defined I/O Module (RoHS) |
