Module lập trình nhúng Wise IoT 6 kênh DI + 6 kênh Power Relay ICP DAS WISE-7560M CR

Feature

  • Runs on browsers, no extra software tool is required.
  • No more programming, Web pages provided for control logic editing.
  • IF-THEN-ELSE logic rules execution ability.
  • Built-in I/O (Relay: 6 Channels; DI: 6 Channels).
  • Support I/O channel monitoring/control, Timer, Schedule operations.
  • Support non-SSL Email sending and CGI Command sending operations.
  • Modbus TCP Protocol for SCADA System Integration.
  • MQTT Protocol for IT & IoT (Internet of Things) System Integration.
  • IEEE 802.3af-compliant Power over Ethernet (PoE).
  • 2-port Ethernet Switch for Daisy-Chain Topology.

WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the labor and cost spent on system development.

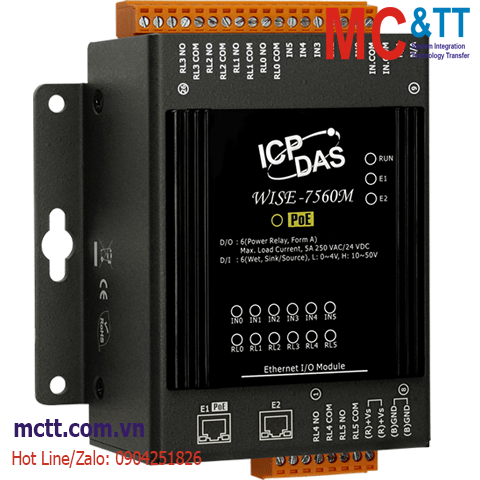

WISE-7560M provides 6 wet contact digital input channels and 6 form A electromechanical relays. It features optical isolation for 3000 VDC of transient overvoltage protection and doesn’t have channel-to-channel isolation. Note: When inductive loads are connected to the relays, a large counter electromotive force may occur when the relay actuates because of the energy stored in the load. These flyback voltages can severely damage the relay contacts and greatly shorten the relay life. Limit these flyback voltages at your inductive load by installing a flyback diode for DC loads or a metal oxide varistor for AC loads. WISE-7560M follows IEEE 802.3af-compliant Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs. In additional to this, WISE-7560M also has a built-in two-port Ethernet switch to implement daisy-chain topology. The cabling is much easier and total costs of cable and switch are significantly reduced.

By integrating with IF-THEN-ELSE rule engine, WISE-7560M provides powerful functions such as I/O Monitoring/Control, Counter, Timer, Schedule, non-SSL E-mail sending & CGI Command sending for use in various industrial applications. WISE-7560M also supports Modbus TCP and MQTT protocols to make seamless integration with SCADA, IT and IoT (Internet of Things) system.

Application

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.

More detailed application case, you can find on here.

Specifications

Software
Protocol • Modbus TCP
• CGI Command (Sending)
• MQTT Client (non-SSL)
• Active I/O (MQTT Publish)
Function • Web Interface for Configuration
• IF-THEN-ELSE Logic operation (72 rules supported)
• I/O channel monitoring and control
• Timer operation (24 set supported)
• Schedule operation (24 set supported)
• Internal Register operation (48 set supported)
• Recipe operation (24 set supported)
• Advanced P2P (8 set supported)
• non-SSL Email sending function
• SNTP Time Synchronization
CPU Module
CPU 32-bit CPU (400 MHz)
Isolation
Intra-module Isolation 2500 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for each terminal and ±8 kV Air for random point
Surge (IEC 61000-4-5) ±2 kV for Power Line
LED Indicators
Status 1 x PoE Power
1 x System Running
1 x Ethernet Link/Act
12 x I/O Channel Status
Digital Input/Counter
Channels 6
Type Wet Contact
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level +10 VDC ~ +50 VDC
OFF Voltage Level +4 VDC Max.
Max. Counts 16-bit (65535)
Frequency 50 Hz
Min. Pulse Width 10 ms
Input Impedance 10 kΩ
Overvoltage Protection +70 VDC
Relay Output
Channels 6
Type Power Relay, Form A (SPST N.O.)
Contact Rating 5 A @ 250 VAC/24 VDC (Resistive Load)
Operate Time 10 ms (max.)
Release Time 5 ms (max.)
Electrical Endurance 100,000 ops.
Mechanical Endurance 20,000,000 ops.
Ethernet
Ports RJ-45 x 2, 10/100 Base-TX, Swtich Ports (LED indicators)
PoE Yes
Power
Reverse Polarity Protection Yes
Input Range 12 ~ 48 VDC
Consumption 3.8 W
Powered from PoE Yes, IEEE 802.3af, Class 1
Powered from Terminal Block Yes, 12 ~ 48 VDC
Mechanical
Dimensions (mm) 97 x 120 x 42 (W x L x H)
Installation Wall Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

WISE-7560M     CR  Intelligent I/O Module with 2-port Ethernet Switch, 6-ch DI, 6-ch Power Relay and PoE. Supports Modbus/TCP and MQTT (RoHS)
