Module lập trình nhúng Wise IoT 10 kênh AI + 3 kênh DO ICP DAS WISE-7519ZM/S2 CR

Chia sẻ:
Mã sản phẩm: WISE-7519ZM/S2
Thương hiệu: ICP DAS
Tình trạng:

Intelligent MQTT I/O Module with 10-ch AI, 3-ch DO and 2-port Ethernet Switch

Liên hệ
Mô tả

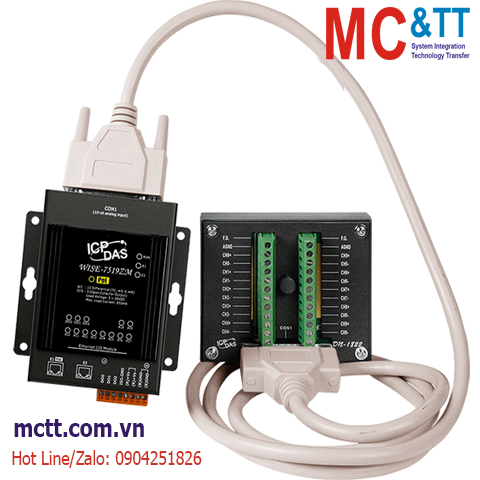

Module lập trình nhúng Wise IoT 10 kênh AI + 3 kênh DO ICP DAS WISE-7519ZM/S2 CR

Feature

  • Runs on browsers, no extra software tool is required.
  • No more programming, Web pages provided for control logic editing.
  • IF-THEN-ELSE logic rules execution ability.
  • Built-in I/O (AI: 10 Channels; DO: 3 Channels).
  • Support I/O channel monitoring/control, Timer, Schedule operations.
  • Support non-SSL Email sending and CGI Command sending operations.
  • Modbus TCP Protocol for SCADA System Integration.
  • MQTT Protocol for IT & IoT (Internet of Things) System Integration.
  • IEEE 802.3af-compliant Power over Ethernet (PoE).
  • 2-port Ethernet Switch for Daisy-Chain Topology.

Introduction

WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the labor and cost spent on system development.

WISE-7519ZM/S2 is specifically designed for extremely accurate thermocouple measurement and features automatic cold-junction compensation for each channel to ensure temperature output consistency and stable temperature output in the field. Current input and voltage input are both supported. Open thermocouple detection and ESD/ EFT/Surge protection mechanisms are also included. The three digital output channels can be set as alarm outputs. WISE-7519ZM/S2 follows IEEE 802.3af-compliant Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs. In additional to this, WISE-7519ZM/S2 also has a built-in two-port Ethernet switch to implement daisy-chain topology. The cabling is much easier and total costs of cable and switch are significantly reduced.

By integrating with IF-THEN-ELSE rule engine, WISE-7519ZM/S2 provides powerful functions such as I/O Monitoring/Control, Counter, Timer, Schedule, non-SSL E-mail sending & CGI Command sending for use in various industrial applications. WISE-7519ZM/S2 also supports Modbus TCP and MQTT protocols to make seamless integration with SCADA, IT and IoT (Internet of Things) system.

Application

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.

More detailed application case, you can find on here.

Specifications

Software
Protocol • Modbus TCP
• CGI Command (Sending)
• MQTT Client (non-SSL)
• Active I/O (MQTT Publish)
Function • Web Interface for Configuration
• IF-THEN-ELSE Logic operation (72 rules supported)
• I/O channel monitoring and control
• Timer operation (24 set supported)
• Schedule operation (24 set supported)
• Internal Register operation (48 set supported)
• Recipe operation (24 set supported)
• Advanced P2P (8 set supported)
• non-SSL Email sending function
• SNTP Time Synchronization
CPU Module
CPU 32-bit CPU (400 MHz)
Isolation
Intra-module Isolation 2500 VDC
EMS Protection
EFT (IEC 61000-4-4) ±2 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for each terminal and ±8 kV Air for random point
Surge (IEC 61000-4-5) ±2 kV for Power Line
LED Indicators
Status 1 x PoE Power
1 x System Running
1 x Ethernet Link/Act
13 x I/O Channel Status
Analog Input
Channels 10 (Differential)
Type ±15 mV, ±50 mV, ±100 mV, ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V
±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Jumper Selectable)
Thermocouple (J, K, T, E, R, S, B, N, C, L, M, and LDIN43710)
Stable and Consisten Temperature Output Yes
Resolution 16-bit
Accuracy ±0.1% of FSR or better
Sampling Rate 10 Samples/Second (Total)
Input Impedance > 300 kΩ
Common Mode Rejection 86 dB Min.
Normal Mode Rejection 100 dB
Overvoltage Protection 240 Vrms
Individual Channel Configuration Yes
Channel-to-Channel Isolation Yes, ±400 VDC
Open Wire Detection Yes
Zero Drift ±0.5 μV/°C
Span Drift ±25 ppm/°C
Digital Output
Channels 3
Type Isolated Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +5 VDC ~ +50 VDC
Load Current 650 mA/Channel
Overvoltage Protection 60 VDC
Overload Protection 1.4 A
Short-circuit Protection Yes
Ethernet
Ports RJ-45 x 2, 10/100 Base-TX, Swtich Ports (LED indicators)
PoE Yes
Power
Reverse Polarity Protection Yes
Input Range 12 ~ 48 VDC
Consumption 3.6 W
Powered from PoE Yes, IEEE 802.3af, Class 1
Powered from Terminal Block Yes, 12 ~ 48 VDC
Mechanical
Dimensions (mm) 97 x 114 x 38 (W x L x H)
Installation Wall Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

WISE-7519ZM/S2     CR  Intelligent I/O Module with 2-port Ethernet Switch, 10-ch AI, 3-ch DO and PoE. Supports Modbus/TCP and MQTT (RoHS)
Includes DB-1822 Daughter Board and 1.8 m Cable
