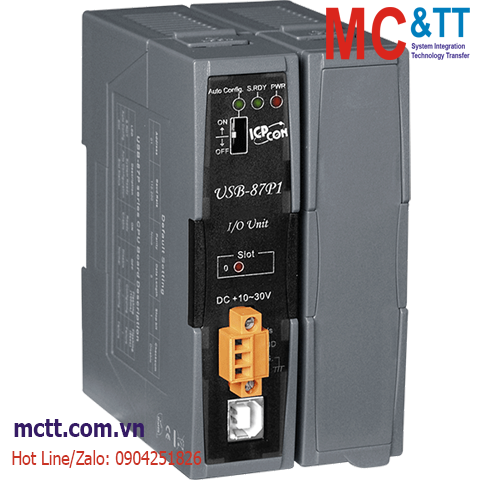

Module USB 1 khe cắm module I/O ICP DAS USB-87P1-G CR

Chia sẻ:
Mã sản phẩm: USB-87P1-G
Thương hiệu: ICP DAS
Tình trạng:

1-slot USB I/O Expansion Unit with Intelligent CPU Module (DCON Protocol)

Liên hệ
Mô tả

Module USB 1 khe cắm module I/O ICP DAS USB-87P1-G CR

Feature

• One USB Port
• Hot Swap Allowed
• Auto Configuration
• LED Indicators for Fault Detection
• DCON Protocol (ASCII-based protocol)
• 1 Slot for I-87K Modules
• Operating Temperature: -25 ~ +75 °C

Introduction

USB-87P1 is an unit to expand I/O via the USB. It is designed to be used in harsh and noisy environment, so the hardware is manufactured with wide power input range (10 ~ 30 VDC), isolated power input and can operate under wide temperature (-25 ~ +75 °C). To simplify installation and maintenance of I/O modules, it provides many useful features, such as: hot swap allowed, auto configuration, LED indicators for fault detection, dual watchdog to keep alive, programmable power on and safe values for safety.

There are more than 30 I/O modules supported with the unit, including analog input/output, digital input/output, counter, frequency I/O modules. We provide various software development kits (SDK) and demos, such as DLL, Labview driver, InduSoft driver, Linux driver, OPC server. The I-87K series I/O modules plugged in the USB-87Pn can be easily integrated into variant software system.

Application

• SMD assembly manufacturing
• PC board manufacturing
• Footware manufacturing
• Food industry
• Pharmaceutical industry
• Any temperature measurement required industries

Specifications

Main Unit
64-bit Hardware Serial Number Yes
LED Indicators
Status 1 x Power, 1 x System, 1 x Auto Configuration, 1 x Slot
I/O Expansion
I/O Type I-87K series
Slots 1
HMI
DIP Switch 1-bit for auto configuration
USB
Connector 1 x USB (Type B, 3000 VDC)
Power
Input Range +10 ~ 30 VDC
Consumption 1.0 W
Mechanical
Dimensions (mm) 64 x 120 x 111 (W x L x H)
Installation DIN-Rail, Wall mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90 % RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

USB-87P1-G     CR  1-slot USB I/O Expansion Unit with Intelligent CPU Module (DCON Protocol) (Gray Cover) (RoHS)
