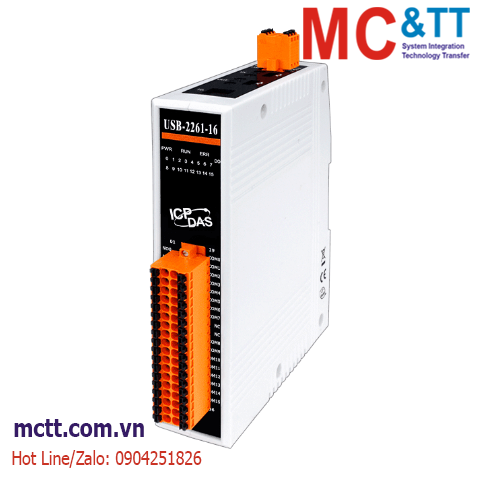

Module USB 16 kênh đầu ra Relay ICP DAS USB-2261-16 CR
The USB-2261-16 and USB-2261-32 are USB 2.0 I/O devices with 16 or 32 Power Relay. Both models also have LED indicators to display the status of the digital channels. A dual watchdog function with configurable power-on and safe values ensures reliable operation in harsh environments. We also provide API library and demos with source code for Windows and Linux users to develop their own USB applications with various development tools (VB/C++/C#.NET/VB.NET/LabVIEW). Therefore, the USB-2260-24/USB-2260-48 is the perfect choose for you to implement I/O expansion via a plug-and-play USB interface.
Built-In USB Hub with Support for Daisy Chaining
The USB-2200 module is equipped with a USB hub that supports daisy chain topologies.
This feature frees up the PC USB ports by enabling more than one USB-2200 module to be integrated into a single system.
Note：The USB 2.0 port provides only 500mA, external power is required when multiple modules are connected to the same USB port. Please refer to the following figure shown daisy chain application
Note：Support daisy-chain, max. 5 nodes.
Redundant Power
The modules support dual power inputs (+10 to +30 VDC) for enhanced redundancy. If one source becomes inactive or is interrupted, the other immediately takes over to ensure uninterrupted operation in critical environments. The modules can operate as normal with only a single power source. (If not using the USB hub function, the module can be powered via a USB 2.0 port.)
Feature
- 16/32-ch Power Relay output
- Dual watchdog with power-on and safe values
- 2-port USB 2.0 hub for daisy-chain wiring
- Plug-and-Play without driver
- Lockable USB cable
- Easy-to-use tool for setup and I/O testing
- API library (VB/C++/C#.NET/VB.NET/LabVIEW)
- Support 32/64-bit Win7/8/10/11 and Linux
Application
- Building Automation
- Factory Automation
- Measurement and Testing
- Testing Equipment
- Machine Automation
Specifications
| CPU Module |
| Watchdog Timer |
1 Hardware watchdog (1.6 second)
1 Software watchdog (Programmable) |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV contact for each terminal
±8 kV air for random point |
| LED Indicators |
| Status |
3 x Power, Run and Error
USB-2261-16: 16 x Power Relay
USB-2261-32: 32 x Power Relay |
| Relay Output |
| Channels |
USB-2261-16: 16
USB-2261-32: 32 |
| Type |
Power Relay (SPST-NO, Form A) |
| Contact Rating |
USB-2261-16: DC: 3 A @ 30 VDC, AC: 3 A @ 250 VAC (47 ~ 63 Hz)
USB-2261-32: DC: 2 A @ 30 VDC, AC: 2 A @ 250 VAC (47 ~ 63 Hz) |
| Operate Time |
+3.5 ~ +50 VDC |
| Release Time |
5 ms (Max.) |
| Electrical Endurance |
1 x 10^5 ops |
| Mechanical Endurance |
1 x 10^7 ops |
| Power on Value |
Yes, Programmable |
| Safe Value |
Yes, Programmable |
| USB |
| Ports |
2, daisy-chain max. 5 pcs |
| Specification |
USB 2.0 HighSpeed (480 Mbps) |
| Connector |
Type C |
| Power |
| Consumption |
USB-2261-16: Typical 2.5 W, Max. 3.0 W
USB-2261-32: Typical 4.1 W, Max. 4.6 W |
| Powered from Terminal Block |
Yes, +10 ~ +30 VDC |
| Mechanical |
| Dimensions (mm) |
USB-2261-16: 31 x 166 x 129
USB-2261-32: 56 x 180 x 144 |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| USB-2261-16 CR |
USB I/O Module with Isolated 16-ch Power Relay Output (RoHS)
Includes 1.8M USB Cable (CA-USB-AC2-L018) |
