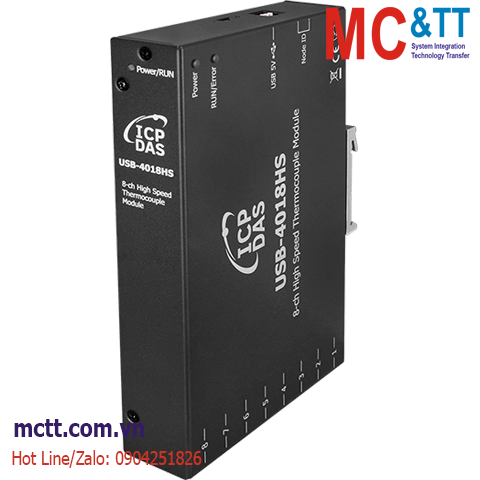

Module USB 8 kênh Thermocouple ICP DAS USB-4018HS CR

Chia sẻ:
Mã sản phẩm: USB-4018HS
Thương hiệu: ICP DAS
Tình trạng:

8-Channel High Speed Thermocouple Measurement USB I/O Module

Liên hệ
Mô tả

Module USB 8 kênh Thermocouple ICP DAS USB-4018HS CR

Feature

• 8-Channel Analog Inputs
• High Speed Thermocouple Measurement
• USB 2.0 Full-Speed (12 Mbps)
• No external power supply (USB Bus Powered)
• LED Indicate the Power status
• Lockable USB cable
• 3000 VDC intra-module isolation

Introduction

The USB-4000 series provided by ICP DAS is a new solution for data acquisition. It provides easy USB plug-and-play operation and equips accurate measurement for all kinds of automation applications. Compared with the traditional PC-based cards like PCI, PC/104 and ISA cards, users can achieve data acquisition easier and quicker with USB-4000 series. The USB-4018 series is an 8 / 16-channel high speed thermocouple measurement module and supports thermocouple devices with J, K, T, E, R, S, B, N, C, L, M and LDIN43710 types. The USB-4000 series also feature intra-module isolation. The USB-4018 series provides extremely accurate thermocouple measurement and automatically cold-junction compensation for each channel.   Besides, through USB-4000 series Utility, users can configure and test USB-4000 series directly and easily without any coding.

Application

• SMD assembly manufacturing
• PC board manufacturing
• Footware manufacturing
• Food industry
• Pharmaceutical industry
• Any temperature measurement required industries

Specifications

CPU Module
Watchdog Timer 1 Hardware watchdog (1.6 second)
1 Software watchdog (Programmable)
Isolation
Intra-module Isolation Yes, 3000 VDC
LED Indicators
Status PWR : Yellow for normal operation
Error : Red for error indicator
Analog Input
Channels 8
Type Thermocouple : J, K, T, E, R, S, B, N, C, L, M, L(DIN43710)
Resolution 0.1ºC
Accuracy ±0.5ºC
Sampling Rate 100Hz (each channel)
USB
Specification USB 2.0 Full-Speed (12Mbps)
Driver USB Virtual COM Port Driver for Windows 7/10/11
Linux OS (Kernel 2.4 or later version)
Protocol Modbus RTU
Power
Consumption 0.17 W Max.
Mechanical
Dimensions (mm) 113 x 169 x 29 (W x L x H)
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

USB-4018HS     CR  8-Channel High Speed Thermocouple Measurement USB I/O Module with 3000 VDC intramodule isolation (RoHS)
