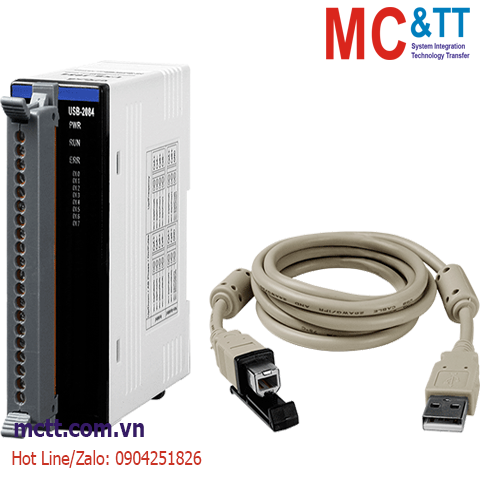

Module USB 4/8 kênh Counter/Frequency/Encoder ICP DAS USB-2084 CR

Feature

• 8-channel for Frequency and Up Counters Types
• 4-channel for Up/Down, Dir/Pulse and A/B Phase Counters Types
• Support digital filter (1~32767 us)
• No external power supply (USB Bus Powered)
• Plug-and-Play without driver installation
• Lockable USB cable
• Module supported for Win2000/XP , Win7/8/10/11 (32/64 bit) and Linux (32/64 bit)

Introduction

The USB-2084 is a full-speed USB device with 8-ch for Frequency and Up Counters, or 4-ch for Up/Down, Dir/Pulse and A/B Phase Counters, and offers features for industrial control and manufacturing test applications, such as factory automation or embedded machine control. With the true Plug & Play capability, it needs not opening up your computer chassis to install boards-just plug in the module, then get or set the data. Owing to another USB feature known as "hot-swapping", users do not even need to shut down and restart the system to attach or remove a peripheral.

The USB I/O utility can help users to configure and test USB-2084 quickly and easily without programming; In addition, we also provide the friendly API library and demos for users to develop own USB application with various application development tools (VB/C++/C#.NET/ VB.NET/LabVIEW). Therefore, the USB-2084 is the perfect way to add measurement and control capability to any USB capable computer.

Application

• Automation
• Measurement and testing
• Laboratory research

Specifications

CPU Module
Watchdog Timer 1 Hardware watchdog (1.6 second)
1 Software watchdog (Programmable)
Isolation
Intra-module Isolation 3000 VDC
EMS Protection
ESD (IEC 61000-4-2) 4 kV contact for each terminal
8 kV air for random point
LED Indicators
Status 3 x Power and Communication
8 x Counter Input
Counter/Frequency/Encoder Input
Channels 4-channel Up/Down Counter (CW/CCW)
4-channel Dir/Pulse Counter (Bi-direction)
4-channel A/B Phase (Quadrature Counting)
8-channel Up Counter
8-channel Frequency
Type Up, Frequency, Up/Down, Dir/Pulse, A/B Phase
ON Voltage Level Isolated: +4.5 VDC ~ +30 VDC
TTL: +2 VDC ~ +5 VDC
OFF Voltage Level Isolated: +1 VDC Max.
TTL: 0 VDC ~ +0.8 VDC
Frequency Accuracy ±0.4%
Individual Channel Configuration Yes
Intra-module Isolation 2500 VDC
Isolated, Frequency 250 KHz Max.
Non-isolated, Frequency 500 KHz Max.
Low Pass Filter 1 ~ 32767 uS (Software programmable)
USB
Specification USB 2.0 Full-Speed (12Mbps)
Power
Consumption 1.3 W (Max.)
Mechanical
Dimensions (mm) 33 x 107 x 102 (W x L x H)
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

USB-2084     CR  USB I/O Module with 4-ch/8-ch Counter/Frequency/Encoder Input (RoHS)
Includes 1.5M USB Cable (CA-USB15)
