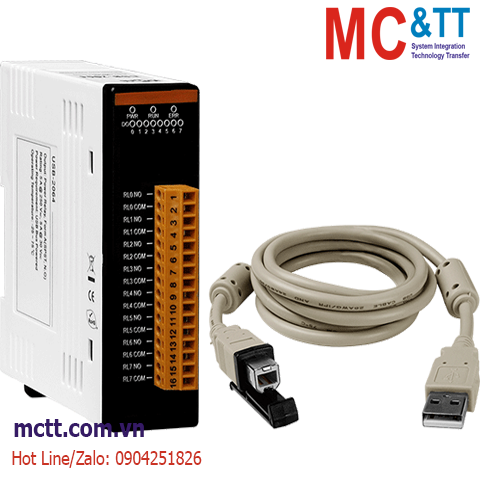

Module USB 8 kênh Power Relay ICP DAS USB-2064 CR
Feature
• 8-channel power relay output
• Safety functionality when communication failed
• Wide operating temperature range
• USB Bus Powered
• Plug-and-Play without driver
• Lockable USB cable
Introduction
The USB-2064 is a full-speed USB I/O device with 8-ch power relay output module, and provides a power rated relay with 5A maximum current contact rating for switching. In addition, the USB-2064 also offers 8 LED indicators that can be used to monitor the status of the relay output. Dual watchdog function that provided with configurable power-on and safe values ensures the device operates continuously, even in harsh environments.
We also provide API library and demos with source code for Windows and Linux users to develop their own USB applications with various development tools (VB/C++/C#.NET/VB.NET/LabVIEW). Therefore, the USB-2064 is the perfect choose for you to implement I/O expansion via a plug-and-play USB interface.
Application
• Automation
• Measurement and testing
• Laboratory research
Specifications
| CPU Module |
| Watchdog Timer |
1 Hardware watchdog (1.6 second)
1 Software watchdog (Programmable) |
| EMS Protection |
| ESD (IEC 61000-4-2) |
4 kV contact for each terminal
8 kV air for random point |
| LED Indicators |
| Status |
3 x Power and Communication
8 x Power Relay |
| Relay Output |
| Channels |
8 x Form A (SPST-NO) |
| Contact Rating |
5 A 250 VAC (47 ~ 63 Hz)
5 A 30 VDC |
| Operate Time |
10 ms (Max.) |
| Release Time |
5 ms (Max.) |
| Electrical Endurance |
1 x 10^5 ops |
| Mechanical Endurance |
2 x 10^7 ops |
| USB |
| Specification |
USB 2.0 Full-Speed (12Mbps) |
| Mechanical |
| Dimensions (mm) |
33 x 107 x 87 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| USB-2064 CR |
USB I/O Module with 8-ch Power Relay (RoHS)
Includes 1.5 M USB Cable (CA-USB15) |
