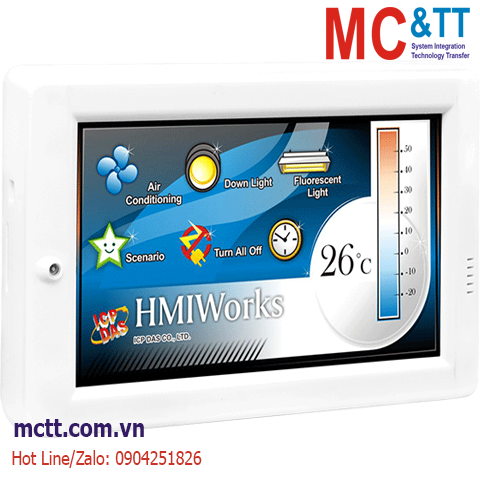

Màn hình cảm ứng HMI 4.3 inch RS-485 Modbus RTU ICP DAS TPD-430-H-EU CR

Chia sẻ:
Mã sản phẩm: TPD-430-H-EU
Thương hiệu: ICP DAS
Tình trạng:

4.3" Touch HMI Device with 1 x RS-485, Suitable for the European 86 x 86 mm Outlet Box

Liên hệ
Mô tả

Màn hình cảm ứng HMI 4.3 inch RS-485 Modbus RTU ICP DAS TPD-430-H-EU CR

Features

  • Excellent C/P ratio (cost/performance)
  • High-resolution color touch screen
  • RS-485 (including Self-Tuner)
  • RTC (Real Time Clock)
  • GUI design
  • Free HMIWorks development tool
  • Suppots C programming language and Ladder Designer
  • Supports the custom communication protocol (C language)
  • Modbus RTU protocol

Introduction

TPD 4.3 inch series is a tiny touch HMI with high resolution TFT color touch screen and fits in with regular electrical wall-mount outlet. Besides, it is seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control pads.

For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD-series devices when using Ladder Designer. With all the features provided, TPD-series touch HMI devices must be the most cost effective HMI device ever been in the market.

Application

https://mctt.vn/touchpad-tpd-vpd-icp-das

Specifications

Main Unit
CPU 32-bit RISC CPU
Storage 16 MB SDRAM/16 MB Flash
Real Time Clock Yes
Display
Type LCD 4.3” TFT(Resolution 480 X 272 X 16), defective pixels <= 3
Backlight Life 20,000 hours
Brightness 400 cd/m2
Touch Panel Yes
LED Indicators
Status 1 LED
HMI
Buzzer Yes
Rotary Switch Yes
Reset Button Yes
USB
Specification USB 1.1 Client (Firmware updates only)
Connector Mini-B
Power
Consumption 2.5 W
Powered from Terminal Block +12 ~ 48 VDC
Mechanical
Dimensions (mm) 126 mm x 92 mm x 29 mm
Installation Wall Mounting (Suitable for the European 86mm x 86mm outlet box)
Environment
Operating Temperature -20 ~ +50°C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

TPD-430-H-EU     CR  4.3" Touch HMI Device with 1 x RS-485, RTC and USB Download Port,
Suitable for the European 86 x 86 mm Outlet Box (RoHS)
