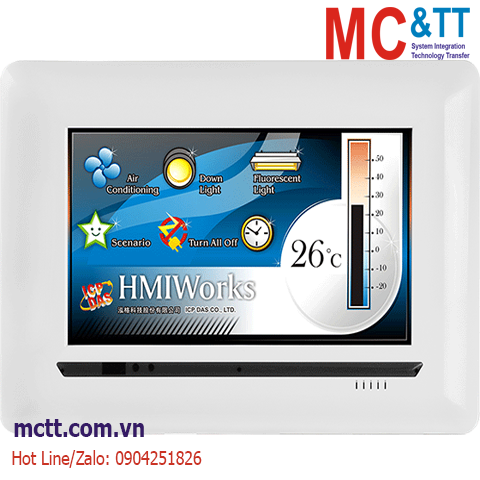

Màn hình cảm ứng HMI 7 inch RS-232/485/Ethernet Modbus RTU/TCP ICP DAS TPD-703 CR

Chia sẻ:
Mã sản phẩm: TPD-703
Thương hiệu: ICP DAS
Tình trạng:

7" Touch HMI Device with 1 x RS-485, 1 x RS-232, Ethernet (PoE), 16 MB Flash

Liên hệ
Mô tả

Màn hình cảm ứng HMI 7 inch RS-232/485/Ethernet Modbus RTU/TCP ICP DAS TPD-703 CR

Features

  • Excellent C/P ratio (cost/performance)
  • High-resolution color touch screen
  • PoE (Power over Ethernet)
  • RTC (Real Time Clock)
  • GUI design
  • Free HMIWorks development tool
  • Suppots C programming language and Ladder Designer
  • Supports the custom communication protocol (C language)
  • Modbus TCP/RTU protocol

Introduction

TPD 7 inch series is a series of touch HMI designed for building and home automation with high resolution TFT color touch screen. The TPD-703 expands its memory to 16 MB SDRAM and 16 MB Flash, while the TPD-703-64 expands its memory to 64 MB SDRAM and 64 MB Flash. Besides, TPD-703/703-64 provides 1 RS-232 port, 1 RS-485 port, Power over Ethernet (PoE) and real time clock (RTC), etc. Meantime, it can be seamlessly integrated with all kinds of I/O modules and can present beautiful, flexible and user-defined picture frame. TPD-703/703-64 offers a way to upgrade mechanical switches into intelligent control pads.

For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD-series devices when using Ladder Designer.


Installation

Application

https://mctt.vn/touchpad-tpd-vpd-icp-das

Specifications

Main Unit
CPU 32-bit RISC CPU
Storage 16 MB SDRAM/16 MB Flash
Real Time Clock Yes
Display
Type LCD 7” TFT (Resolution 800 x 480 , 65535 colors), defective pixels <= 3
Backlight Life 20,000 hours
Brightness 250 cd/m2
Touch Panel 4-wire, analog resistive; Light Transmission: 80%
LED Indicators
Status 2 LED
COM Ports
Ports 1 x RS-485 (including Self-Tuner) ; Non-isolation
1 x RS-232 (3-pin) ; Non-isolation
HMI
Buzzer Yes
Rotary Switch Yes
Reset Button Yes
Ethernet
Ports RJ-45 x 1, 10/100 Base-TX
Power
Consumption 3.6 W
Powered from PoE IEEE 802.3af, Class1 (48 V)
Powered from Terminal Block +12 ~ 48 VDC
Mechanical
Dimensions (mm) 217 mm x 153 mm x 33 mm
Installation Wall Mounting
Ingress Protection Rating Front Panel: IP40
Environment
Operating Temperature -10 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

TPD-703     CR  7" Touch HMI Device with 1 x RS-485, 1 x RS-232, Ethernet (PoE), RTC, 16 MB Flash (RoHS)
