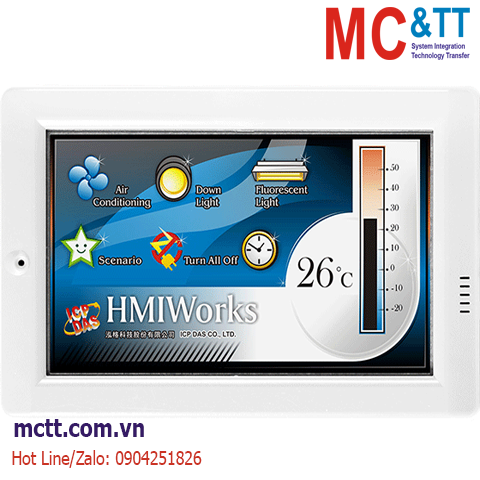

Màn hình cảm ứng HMI 4.3 inch RS-232/485/Ethernet Modbus RTU/TCP ICP DAS TPD-433F-H CR
Features
- Excellent C/P ratio (cost/performance)
- High-resolution color touch screen
- PoE (Power over Ethernet)
- RS-485 (including Self-Tuner)
- RS-232 (3-pin)
- RTC (Real Time Clock)
- GUI design
- Free HMIWorks development tool
- Suppots C programming language and Ladder Designer
- Supports the custom communication protocol (C language)
- Modbus TCP/RTU protocol
Introduction
The TouchPAD TPD 4.3" Series, TPD-432F-H/TPD-433F-H/TPD-433-M2, is a series of touch HMI and designed for building and home automation. The TPD 4.3" Series is equipped with high-color high-resolution TFT touch screen and fits in with regular electrical wall-mount outlet. Besides, it is seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control pads. For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TouchPAD series devices when using Ladder Designer. Moreover, by utilizing the Ethernet functionality of the TouchPAD, users can easily implement a redundant control solutions. With all the features provided, TouchPAD series touch HMI Devices must be the most cost effective HMI Device ever been in the market.
Application
https://mctt.vn/touchpad-tpd-vpd-icp-das
Specifications
| Main Unit |
| CPU |
32-bit RISC CPU |
| Storage |
16 MB SDRAM/16 MB Flash |
| Real Time Clock |
Yes |
| Display |
| Type |
LCD 4.3” TFT(Resolution 480 X 272 X 16), defective pixels <= 3 |
| Backlight Life |
20,000 hours |
| Brightness |
400 cd/m2 |
| Touch Panel |
Yes |
| LED Indicators |
| Status |
1 LED |
| COM Ports |
| Ports |
1 x RS-485 (including Self-Tuner)
1 x RS-232 (3-pin) |
| HMI |
| Buzzer |
Yes |
| Rotary Switch |
Yes |
| Reset Button |
Yes |
| Ethernet |
| Ports |
RJ-45 x 1, 10/100 Base-TX |
| USB |
| Specification |
USB 1.1 Client (Firmware updates only) |
| Connector |
Mini-B |
| Power |
| Consumption |
2.5 W |
| Powered from PoE |
IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block |
+12 ~ 48 VDC |
| Mechanical |
| Dimensions (mm) |
140 mm x 87 mm x 41 mm |
| Installation |
Wall Mounting |
| Ingress Protection Rating |
Front Panel: IP40 |
| Environment |
| Operating Temperature |
-20 ~ +50°C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| TPD-433F-H CR |
4.3" Touch HMI Device with 1 x RS-485, 1 x RS-232, Ethernet (PoE), RTC and USB Download Port (RoHS) |
