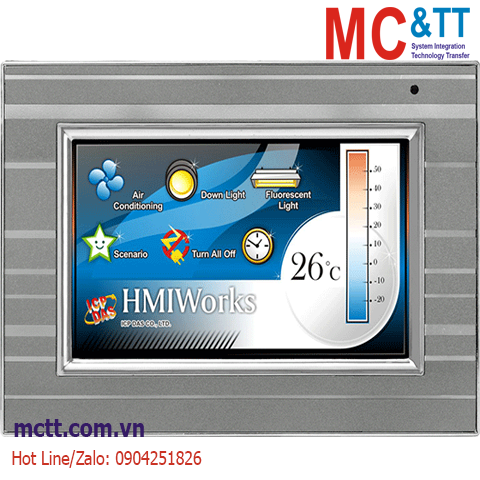

Màn hình cảm ứng HMI 4.3 inch RS-232/485/Ethernet Modbus RTU/TCP ICP DAS TPD-433-M2 CR
Features
- Excellent C/P ratio (cost/performance)
- High-resolution color touch screen
- PoE (Power over Ethernet)
- RS-485 (including Self-Tuner)
- RS-232 (3-pin)
- RTC (Real Time Clock)
- GUI design
- Free HMIWorks development tool
- Suppots C programming language and Ladder Designer
- Supports the custom communication protocol (C language)
- Modbus TCP/RTU protocol
Introduction
TPD 4.3 inch Mxseries is a tiny touch HMI with high resolution TFT color touch screen and fits in with regular electrical wall-mount outlet. Besides, it is seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control pads.
For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD-series devices when using Ladder Designer. With all the features provided, TPD-series touch HMI devices must be the most cost effective HMI device ever been in the market.
Application
https://mctt.vn/touchpad-tpd-vpd-icp-das
Specifications
| Main Unit |
| CPU |
32-bit RISC CPU |
| Storage |
16 MB SDRAM/16 MB Flash |
| Real Time Clock |
Yes |
| Display |
| Type |
LCD 4.3” TFT(Resolution 480 X 272 X 16), defective pixels <= 3 |
| Backlight Life |
20,000 hours |
| Brightness |
400 cd/m2 |
| Touch Panel |
Yes |
| LED Indicators |
| Status |
1 LED |
| COM Ports |
| Ports |
1 x RS-485 (including Self-Tuner)
1 x RS-232 (3-pin) |
| HMI |
| Buzzer |
Yes |
| Rotary Switch |
Yes |
| Reset Button |
Yes |
| Ethernet |
| Ports |
RJ-45 x 1, 10/100 Base-TX |
| USB |
| Specification |
USB 1.1 Client (Firmware updates only) |
| Connector |
Mini-B |
| Power |
| Consumption |
2.5 W |
| Powered from PoE |
IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block |
+12 ~ 48 VDC |
| Mechanical |
| Dimensions (mm) |
140 mm x 98 mm x 30 mm |
| Installation |
Wall Mounting |
| Ingress Protection Rating |
Front Panel: IP40 |
| Environment |
| Operating Temperature |
-20 ~ +50°C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| TPD-433-M2 CR |
4.3" Touch HMI Device with 1x RS-485, 1 x RS-232, Ethernet (PoE), RTC and USB Download Port (Grey) (RoHS) |
