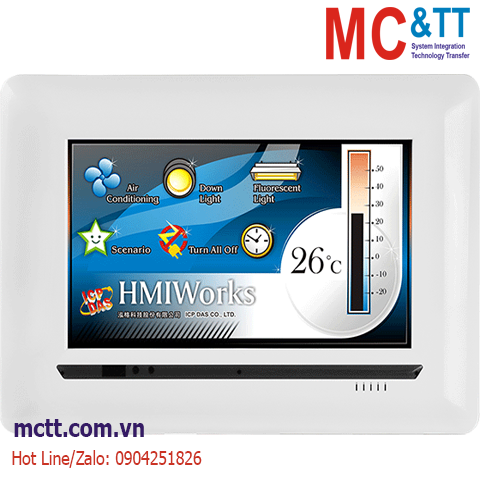

Màn hình cảm ứng HMI 7 inch RS-232/485/Ethernet Modbus RTU/TCP ICP DAS TPD-703-64 CR
Features
- Excellent C/P ratio (cost/performance)
- High-resolution color touch screen
- PoE (Power over Ethernet)
- RTC (Real Time Clock)
- GUI design
- Free HMIWorks development tool
- Suppots C programming language and Ladder Designer
- Supports the custom communication protocol (C language)
- Modbus TCP/RTU protocol
Introduction
TPD 7 inch series is a series of touch HMI designed for building and home automation with high resolution TFT color touch screen. The TPD-703 expands its memory to 16 MB SDRAM and 16 MB Flash, while the TPD-703-64 expands its memory to 64 MB SDRAM and 64 MB Flash. Besides, TPD-703/703-64 provides 1 RS-232 port, 1 RS-485 port, Power over Ethernet (PoE) and real time clock (RTC), etc. Meantime, it can be seamlessly integrated with all kinds of I/O modules and can present beautiful, flexible and user-defined picture frame. TPD-703/703-64 offers a way to upgrade mechanical switches into intelligent control pads.
For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD-series devices when using Ladder Designer.
Installation
Application
https://mctt.vn/touchpad-tpd-vpd-icp-das
Specifications
| Main Unit |
| CPU |
32-bit RISC CPU |
| Storage |
64 MB SDRAM/64 MB Flash |
| Real Time Clock |
Yes |
| Display |
| Type |
LCD 7” TFT (Resolution 800 x 480 , 65535 colors), defective pixels <= 3 |
| Backlight Life |
20,000 hours |
| Brightness |
400 cd/m2 |
| Touch Panel |
4-wire, analog resistive; Light Transmission: 80% |
| LED Indicators |
| Status |
2 LED |
| COM Ports |
| Ports |
1 x RS-485 (including Self-Tuner) ; Non-isolation
1 x RS-232 (3-pin) ; Non-isolation |
| HMI |
| Buzzer |
Yes |
| Rotary Switch |
Yes |
| Reset Button |
Yes |
| Ethernet |
| Ports |
RJ-45 x 1, 10/100 Base-TX |
| Power |
| Consumption |
3.6 W |
| Powered from PoE |
IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block |
+12 ~ 48 VDC |
| Mechanical |
| Dimensions (mm) |
217 mm x 153 mm x 33 mm |
| Installation |
Wall Mounting |
| Ingress Protection Rating |
Front Panel: IP40 |
| Environment |
| Operating Temperature |
-10 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| TPD-703-64 CR |
7" Touch HMI Device with 1 x RS-485, 1 x RS-232, Ethernet (PoE), RTC, 64 MB Flash (RoHS) |
