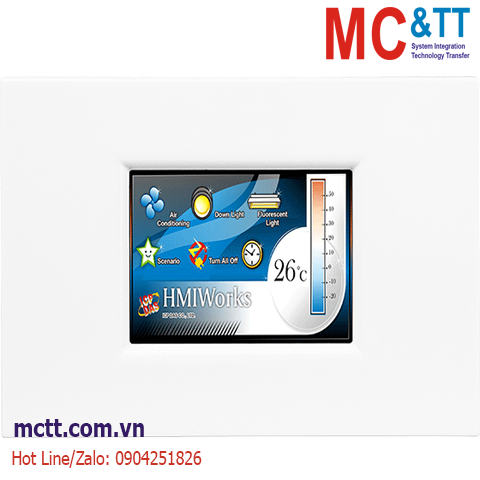

Màn hình cảm ứng HMI 2.8 inch RS-485/Ethernet Modbus RTU/TCP ICP DAS TPD-283U-M1 CR
Features
- Excellent C/P ratio (cost/performance)
- High-resolution color touch screen
- PoE (Power over Ethernet)
- RS-485 (including Self-Tuner)
- RTC (Real Time Clock)
- GUI design
- Free HMIWorks development tool
- Suppots C programming language and Ladder Designer
- Supports the custom communication protocol (C language)
- Modbus TCP/RTU protocol
Introduction
TPD 2.8 inch Mx series of tiny touch HMI and designed for building and home automation. TPD 2.8 inch series is equipped with high resolution TFT color touch screen and fits in with regular electrical wall-mount outlet. Besides, it is seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control pads.
For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD series devices when using Ladder Designer.
Moreover, we provide solutions in our PoE version, TPD-283-Mx/TPD-283U-Mx of TPD-series HMI devices. With all the features provided, TPD-series touch HMI devices must be the most cost effective HMI device ever been in the market.
Installation
Application
https://mctt.vn/touchpad-tpd-vpd-icp-das
Specifications
| Main Unit |
| CPU |
32-bit RISC CPU |
| Storage |
16 MB SDRAM/16 MB Flash |
| Real Time Clock |
Yes |
| Display |
| Type |
LCD 2.8” TFT (Resolution 240 x 320 x 16), defective pixels <= 3 |
| Backlight Life |
20,000 hours |
| Brightness |
160 cd/m2 |
| Touch Panel |
Resistive Touch |
| COM Ports |
| Ports |
1 x RS-485 (including Self-Tuner) |
| HMI |
| Buzzer |
Yes |
| Rotary Switch |
Yes |
| Reset Button |
Yes |
| Ethernet |
| Ports |
RJ-45 x 1, 10/100 Base-TX |
| USB |
| Specification |
USB 1.1 Client (Firmware updates only) |
| Connector |
Mini-B |
| Power |
| Consumption |
1.5 W |
| Powered from PoE |
IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block |
+12 ~ 48 VDC |
| Mechanical |
| Dimensions (mm) |
127 mm x 92 mm x 31 mm |
| Installation |
Wall Mounting |
| Ingress Protection Rating |
Front Panel: IP40 |
| Environment |
| Operating Temperature |
-20 ~ +70°C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| TPD-283U-M1 CR |
2.8" Touch HMI Device with 1 x RS-485, RTC, Ethernet (PoE) and USB Download Port (White Cover) (RoHS) |
