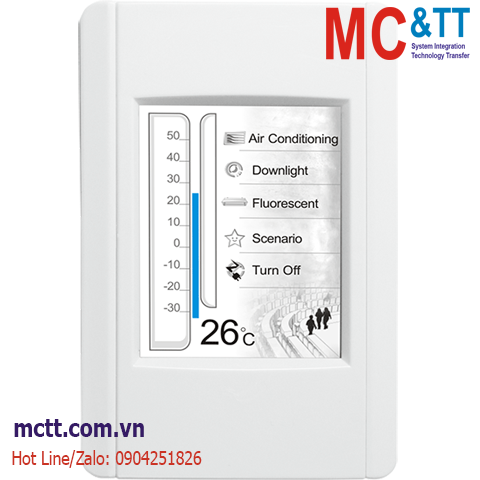

Màn hình cảm ứng HMI 2.8 inch RS-485 Modbus RTU ICP DAS TPD-280U-H CR

Chia sẻ:
Mã sản phẩm: TPD-280U-H
Thương hiệu: ICP DAS
Tình trạng:

2.8" Touch HMI Device with 1 x RS-485

Liên hệ
Mô tả

Màn hình cảm ứng HMI 2.8 inch RS-485 Modbus RTU ICP DAS TPD-280U-H CR

Features

  • Excellent C/P ratio (cost/performance)
  • High-resolution color touch screen
  • RS-485 (including Self-Tuner)
  • GUI design
  • Free HMIWorks development tool
  • Suppots C programming language and Ladder Designer
  • Supports the custom communication protocol (C language)
  • Modbus RTU protocol

Introduction

TPD 2.8 inch H series of tiny touch HMI and designed for building and home automation. TPD 2.8 inch series is equipped with high resolution TFT color touch screen and fits in with regular electrical wall-mount outlet. Besides, it is seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control pads.

For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD series devices when using Ladder Designer.

Moreover, we provide solutions in our PoE version, TPD-283-H/TPD-283U-H of TPD-series HMI devices. With all the features provided, TPD-series touch HMI devices must be the most cost effective HMI device ever been in the market.

Application

https://mctt.vn/touchpad-tpd-vpd-icp-das

Specifications

Main Unit
CPU 32-bit RISC CPU
Storage 16 MB SDRAM/16 MB Flash
Real Time Clock Yes
Display
Type LCD 2.8 TFT (Resolution 240 x 320 x 16), defective pixels <= 3
Backlight Life 20,000 hours
Brightness 160 cd/m2
Touch Panel Yes
HMI
Buzzer Yes
Rotary Switch Yes
USB
Specification USB 1.1 Client (Firmware updates only)
Connector Mini-B
Power
Consumption 1.5 W
Powered from Terminal Block +12 ~ 48 VDC
Mechanical
Dimensions (mm) 119 mm x 76 mm x 33 mm
Installation Wall Mounting
Ingress Protection Rating Front Panel: IP40
Environment
Operating Temperature -20 ~ +70°C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

TPD-280U-H     CR  2.8" Touch HMI Device with 1 x RS-485, RTC and USB Download Port (RoHS)
