Switch công nghiệp Layer 3 EN50155 quản lý 16 cổng GbE M12 + 4 cổng Gigabit Bypass M12 3onedata TNS5800D-20GT-P110

Chia sẻ:
Mã sản phẩm: TNS5800D-20GT-P110
Thương hiệu: 3onedata
Tình trạng:

Wall Mounting 20-port Layer 3 EN50155 Industrial Ethernet Switch

Liên hệ
Mô tả

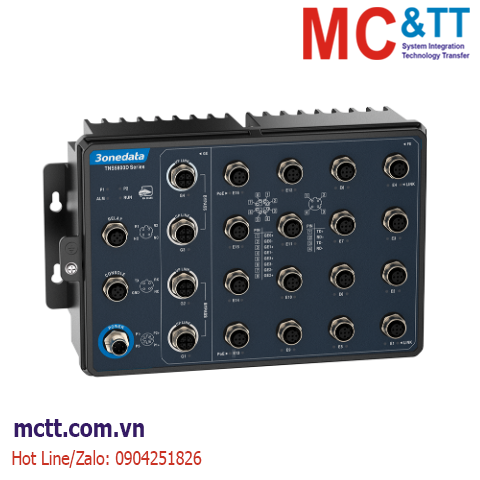

Switch công nghiệp Layer 3 EN50155 quản lý 16 cổng GbE M12 + 4 cổng Gigabit Bypass M12 3onedata TNS5800D-20GT-P110

TNS5800D series are layer 3 industrial Ethernet switches. The product conforms to the requirements of industrial standard EN50155 and EN50121. Ethernet interfaces use firm and reliable M12 connectors which can adapt to usage scenario with vibration and shock. PoE power supply conforms to IEEE802.3af/at protocol standard, and it can power device over Ethernet, thus decreasing the cable connection of powered devices. This product supports 110VDC or 24VDC power supply input and adopts wall mounting, which can meet the needs of different application sites.

The network management system supports various network protocols and industry standards, such as static routing, RIP, VRRP, NAT, STP/RSTP/MSTP, ERPS, 802.1Q VLAN, QoS function, DHCP Server, IGMP Snooping, LLDP, port trunking, port mirroring, etc. It also possesses complete management functions, support port configuration, port statistics, port IP binding, access control, 802.1X authentication, network diagnosis, rapid configuration, online upgrade, etc.; CLI, WEB, Telnet, SNMP, SSH and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.

When port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The hardware adopts fanless, low power consumption and wide temperature design, and the external heat sink provides extraordinary heat dissipation performance. This devices have passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in systems such as train network, signal, on-board PIS, CCTV.

Tính năng

  • Support 4 Gigabit M12 interfaces (with 2 groups of Bypass function)
  • Support up to 16 100M M12 interfaces, PoE (optional)
  • Support up to 16 Gigabit M12 interfaces, PoE (optional)
  • Adopt Ring patented technology, support single ring, coupling ring, chain, Dual-homing function
  • Support 2 110VDC or 24VDC power supply inputs (optional)
  • Support IP67 protection grade
  • Support -40~75℃ wide operating temperature range

Thông số kỹ thuật

Standard & Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX

IEEE 802.3ab for 1000Base-T

IEEE 802.3x for Flow Control

IEEE 802.1D for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

IEEE 802.1Q for VLAN

IEEE 802.1p for CoS

IEEE 802.1AB for LLDP

IEEE 802.3af for PoE

IEEE 802.3at for PoE+

ITU-T G.8032 for ERPS


SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, Port Mirroring, QoS, LLDP, DHCP Server, File Management, Port Statistics, Log Information, Static ARP, PoE Management (for PoE version)


Classification of User Permissions, NAT, 802.1X Authentication, DHCP Snooping, Radius Server Authentication, Port Alarm, Storm Suppression, SSHD Configuration, Telnet Configuration, Loop Detection, Link Flapping Protection, Aggregation Protection

Switch Function

802.1Q VLAN, Port Trunking, Bandwidth Management, Flow Control, Port Isolation

Unicast / Multicast

Static Multicast, Multicast Routing, IGMP-Snooping, PIM-SM, PIM-DM

Redundancy Technology

Ring, STP/RSTP/MSTP, ERPS, Loop Detection


Ping, Traceroute, Port Loopback

Time Management



Gigabit PoE M12:10/100/1000base-T (X), M12 (Female), 8-Pin X-Coded, automatic flow rate control, full/half duplex mode, MDI/MDI-X automatic detection; The maximum capacity of a single port is 30W PoE power supply output. Pin 1 and 2 of PoE power supply are positive, while pin 3 and 4 are negative

Gigabit M12: 10/100/1000Base-T(X), M12(Female), 8-Pin X-Coded, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning;it supports two groups of Bypass

100M PoE M12:10/100base-T (X), M12 (Female), 4-Pin X-Coded, automatic flow rate control, full/half duplex mode, MDI/MDI-X automatic detection; The maximum capacity of a single port is 30W PoE power supply output. Pin 1 and 3 of PoE power supply are positive, while pin 2 and 4 are negative

100M M12: 10/100Base-T(X), M12(Female), 4-Pin D-Coded, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning

Alarm port: M12 (Female), 4-Pin D-Coded, support 1 relay alarm output, current load capability is 1A@30VDC or 0.3A@125VAC

Console port: CLI command line management port (RS-232), M12(Female), 4-Pin D-Coded


Power indicator, alarm indicator, running indicator, interface indicator

Switch Property

Transmission mode: store and forward

MAC address: 16K

Packet buffer size: 12Mbit

Backplane bandwidth: 56G

Switch time delay: <10μs

Power Supply

Power supply range: 110VDC (66~156VDC) or 24VDC (9~36VDC / 18~36VDC)

Connection method: M12(Male), 4-Pin A-Coded

Connection protection: anti-reverse connection

Power Consumption

Full load (no PoE load): < 20W

Full load (including PoE load): <120W

Working Environment

Operating temperature: -40~75℃

Storage temperature:-40~85℃

Relative humidity: 5%~95%(no condensation)

Physical Characteristic

Housing: IP67 protection, metal

Installation: wall mounting

Dimension (W x H x D): 260mm×70mm×160mm

Weight: 1.57kg

Industrial Standard

IEC 61000-4-2 (ESD, electrostatic discharge), Level 4

Air discharge:± 15kV

Contact discharge: ±8kV

IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3

Power supply: ±4kV

Ethernet interface: ±2kV

Relay: ±4kV

IEC 61000-4-5 (Surge), Level 3

Power supply: common mode±4kV, differential mode±2kV

Relay: common mode ±4kV, differential mode±2kV

Ethernet interface: common mode±4kV

Shock: IEC 61373

Free fall: IEC 60068-2-32

Vibration: IEC 61373


CE, FCC, RoHS, EN50155, EN50121-3-2, IEC61373, EN45545


3 years



Quick Guide
