Standard & Protocol |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.1AB for LLDP
ITU-T G.8032 for ERPS
IEEE 802.3ad for LACP |
|
Management |
SNMP v1/v2c/v3 centralized managed equipment, RMON, Port Mirroring, LLDP, DHCP Server, DHCP Relay, port speed limit, port isolation, port statistics, DNS, configuration file management, online upgrade, log information, Syslog server |
|
Security |
User permission classification, ACL, 802.1X authentication, DHCP Snooping, Radius server authentication, SSH/HTTPS protocol authorization, link oscillation protection, port loop detection, access control, SNMP, RMON, IPDT, IPv6DT, Smart-Link, NAT, Port alarm, temperature alarm, network load alarm |
|
Switch Function |
802.1Q VLAN, MAC, QinQ, static aggregation, LACP, ARP, storm suppression |
|
Unicast / Multicast |
IGMP-Snooping, MLD-Snooping, IGMP, MLD, PIM-SM, PIM-DM, IPv6-PIM-SM, IPv6-PIM-DM |
|
Redundancy Technology |
Ring, MRP, STP/RSTP/MSTP, ERPS |
|
Routing Technique |
RIP, RIPng, OSPF, OSPFv3, ISIS, VRRP, IPv6 VRRP, BGP |
|
Troubleshooting |
Ping, Traceroute, Network Cable Diagnosis |
|
Time Management |
NTP Client, RTC |
|

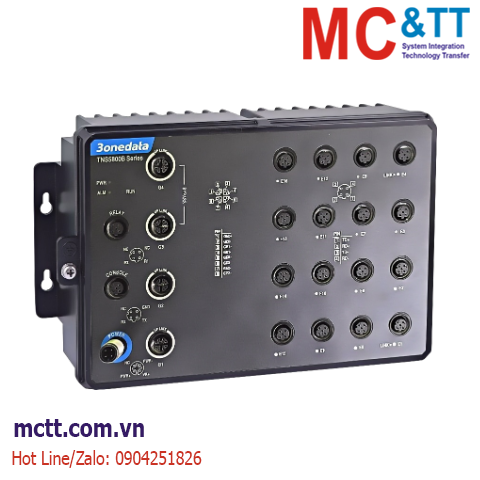

Interface |
Gigabit M12: 10/100/1000Base-T(X), M12(Female), 8-Pin X-Coded, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotuning; it supports 1 pair of Bypass
100M M12: 10/100Base-T(X), M12(Female), 4-Pin D-Coded, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotuning
Alarm interface: M12(Female), 4-Pin D-Coded, support 1 relay alarm output, with current load capacity of 1A@30VDC or 0.3A@125VAC
Console port: CLI command line management port (RS-232), M12(Female), 4-Pin D-Coded |
|
Indicator |
Power indicator, alarm indicator, running indicator, interface indicator |
|
Switch Property |
Transmission mode: store and forward
MAC address: 16K
Cache: 12Mbit
Backplane bandwidth: 128Gbps
Switch time delay: <10μs |
|
ITxPT |
Ignition Wake-up: The switch does not start immediately upon powering on. It waits until the vehicle's ignition is turned on with the key, and the switch receives the ignition signal before it activates.
Delayed Shutdown: After the vehicle's ignition is turned off and the key is removed, the switch continues to operate for a period before powering off.
Inventory Service: Provides foundational services compliant with the ITxPT standard.
ITxPT xStatus: Provides status reports, fault information, and other details of Inventory Service devices through ITxPT records. |
|
Power Supply |
Voltage range: 24VDC (12~31.2VDC)
Connection method: M12(Male), 4-Pin A-Coded
Connection protection: anti-reverse connection |
|
Power Consumption |
No-load at normal temperature: 10.12W@24VDC
Full-load at normal temperature: 12.25W@24VDC |
|
Working Environment |
Operating temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%~95% (no condensation) |
|
Mechanical Structure |
Housing: IP67 protection, metal
Installation: wall mounting
Dimension (W x H x D): 230.1mm×80.5mm×159.97mm
Weight: 2.558kg |
|
Industrial Standard |
IEC 61000-4-2 (ESD, electronic static discharge), Level 4
- Air discharge: ± 15kV
- Contact discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient), Level 4
- Power supply: ±4kV
- Ethernet interface: ±2kV
- Relay: ±4kV
IEC 61000-4-5 (Surge), Level 4
- Power supply: common mode ±4kV, differential mode ±2kV
- Relay: common mode ±4kV, differential mode ±2kV
- Ethernet interface: common mode±4kV
Shock: IEC 61373
Free fall: IEC 60068-2-31
Vibration: IEC 61373 |
|
Authentication |
CE, FCC, RoHS, ITxPT |
