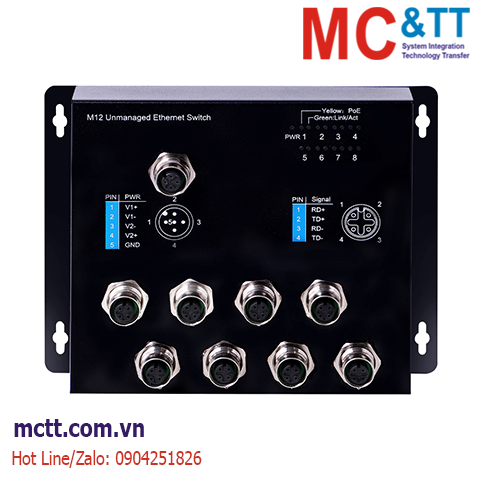

Switch công nghiệp 8 cổng Gigabit Ethernet M12 USR-ISG008-M12-BG
M12 Series-Gigabit Industrial Switch is designed specifically for industrial applications, using M12 connectors to ensure a tight and robust connection, and guarantees reliable operation on applications that are subject to high vibration and shock. This series of Ethernet switches offers 5/8 M12 Ethernet ports with a wide operating temperature of -40℃ to 75℃, which provides to user a safety and reliable solution.
Tính năng
- Plug and play
- Metal shell with IP40 protection
- Operating Temperature: -40℃~75℃
- Support full duplex and half duplex mode, auto-MDI / MDI-X
- Dual power Supply: DC 12-52V redundant power input
- Two types of cable connected options are available
Thông số kỹ thuật
|
Model No. |
USR-ISF005-M12-BG |
USR-ISF008-M12-BG |
USR-ISG005-M12-BG |
USR-ISG008-M12-BG |
|
USR-ISF005-M12-CZ |
|
Ethernet Port |
5 portM12 A-coded
4-pin(F) |
8 port M12 A-coded
4-pin(F) |
5 port M12 X-coded
8-pin(F) |
8 port M12 X-coded
8-pin(F) |
|
Power Connector |
M12 A-coded 5-pin(F) |
|
LED Indicator |
PWR、Link/ACT、 |
|
Bandwidth |
1Gbps |
1.6Gbps |
10Gbps |
16Gbps |
|
Packet Forwarding Rate |
0.74Mpps |
1.19Mpps |
7.44Mpps |
11.9Mpps |
|
Packet
Buffer Memory |
768kb |
768kb |
1.2Mb |
2Mb |
|
MAC
Address Table |
2k |
2k |
2k |
4k |
|
Network Protocols |
IEEE 802.3、IEEE 802.3u、IEEE 802.3x |
IEEE 802.3、IEEE 802.3u、IEEE802.3ab、IEEE 802.3x |
|
OperationMode |
Ethernet port support full duplex and half duplex auto negotiation, auto-MDI / MDI-X |
|
Environment |
Working temperature: -40～75℃
Storage temperature: -40～85℃
Ambient Relative Humidity: 5%~95 %( no condensation) |
|
Installation |
Wall-mounted，with cables exiting from the front/side panel |
|
Heat dissipation |
Natural heat dissipation |
|
Power Input |
DC 12-52V |
DC 12-52V |
DC 12-52V |
DC 12-52V |
|
Dimensions(mm) |
170x108x41.2 |
170x132x41.2 |
170x108x41.2 |
170x132x41.2 |
|
170.1x106.5x28.9 |
Download
Datasheet
Thông tin đặt hàng
| Model No. |
Specifications |
| USR-ISF005-M12-BG |
5-Port Industrial Switch, Fast |
| USR-ISF008-M12-BG |
8-Port Industrial Switch, Fast |
| USR-ISG005-M12-BG |
5-Port Industrial Switch, Gigabit |
| USR-ISG008-M12-BG |
8-Port Industrial Switch, Gigabit |
| USR-ISF005-M12-CZ |
5-Port Industrial Switch, Fast (Vehicle-mounted) |
