| Standard & Protocol |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE802.1p for CoS
IEEE 802.1X for 802.1X Authentication
IEEE 802.1AB for LLDP
ITU-T G.8032 for ERPS |
| Management |
SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, Port Mirroring, QoS, LLDP, DHCP Server, File Management, Port Statistics, Log Information, Static ARP |
| Security |
Classification of User Permissions, ACL, NAT, 802.1X Authentication, Radius Server Authentication, Port Alarm, Power Alarm, Storm Suppression, SSHD Configuration, Telnet Configuration |
| Switch Function |
802.1Q VLAN, Port Trunking, Bandwidth Management, Flow Control, Port Isolation |
| Unicast / Multicast |
Static Multicast, IGMP-Snooping |
| Redundancy Protocol |
Ring, STP/RSTP/MSTP, ERPS, Loop Detection |
| Troubleshooting |
Ping, Traceroute, Port Loopback |
| Routing Technique |
VRRP, RIP, OSPF |
| Time Management |
NTP |

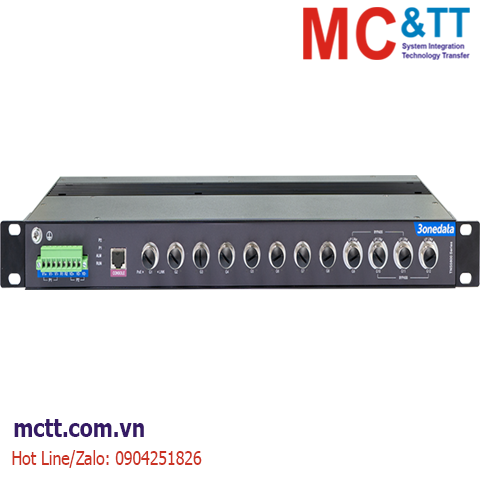

| Interface |
Gigabit M12: 10/100/1000Base-T(X), M12(Female), 8-Pin X-Coded, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning; it supports two groups of Bypass
100M M12: 10/100Base-T(X), M12(Female), 4-Pin D-Coded, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning
Alarm ports: 8-pin 5.08mm pitch terminal blocks, relay occupies 2 pins and 1 relay alarm information output is supported, the current load capability is 1A@30VDC or 0.3A@125VAC
Console port: CLI command line management port(RS-232), RJ45 |
| LED Indicator |
Power indicator, alarm indicator, running indicator, interface indicator |
| Switch Property |
Transmission mode: store and forward
MAC address: 16K
Packet buffer size: 12Mbit
Backplane bandwidth: 128G
Switch time delay: <10μs |
| Power Supply |
Power supply range: 110VDC (66~156VDC), dual power supply redundancy
Connection method: 8-pin 5.08mm pitch terminal blocks (includes 6-pin power supply)
Connection protection: anti-reverse connection |
| Power Consumption |
< 20W |
| Environmental Limit |
Operating temperature range: -40~75℃
Storage temperature range: -40~85℃
Relative humidity: 5%～95% (no condensation) |
| Physical Characteristic |
Housing: IP40 protection, metal
Installation: 1U rack mounting
Dimension (W x H x D): 482.6mm×44.45mm×200mm (lugs are included)
|
| Industrial Standard |
EN 50121-3-2: 2016 standard, Table 5.3 (Electrostatic Discharge), Class A
Air discharge:± 8kV
Contact discharge: ±6kV
EN 50121-3-2: 2016 standard, Table 3.3 (Surge), Class A
Power supply: common mode±2kV, differential mode±1kV
EN 50121-3-2: 2016 standard, Table 3.2 (Electrical Fast Transient Pulses), Class A
Power supply: ±2kV
Signal: ±2kV
EN 50121-3-2: 2016 standard, Table 5.1, 5.2 (Radio Frequency Electromagnetic), Class A
80MHz~800MHz, 20V/m
800MHz~1GHz, 20V/m
1.4GHz~2.0GHz, 10V/m
2.0GHz~2.7GHz, 5V/m
5.1GHz~6GHz, 3V/m
EN 50121-3-2: 2016 standard, Table 3.1, 4.1 (Conducted Disturbance Induced by RF Fields), Class A
Power supply: 0.15MHz~80MHz, 10V
Signal: 0.15MHz~80MHz, 10V
EN 50121-3-2: 2016 standard, table 3.1 (Power Supply Conducted Disturbance)
150kHz~500kHz, 79dBμV quasi-peak value
500kHz~30MHz, 73dBμV quasi-peak value
EN 50121-3-2: 2016 standard, table 3.1 (Radiation Disturbance)
30MHz~230MHz, ＜40dBμV/m quasi-peak value
230MHz~1GHz, ＜47dBμV/m quasi-peak value
Shock: IEC 61373
Free fall: IEC 60068-2-32
Vibration: IEC 61373 |
| Certification |
CE, FCC, RoHS, EN50155, EN50121-3-2, IEC61373 |
