| Standard & Protocol |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.1AB for LLDP
IEEE 802.3af for PoE
IEEE 802.3at for PoE+
ITU-T G.8032 for ERPS |
| Management |
SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, Port Mirroring, QoS, LLDP, DHCP Server, File Management, Port Statistics, Log Information, Static ARP, PoE Management |
| Security |
User permission rating, ACL, port alarm, power alarm, storm suppression, SSHD configuration, Telnet configuration |
| Switch Function |
802.1Q VLAN, Port Trunking, Bandwidth Management, Flow Control, Port Isolation |
| Unicast / Multicast |
Static Multicast, IGMP-Snooping |
| Redundancy Protocol |
Ring, STP/RSTP/MSTP, ERPS, Loop Detection |
| Troubleshooting |
Ping, Traceroute, Port Loopback |
| Time Management |
NTP Client |

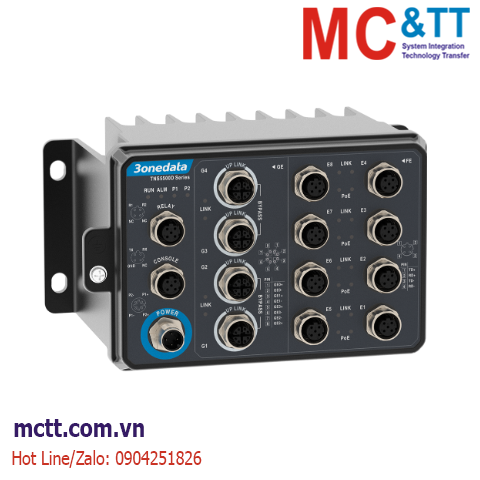

| Interface |
Gigabit M12: 10/100/1000Base-T(X), M12(Female), 8-Pin X-Coded, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning; it supports two groups of Bypass
100M PoE M12:10/100base-T (X), M12 (Female), 4-Pin D-Coded, automatic flow rate control, full/half duplex mode, MDI/MDI-X automatic detection; The maximum capacity of a single port is 30W PoE power supply output. Pin 1 and 3 of PoE power supply are positive, while pin 2 and 4 are negative
Alarm port: M12 (Female), 4-Pin D-Coded, support 1 relay alarm output, current load capability is 1A@30VDC or 0.3A@125VAC
Console port: CLI command line management port (RS-232), M12(Female), 4-Pin D-Coded |
| LED Indicator |
Power indicator, alarm indicator, running indicator, interface indicator, PoE indicator |
| Switch Property |
Transmission mode: store and forward
MAC address: 16K
Packet buffer size: 12Mbit
Backplane bandwidth: 56G
Switch time delay: <10μs |
| Power Requirement |
Power supply range:
TNS5500D-8P4GT-P24: 24VDC (18~36VDC), dual power supply
TNS5500D-8P4GT-P110: 110VDC (66~156VDC), dual power supply
Connection method: M12(Male), 4-Pin A-Coded
Connection protection: non-polarity |
| Power Consumption |
TNS5500D-8P4GT-P110
Full load (without PoE load): 15.8W@110VDC
Full load (with PoE load): 124.6W@110VDC |
| Environmental Limit |
Operating temperature range: -40~75℃
Storage temperature range: -40~85℃
Relative humidity: 5%～95% (no condensation) |
| Physical Characteristic |
Housing: IP67 protection, metal
Installation: wall mounting
Dimension (W x H x D): 178mm×104mm×92mm
Weight: 1.57kg |
| Industrial Standard |
IEC 61000-4-2 (ESD, electrostatic discharge), Level 4
Air discharge: ± 15kV
Contact discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
Power supply: ±4kV
Ethernet interface: ±2kV
Relay: ±4kV
IEC 61000-4-5 (Surge), Level 3
Power supply: common mode±4kV, differential mode±2kV
Relay: common mode ±4kV, differential mode±2kV
Ethernet interface: common mode±4kV
Shock: IEC 61373
Free fall: IEC 60068-2-32
Vibration: IEC 61373 |
| Certification |
CE, FCC, RoHS, EN50155, EN50121-3-2, IEC61373 |
