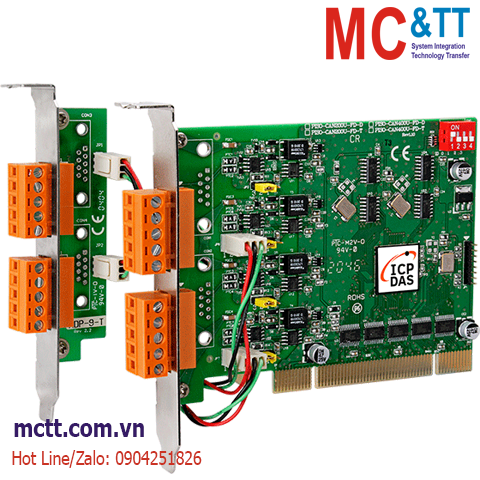

Card PCI 4 cổng CAN FD ICP DAS PISO-CAN400U-FD-T CR
Features
- Compatible with the ISO 11898-2 standard
- Compatible with CAN specification 2.0 A/B and FD
- CAN FD support for ISO and Non-ISO (Bosch) standards switchable
- CAN FD bit rates for data field from 100 kbps to 10000 kbps
- CAN bit rates from 10 kbps to 1000 kbps
- Support CAN Bus message filter configuration
- Board number selectable via DIP switch
- Built-in jumper to select 120 ohm terminal resister for CAN Bus
- Drivers provided for Windows 7/8.1/10
- Demos and libraries provided for C#.Net, VB.Net and VC++.Net
Introduction
CAN FD (CAN with Flexible Data-Rate) is a newer extension version of the CAN 2.0 protocol. It was developed by Bosch and was released in 2012. It has been significantly improved during the standardization process and is nowadays in ISO 11898-1:2015. The CAN FD speeds up the data transmission and packs more data into each message.
PISO-CAN400U-FD-T is a very powerful and economic solution for an active CAN board. It has four independent CAN bus communication ports with 5-pin screw terminal connector, and has the ability to cover a wide range of CAN FD applications. It uses Microchip CAN FD controllers and TI TCAN1042HG series transceivers, which provide bus arbitration and error detection features, combined with auto-correction and re-transmission functionality.
Applications
- Control System
- Building Automation
- Factory Automation
- Distributed data acquisition
Click to view the Introduction of https://mctt.vn/can-bus-icp-das
Specifications
| Software |
| Driver |
Windows 7/8.1/10 (32-bit/64-bit OS) |
| SDK |
C#.Net, VB.Net, VC++.Net |
| PC Bus |
| Type |
Universal PCI, 3.3 V and 5 V, 33 MHz, 32-bit, plug and play |
| Board No. |
Configurable via DIP switch |
| CAN |
| Controller |
Microchip MCP2518FD |
| Ports |
4 |
| Baud Rate |
CAN bit rates: 10 k ~ 1 M bps,
CAN FD bit rates for data field: 100 k ~ 10 M bps (*Note1) |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor |
Jumper for 120 Ω terminal resistor |
| Specification |
ISO 11898-2, CAN 2.0 A/B and FD |
| Filter |
Yes |
| Power |
| Consumption |
200 mA @ 5V |
| Mechanical |
| Dimensions (mm) |
121.7 x 21.6 x 92.7 (W x L x H) |
| Environment |
| Operating Temperature |
0 ~ +60 °C |
| Storage Temperature |
-20 ~ +70 °C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Specification Memo
Note1: The maximum CAN FD data rate can be exceeded depending on the concrete operating conditions (cable length, network topology, settings,...), but it can also not be reached.
Download
Datasheet
Documents
Ordering Information
| PISO-CAN400U-FD-T CR |
4-port Isolated Protection CAN FD Universal PCI Card with 5-pin screw terminal connector, including a ADP-9-T board (RoHS) |
