Module PCI-104 1 cổng CAN ICP DAS PCM-CM100-D CR
Features
- PCI-104 compliant
- Compatible with CAN specification 2.0 part A and B
- Fully compatible with the ISO 11898-2 standard
- Support several kinds of baud rate from 10 kbps ~ 1 Mbps
- 2500 Vrms photocoupler isolation on the CAN side
- Built-in jumper for 120 Ω terminal resistor of CAN bus
- 3 kV galvanic isolation
- 80186, 80MHz CPU inside
- Allow users to program their special firmware
- Timestamp with at least ±1ms precision
Introduction
The CAN (Controller Area Network) is a serial communication protocol, and efficiently supports distributed real-time control with a very high level of security. It is an especially suited for networking "intelligent" devices as well as sensors and actuators within a system or sub-system. In CAN networks, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted.

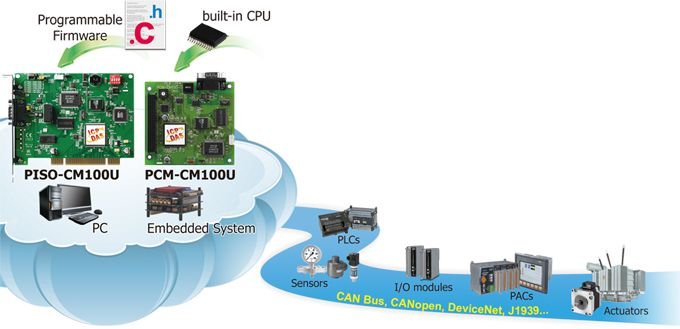

ICP DAS provides an open architecture platform for PCM-CM100-D. The PCM-CM100-D represents a very powerful and economic solution of an active CAN board with one CAN channels, covering a wide range of CAN applications. The 16-bit on-board microcontroller allows, among many other features, the filtering, preprocessing, and storage (with timestamp) of CAN messages as well as the real-time transmission of CAN messages. PCM-CM100-D also uses the new Phillips SJA1000T and Transceiver 82C250/251, which provide bus arbitration and error detection with auto correction and re-transmission function. Under the effect of the powerful microcontroller, this card can be made for one CAN controller without losing data, even in systems with a high bus load. Besides, equipped with integrated intelligence functions, the PCM-CM100-D makes it is possible to preprocess CAN data streams, thus relieving the PC of a considerable burden. As a result, real-time requirements on the PC applications are drastically reduced. Due to the state-of-the-art, it can be installed in a PCI-104 bus and supported truly “Plug & play” technology.
In addition, users can develop their own CAN application by using the PCM-CM100-D library. When the PCM-CM100-D is active, the data exchange between users’ application and can bus firmware is performed via the memory mapping method of the PCM-CM100-D.
Applications
- DeviceNet, CANopen, CAN J1939, SDS (System Wide Network) protocol application.
- CAN bus communication application. .
- Industry automation
- Industrial Machinery
- Building Automation
- Food & Beverage
- Semiconductor Fabrication
- Control system
Click to view the Introduction of https://mctt.vn/can-bus-icp-das
Specifications
| Software |
| Driver |
Windows XP/7/8/10 (32-bit/64-bit OS) |
| SDK |
VB 6.0, VC++ 6.0, BCB 6.0, Delphi 4.0 |
| CPU Module |
| CPU |
80186, 80 MHz or compatible |
| EEPROM |
16 KB |
| Flash |
512 KB |
| NVRAM |
31 bytes (battery backup, data valid for up to 10 years) |
| SRAM |
512 KB |
| Real Time Clock |
Yes |
| LED Indicators |
| Status |
1 x CAN status
1 x Operating mode |
| PC Bus |
| Type |
PCI-104 |
| Board No. |
By DIP switch |
| CAN |
| Controller |
NXP SJA1000T with 16 MHz clock |
| Ports |
1 |
| Baud Rate |
10 k ~ 1 M bps |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor |
Jumper for 120 Ω terminal resistor |
| Power |
| Consumption |
400 mA @ 5 V |
| Mechanical |
| Dimensions (mm) |
96 x 90( W x L) |
| Environment |
| Operating Temperature |
0 ~ +60 °C |
| Storage Temperature |
-20 ~ +70 °C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PCM-CM100-D CR |
1-port Programmable CAN PCI-104 Module with 9-Pin D-sub Connector (RoHS) |
