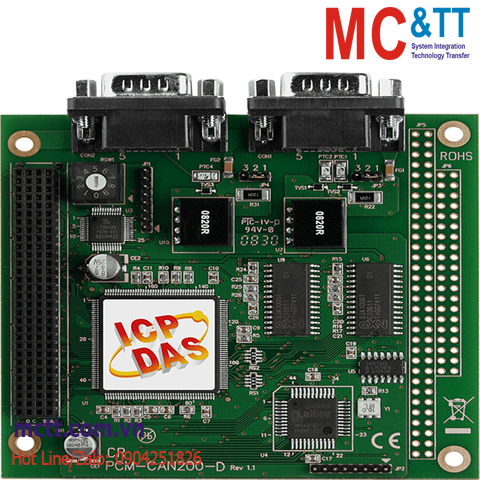

Module PCI-104 2 cổng CAN ICP DAS PCM-CAN200-D CR
Features
- PCI104 compliant
- 9-pin D-sub connector
- Compatible with CAN 2.0 parts A and B
- Fully compatible with ISO 11898-2 standard
- Support CAN bard from 10K to 1M bps
- 2500 Vrms photo couple isolation on the CAN bus
- Built-in jumper to select 120 ohm terminal resister
- 1KV galvanic isolation
- 2 independent CAN channels
- Direct memory mapping to the CAN controller
Introduction
PCM-CAN200-D can represent a CAN solution on a high quality PCI104 hardware in industrial environment compliant with CAN 2.0A and CAN 2.0B specification. It has 2 independent CAN bus communication ports with 9-pin D-sub connector, and has the ability to cover a wide range of CAN applications.
Besides, PCM-CAN200-D uses the CAN controller Phillips SJA1000T and transceiver 82C250/251, which provide bus arbitration, error detection with auto correction and re-transmission function. It can be installed in a 5V PCI slot and supported truly “Plug & play”

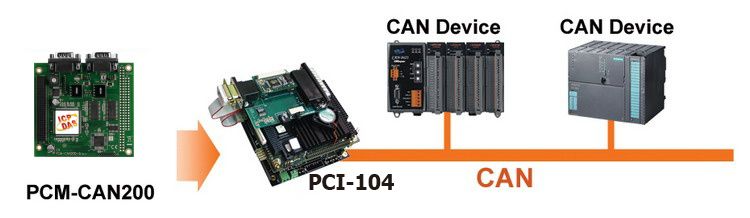

Applications
- CAN bus communication application
- DeviceNet, CANopen, CAN J1939, SDS(System Wide Network) protocol application
- Control System
- Building Automation
- Factory Automation
- Distributed data acquisition
Click to view the Introduction of https://mctt.vn/can-bus-icp-das
Specifications
| Software |
| Driver |
Windows XP/7/8/10 (32-bit/64-bit OS), Linux 2.6.x ~ 5.4.0, LabView, DASYLab, InduSoft |
| SDK |
VB 6.0, VC++ 6.0, BCB 6.0, Delphi 4.0 |
| CAN |
| Controller |
NXP SJA1000T with 16 MHz clock |
| Ports |
2 |
| Baud Rate |
10 k ~ 1 M bps |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor |
Jumper for 120 Ω terminal resistor |
| Power |
| Consumption |
250 mA @ 5 V |
| Mechanical |
| Dimensions (mm) |
91 x 22 x 96 (W x L x H) |
| Environment |
| Operating Temperature |
0 ~ +60 °C |
| Storage Temperature |
-20 ~ +70 °C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PCM-CAN200-D CR |
2-Port Isolated Protection CAN Communication PCI-104 Module with 9-pin D-sub connector (RoHS) |
