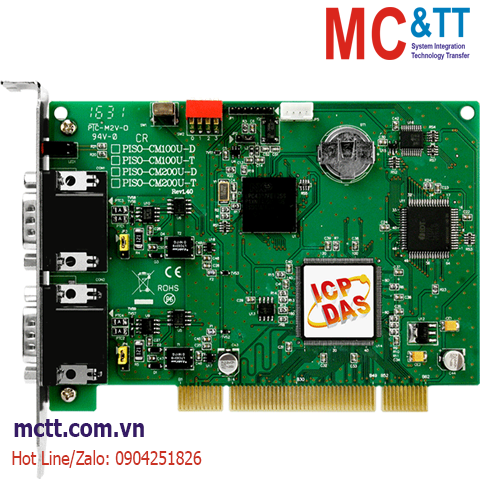

Card PCI 2 cổng CAN ICP DAS PISO-CM200U-D CR
Features
- Embedded 32-bit microprocessor
- NXP 82C250 CAN transceiver
- Bosch C_CAN controller
- Supports both CAN 2.0A and CAN 2.0B specifications
- Storage Timestamp with a precision of at least ±1 ms
- Board number selectable via DIP switch
- Dual port RAM communication mechanism
- Embedded RTC (real time clock)
- Transmission/reception buffer for up to 256 CAN messages
- Allows a maximum of 5 sets of cyclic transmission messages
- Cyclic transmission message precision: ±1ms
- Easy to update firmware
Introduction
A Controller Area Network (CAN) is a serial communication system based on the CAN protocol that enables efficient distributed real-time control combined with a very high level of security. The CAN protocol is especially suited for structuring "intelligent" device networks, as well as for building automatic control environments that contain sensors and actuators within a system or sub-system. In a CAN network, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted.
The PISO-CM200U is a very powerful and economic solution for an active CAN board, containing two CAN channels that cover a wide range of CAN applications. The 32-bit on-board microcontroller allows the filtering, pre-processing, and storage of CAN messages (with a timestamp), as well as real-time transmission of CAN messages, among many other features.
An added benefit is that custom CAN Bus applications can be developed using the PISO-CM200U library. When the PISO-CM200U is active, data exchange between the custom application and the CAN Bus firmware is performed via the memory mapping method on the PISO-CM200U.

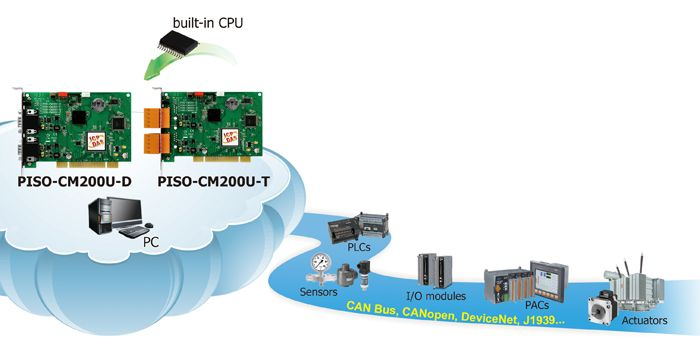

Applications
- DeviceNet, CANopen, CAN J1939, SDS (System Wide Network) protocol application.
- CAN bus communication application. .
- Industry automation
- Industrial Machinery
- Building Automation
- Food & Beverage
- Semiconductor Fabrication
- Control system
Click to view the Introduction of https://mctt.vn/can-bus-icp-das
Specifications
| Software |
| Driver |
Windows XP/7/8.1/10 (32-bit/64-bit) OS |
| SDK |
C#.Net, VB.Net, VC++.Net |
| LED Indicators |
| Status |
1 x CAN status
1 x Operating mode |
| PC Bus |
| Type |
Universal PCI, 5 V, 33 MHz, 32-bit, plug and play |
| Board No. |
Configurable via DIP switch |
| CAN |
| Controller |
Bosch C_CAN |
| Ports |
2 |
| Baud Rate |
10 k ~ 1 M bps |
| Isolation |
3000 VDC for DC-to-DC, 3000 Vrms for photo-couple |
| Terminal Resistor |
Jumper for 120 Ω terminal resistor |
| Power |
| Consumption |
800 mA @ 5 V |
| Mechanical |
| Dimensions (mm) |
150 x 22 x 121 (W x L x H) |
| Environment |
| Operating Temperature |
0 ~ +60 °C |
| Storage Temperature |
-20 ~ +70 °C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PISO-CM200U-D CR |
2-port Programmable CAN Universal PCI Card with 9-Pin D-sub Connector (RoHS) |
