PCI Express, 110 kS/s, 32-ch, 12-bit Multi-function Board (1 K word FIFO)

Liên hệ
Mô tả

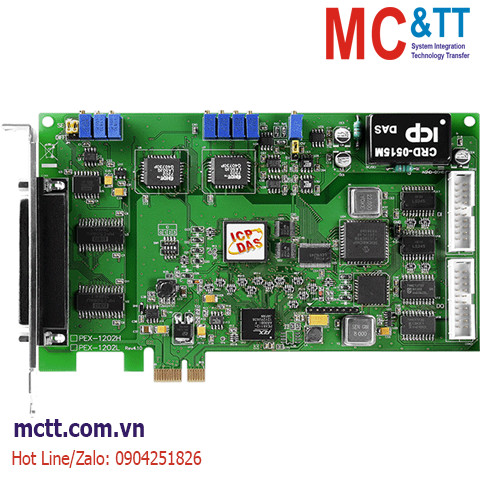

Card PCI Express 32 kênh AI 12 bits, 110 kS/s + 2 kênh AO +16 kênh vào/ra số DIO ICP DAS PEX-1202L CR

Features

  • PCI Express x1 Interface
  • 16-channel 5 V/TTL Digital Input
  • 16-channel 5 V/TTL Digital Output
  • Pull-high/Pull-low Jumpers for DI Channels
  • 12-bit, 32 Single-ended/16 Differential Analog Input channels
  • Three External Triggers: Pre-trigger, Middle-trigger, Post-trigger
  • 110 or 44 kS/s AD Sampling Rate
  • Supports Card ID (SMD Switch)

Introduction

The PEX-1202L is a family of high performance data acquisition board. They feature a continuous A/D acquisition function of up to 110 kHz for low gain under DOS and offer two 12-bit D/A output channels, 16 DI channels and 16 DO channels.

The PEX-1202L provides 32-channel single-ended or 16-channel differential AIs. The PEX-1202L features " MagicScan" function and Continuous Capture function. The PEX-1202L supports PCI Express bus. These cards add new designs of Card ID switch with which users can recognize the board by the ID via software when using two or more PEX-1202L cards in one computer. The pull-high/low jumpers of the card allow user to predefine the DI status instead of floating when the DI channels are unconnected or broken.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

ICP DAS PC-Based Multifunction Board Selection Guide

Model Name Bus D/A
Channel
A/D
Channel
A/D
Sampling
Rate
FIFO Size Software
Trigger
(Polling)
Channel Scan
(Pacer)
External
Triger
Interrupt
function

PEX-1202L PCI
Express
12-bit,
2-ch
12-bit,
32 S.E/16 Diff
110 kS./s 1 k V V V -
PCI-1202LU Universal
PCI
PEX-1202H PCI
Express
12-bit,
2-ch
12-bit,
32 S.E/16 Diff
44 kS./s 1 k V V V -
PEX-1202HU Universal
PCI
PCI-1602U Universal
PCI
12-bit,
2-ch
16-bit,
32 S.E/16 Diff
100 kS./s 8 k V V V -
PCI-1602FU Universal
PCI
12-bit,
2-ch
16-bit,
32 S.E/16 Diff
200 kS./s 8 k V V V -
PCI-1800LU Universal
PCI
12-bit,
2-ch
12-bit,
16 S.E/8 Diff
330 kS./s 1 k V V V -
PCI-1800HU Universal
PCI
12-bit,
2-ch
12-bit,
16 S.E/8 Diff
44 kS./s 1 k V V V -
PCI-1802LU Universal
PCI
12-bit,
2-ch
12-bit,
32 S.E/16 Diff
330 kS./s 8 k V V V -
PCI-1802HU Universal
PCI
12-bit,
2-ch
12-bit,
32 S.E/16 Diff
44 kS./s 8 k V V V -
PCI-822LU Universal
PCI
16-bit,
2-ch
12-bit,
32 S.E/16 Diff
250 kS./s 8 k V V V V Cost-effective
Programmable DIO
PCI-826LU Universal
PCI
16-bit,
2-ch
16-bit,
32 S.E/16 Diff
250 kS./s 8 k V V V V Cost-effective
Programmable DIO

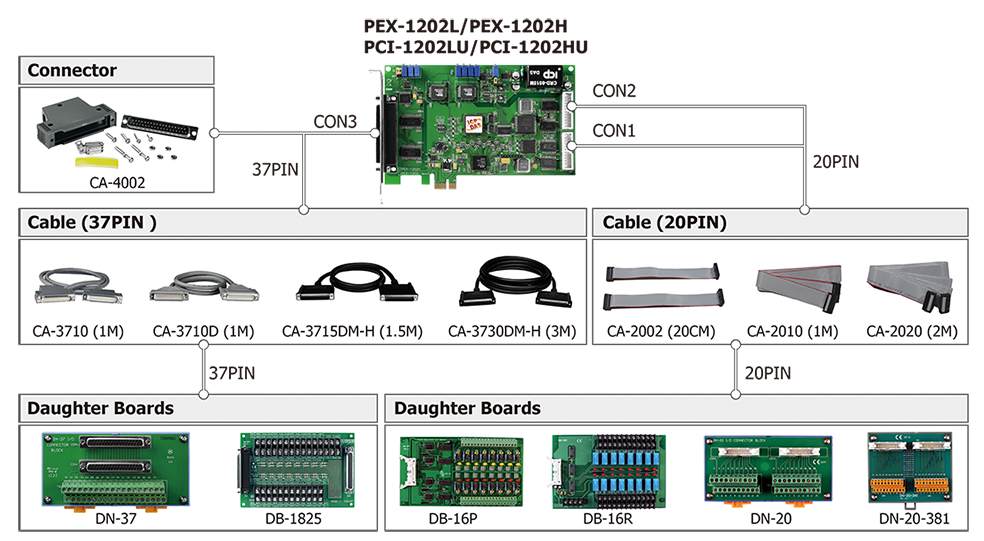

Accessories

Applications

  • High speed data acquisition system.
  • Process monitor and control.
  • Vibration analysis.
  • Digital pattern generator from digital I/O port.

Click to view the Introduction of https://mctt.vn/pci-express-icp-das

Specifications

Hardware
Card ID Yes (4-bit)
Connector Female DB37 x 1
20-pin Box header x 2
Analog Input
Channels 32 single-ended/16 differential
Range Gain: 0.5, 1, 2, 4, 8
Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V
Unipolar Range: 0 ~ 10 V, 0 ~ 5 V, 0 ~ 2.5 V, 0 ~ 1.25 V
Resolution 12-bit
Accuracy 0.1% of FSR ±1 LSB @ 25 °C, ±10 V
Sampling Rate 110 kS/s. Max.
Input Impedance 10 MΩ/6 Pf
Overvoltage Protection Continuous ±35 Vp-p
Zero Drift ±4 ppm/°C of FSR
FIFO Size 1024 samples
Trigger Mode Software, Internal programmable pacer, External (5 V/TTL compatible)
Data Transfer Polling
Analog Output
Channels 2
Range ±5 V, ±10 V
Resolution 12-bit
Accuracy 0.06% of FSR ±1 LSB @ 25 °C, ±10 V
Voltage Output Capability ±5 mA
Slew Rate 8.33 V/μs
Operation Mode Software
Digital Input
Channels 16
Type 5 V/TTL
ON Voltage Level 2.0 V Min.
OFF Voltage Level 0.8 V Max.
Response Speed 500 KHz (Typical)
Trigger Mode Static Update
Digital Output
Channels 16
Type 5 V/CMOS
Operation Mode Static Update
Load Voltage Logic 0: 0.1 V Max.
Logic 1: 4.4 V Min.
Load Current Sink: 6 mA @ 0.33 V
Source: 6 mA @ 4.77 V
Response Speed 500 KHz (Typical)
Timer/Counter/Frequency
Channels 3 (Independent x 1/Internal pacer x 1/External pacer x 1)
Type 5 V/TTL
Resolution 16-bit
Input Frequency 10 MHz Max.
Reference Clock Internal: 8 MHz
PC Bus
Type PCI Express x 1
Data Bus 16-bit
Power
Consumption 1300 mA @ +3.3 V
0 mA @ +12 V
Mechanical
Dimensions (mm) 100 x 162 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PEX-1202L     CR  PCI Express, 110 kS/s, 32-ch, 12-bit Multi-function Board (1 K word FIFO) (RoHS)
Includes one CA-4002 D-Sub connector
