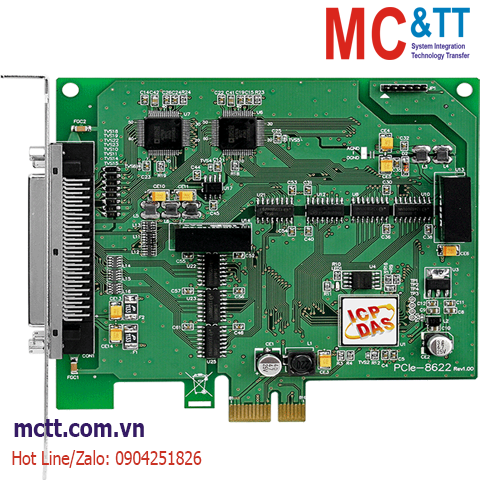

Card PCI Express 16 kênh AI 16 bit, 200 kS/s + 2 kênh AO + 12 kênh vào/ra số DIO ICP DAS PCIe-8622 CR
Features
- PCI Express x1 Interface, Full-profile
- 12-channel Isolated Digital Input
- 12-channel Isolated Digital Output
- 2-channel 16-bit Analog Output
- 16 Single-ended Analog Input channels
- Synchronous Sample and Hold
- Built-in MagicScan Controller
- Analog Input Range: ±10 V, ±5 V
- 16-bit, 200 kS/s Sampling Rate for each channel
- Hardware FIFO for Analog Input with a total of 2048 Samples
Introduction
The PCIe-8622 is a bus-type, isolated high-speed AD multifunction board with 16-bit DA and isolated DI/O. The simultaneously sampled AD offers a mix of up to 16 single-ended, 16-bit Analog Input channels with a 2 k Sample hardware FIFO and 2500 VDC bus-typed isolation protection. All channels feature a programmable input range of ±10 V or ±5 V with a sampling rate up to 200 kS/s per channel.
The PCIe-8622 supports the PCI Express bus and provides 12 isolated Digital Input channels, 12 isolated Digital Output channels and 2 Analog Output channels at 16-bit resolution. The board has a single high-density connector that reduces the amount of space required for installation.

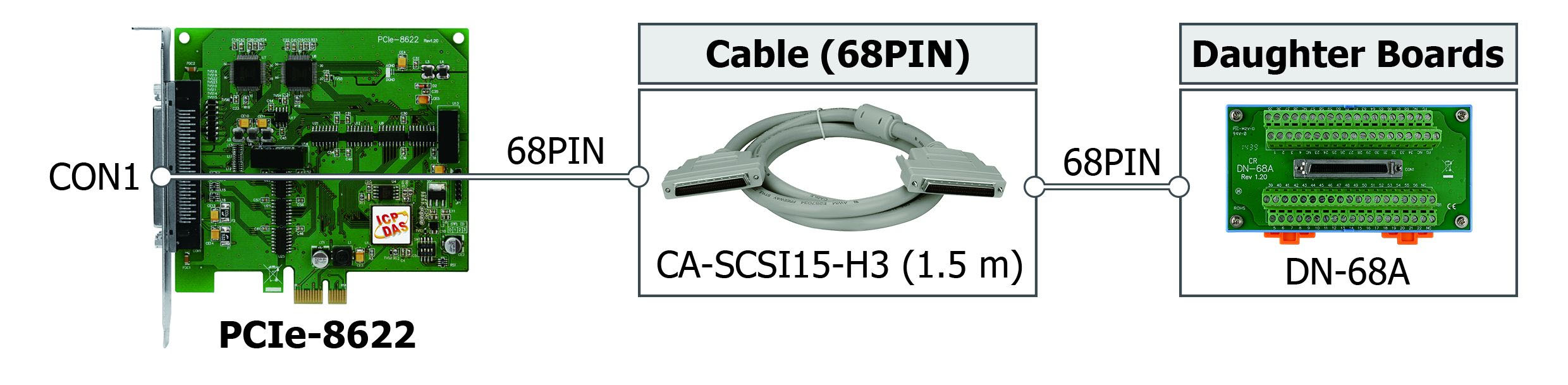

Accessories
Applications
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.
Click to view the Introduction of https://mctt.vn/pci-express-icp-das
Specifications
| Hardware |
| Card ID |
Yes (4-bit) |
| Connector |
SCSI II 68-pin x 1 |
| Analog Input |
| Channels |
16 single-ended (Simultaneously) |
| Range |
Gain: 1, 2 Bipolar Range: ±10 V, ±5 V |
| Resolution |
16-bit |
| Accuracy |
0.05 % of FSR ±1 LSB @ 25 °C, ±10 V |
| Sampling Rate |
200 kS/s |
| Input Impedance |
10,000 MΩ/4 pF |
| Overvoltage Protection |
Continuous ±35 Vp-p |
| FIFO Size |
2048 samples |
| Trigger Mode |
Software, Pacer, External |
| Isolation |
2500 VDC (Bus-type) |
| Data Transfer |
Polling, Interrupt, DMA |
| Analog Output |
| Channels |
2 |
| Range |
±5 V, ±10 V |
| Resolution |
16-bit |
| Accuracy |
±10 LSB |
| Voltage Output Capability |
±5 mA |
| Slew Rate |
2.8 V/µs |
| Operation Mode |
Static update |
| Digital Input |
| Channels |
12 |
| Type |
5 V/TTL |
| ON Voltage Level |
2.0 V Min. |
| OFF Voltage Level |
0.8 V Max. |
| Response Speed |
1.0 MHz (Typical) |
| Trigger Mode |
Static Update |
| Data Transfer |
Polling |
| Isolation |
2500 VDC |
| Digital Output |
| Channels |
12 |
| Type |
5 V/CMOS |
| Operation Mode |
Static Update |
| Load Current |
Sink: 6 mA @ 0.33 V
Source: 6 mA @ 4.77 V |
| Response Speed |
1.0 MHz (Typical) |
| Isolation |
2500 VDC |
| DO Readback |
Yes |
| Timer/Counter/Frequency |
| Channels |
2 |
| PC Bus |
| Type |
PCI Express x 1 |
| Data Bus |
32-bit |
| Power |
| Consumption |
600 mA @ +3.3 V
250 mA @ +12 V |
| Mechanical |
| Dimensions (mm) |
120 x 125 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PCIe-8622 CR |
PCI Express, 200 kS/s, 16-ch, 16-bit Simultaneously Sampled AI Board with 12-ch Isolated DI (RoHS) |
