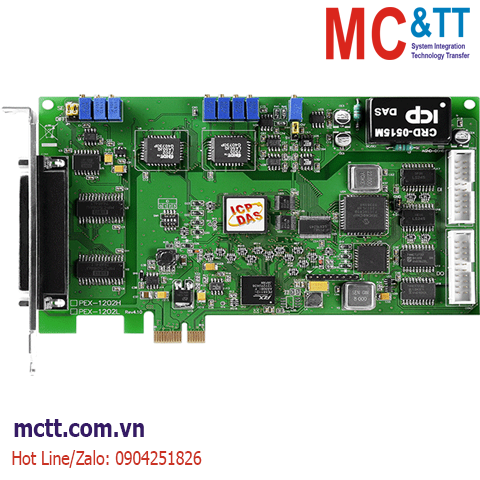

Card PCI Express 32 kênh AI 12 bits, 44 kS/s + 2 kênh AO +16 kênh vào/ra số DIO ICP DAS PEX-1202H CR

Mã sản phẩm: PEX-1202H

Thương hiệu: ICP DAS

Tình trạng:

PCI Express, 44 kS/s, 32-ch, 12-bit Multi-function Board (1 K word FIFO)

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

GIẢI PHÁP

Mô tả

Mô tả

Card PCI Express 32 kênh AI 12 bits, 44 kS/s + 2 kênh AO +16 kênh vào/ra số DIO ICP DAS PEX-1202H CR

Features

PCI Express x1 Interface
16-channel 5 V/TTL Digital Input
16-channel 5 V/TTL Digital Output
Pull-high/Pull-low Jumpers for DI Channels
12-bit, 32 Single-ended/16 Differential Analog Input channels
Three External Triggers: Pre-trigger, Middle-trigger, Post-trigger
110 or 44 kS/s AD Sampling Rate
Supports Card ID (SMD Switch)

Introduction

The PEX-1202H is a family of high performance data acquisition board. They feature a continuous A/D acquisition function of up to 44 kHz for high gain under DOS and offer two 12-bit D/A output channels, 16 DI channels and 16 DO channels.

The PEX-1202H provides 32-channel single-ended or 16-channel differential AIs. The PEX-1202H features " MagicScan" function and Continuous Capture function. The PEX-1202H supports PCI Express bus. These cards add new designs of Card ID switch with which users can recognize the board by the ID via software when using two or more PEX-1202H cards in one computer. The pull-high/low jumpers of the card allow user to predefine the DI status instead of floating when the DI channels are unconnected or broken.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications..

ICP DAS PC-Based Multifunction Board Selection Guide
Model Name	Bus	D/A Channel	A/D Channel	A/D Sampling Rate	FIFO Size	Software Trigger (Polling)	Channel Scan (Pacer)	External Triger	Interrupt function
PEX-1202L	PCI Express	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	110 kS./s	1 k	V	V	V	-
PCI-1202LU	Universal PCI	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	110 kS./s	1 k	V	V	V	-
PEX-1202H	PCI Express	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	44 kS./s	1 k	V	V	V	-
PEX-1202HU	Universal PCI	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	44 kS./s	1 k	V	V	V	-
PCI-1602U	Universal PCI	12-bit, 2-ch	16-bit, 32 S.E/16 Diff	100 kS./s	8 k	V	V	V	-
PCI-1602FU	Universal PCI	12-bit, 2-ch	16-bit, 32 S.E/16 Diff	200 kS./s	8 k	V	V	V	-
PCI-1800LU	Universal PCI	12-bit, 2-ch	12-bit, 16 S.E/8 Diff	330 kS./s	1 k	V	V	V	-
PCI-1800HU	Universal PCI	12-bit, 2-ch	12-bit, 16 S.E/8 Diff	44 kS./s	1 k	V	V	V	-
PCI-1802LU	Universal PCI	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	330 kS./s	8 k	V	V	V	-
PCI-1802HU	Universal PCI	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	44 kS./s	8 k	V	V	V	-
PCI-822LU	Universal PCI	16-bit, 2-ch	12-bit, 32 S.E/16 Diff	250 kS./s	8 k	V	V	V	V	Cost-effective Programmable DIO
PCI-826LU	Universal PCI	16-bit, 2-ch	16-bit, 32 S.E/16 Diff	250 kS./s	8 k	V	V	V	V	Cost-effective Programmable DIO

Accessories

Applications

High speed data acquisition system.
Process monitor and control.
Vibration analysis.
Digital pattern generator from digital I/O port.

Click to view the Introduction of https://mctt.vn/pci-express-icp-das

Specifications

Hardware
Card ID	Yes (4-bit)
Connector	Female DB37 x 1 20-pin Box header x 2

Analog Input
Channels	32 single-ended/16 differential
Range	Gain: 0.5, 1, 5, 10, 50, 100, 500 ,1000 Bipolar Range: ±10 V, ±5 V, ±1 V, ±0.5 V, ±0.1 V, ±0.05 V, ±0.01 V, ±0.005 V Unipolar Range: 0 ~ 10 V, 0 ~ 1 V, 0 ~ 0.1 V, 0 ~ 0.01 V
Resolution	12-bit
Accuracy	0.1% of FSR ±1 LSB @ 25 °C, ±10 V
Sampling Rate	44 kS/s. Max.
Input Impedance	10 MΩ/6 pF
Overvoltage Protection	Continuous ±35 Vp-p
Zero Drift	±4 ppm/°C of FSR
FIFO Size	1024 samples
Trigger Mode	Software, Internal programmable pacer, External (5 V/TTL)
Data Transfer	Polling

Analog Output
Channels	2
Range	±5 V, ±10 V
Resolution	12-bit
Accuracy	0.06% of FSR ±1 LSB @ 25 °C, ±10 V
Voltage Output Capability	±5 mA
Slew Rate	8.33 V/μs
Operation Mode	Software

Digital Input
Channels	16
Type	5 V/TTL
ON Voltage Level	2.0 V Min.
OFF Voltage Level	0.8 V Max.
Response Speed	500 KHz
Trigger Mode	Static Update

Digital Output
Channels	16
Type	5 V/CMOS
Operation Mode	Static Update
Load Voltage	Logic 0: 0.1 V Max. Logic 1: 4.4 V Min.
Load Current	Sink: 6 mA @ 0.33 V Source: 6 mA @ 4.77 V
Response Speed	500 KHz (Typical)

Timer/Counter/Frequency
Channels	3 (Independent x 1/Internal pacer x 1/External pacer x 1)
Type	5 V/TTL
Resolution	16-bit
Input Frequency	10 MHz Max.
Reference Clock	Internal: 8 MHz

PC Bus
Type	PCI Express x 1
Data Bus	16-bit

Power
Consumption	1300 mA @ +3.3 V 0 mA @ +12 V

Mechanical
Dimensions (mm)	100 x 162 x 22 (W x L x D)

Environment
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PEX-1202H CR

PCI Express, 44 kS/s, 32-ch, 12-bit Multi-function Board (1 K word FIFO) (RoHS)
Includes one CA-4002 D-Sub connector
