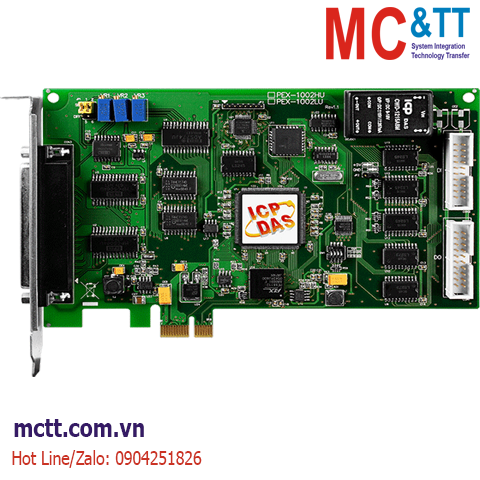

Card PCI Express 32 kênh AI 12 bits, 110 kS/s + 3 kênh Timer/Counter/Frequency +16 kênh vào/ra số DIO ICP DAS PEX-1002L CR

Chia sẻ:
Mã sản phẩm: PEX-1002L
Thương hiệu: ICP DAS
Tình trạng:

PCI Express, 110 kS/s, 32-ch, 12-bit Multi-function Board

Liên hệ
Mô tả

Card PCI Express 32 kênh AI 12 bits, 110 kS/s + 3 kênh Timer/Counter/Frequency +16 kênh vào/ra số DIO ICP DAS PEX-1002L CR

Features

  • PCI Express x1 Interface
  • Supports Card ID (SMD Switch)
  • 16-channel 5 V/TTL Digital Input
  • 16-channel 5 V/TTL Digital Output
  • Pull-high/Pull-low Jumpers for DI Channels
  • 12-bit, 32 Single-ended/16 Differential Analog Input channels
  • Internal/External Trigger
  • 110 or 44 kS/s AD Sampling Rate

Introduction

The PEX-1002L supports PCI Express bus. These cards are a family of A/D board and features low-gain 110 kS/s AI. It provides 12-bit 32 single-ended or 16 differential AIs, 16 DI and 16 DO channels.

The PEX-1002L also adds a Card ID switch on-board. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PEX-1002L cards in one computer. The PEX-1002L provide The pull-high/ pull-low resisters allow the DI status to be specified when the DI channels are unconnected; the DI status will remain in high or low status other than floating.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

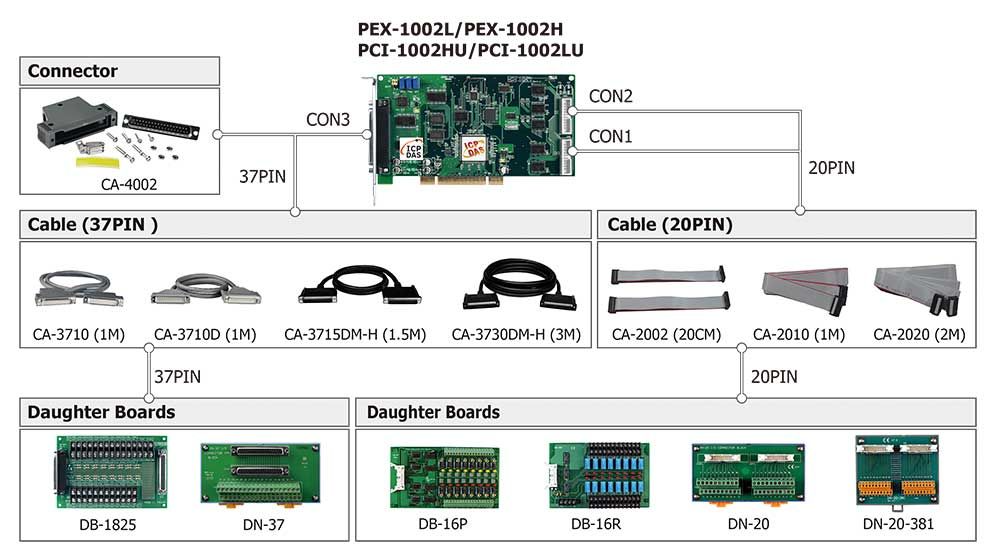

Accessories

Applications

  • High speed data acquisition system.
  • Process monitor and control.
  • Vibration analysis.
  • Digital pattern generator from digital I/O port.

Click to view the Introduction of https://mctt.vn/pci-express-icp-das

Specifications

Hardware
Card ID Yes (4-bit)
Connector Female DB37 x 1
20-pin box header x 2
Analog Input
Channels 32 single-ended/16 differential
Range Gain: 1, 2, 4, 8
Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V
Resolution 12-bit
Accuracy 0.01% of FSR ±1 LSB @ 25 °C, ±10 V
Sampling Rate 110 kS/s. Max.
Input Impedance 10 MΩ/6 Pf
Overvoltage Protection Continuous ±35 Vp-p
Zero Drift ±4 ppm/°C of FSR
Trigger Mode Software, Internal programmable pacer, External (5 V/TTL)
Data Transfer Polling, Interrupt
Digital Input
Channels 16
Type 5 V/TTL
ON Voltage Level 2.0 V Min.
OFF Voltage Level 0.8 V Max.
Response Speed 500 KHz
Trigger Mode Static Update
Digital Output
Channels 16
Type 5 V/TTL
Operation Mode Static Update
Load Voltage Logic 0: 0.4 V Max.
Logic 1: 2.4 V Min.
Load Current Sink: 2.4 mA
Source: 0.8 mA
Response Speed 500 KHz (Typical)
Timer/Counter/Frequency
Channels 3 (Independent x 1/Internal pacer x 1/External pacer x 1)
Type 5 V/TTL
Resolution 16-bit
Input Frequency 10 MHz Max.
Reference Clock Internal: 4 MHz
PC Bus
Type PCI Express x 1
Data Bus 16-bit
Power
Consumption 900 mA @ +3.3 V
350 mA @ +12 V
Mechanical
Dimensions (mm) 110 x 167 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PEX-1002L     CR  PCI Express, 110 kS/s, 32-ch, 12-bit Multi-function Board (RoHS)
Includes one CA-4002 D-Sub connector
