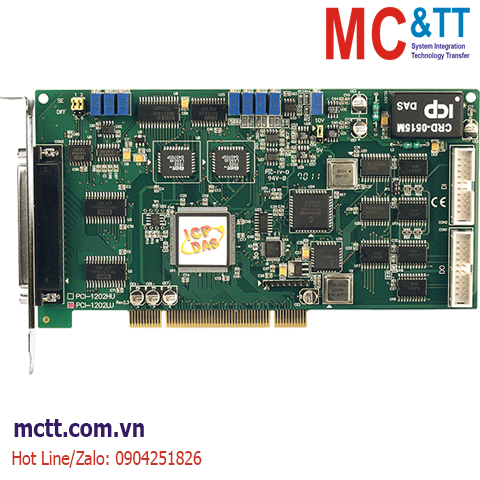

Card PCI 32 kênh AI 12 bits 110 kS/s + 2 kênh AO + 16 kênh DI/DO + 3 kênh Timer/Counter/Frequency ICP DAS PCI-1202LU/8K CR

Mã sản phẩm: PCI-1202LU/8K

Thương hiệu: ICP DAS

Tình trạng:

Universal PCI, 110 kS/s, 32-ch, 12-bit AI Multifunction Board (8 K word FIFO)

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

GIẢI PHÁP

Mô tả

Mô tả

Card PCI 32 kênh AI 12 bits 110 kS/s + 2 kênh AO + 16 kênh DI/DO + 3 kênh Timer/Counter/Frequency ICP DAS PCI-1202LU/8K CR

Features

Universal PCI (3.3 V/5 V) Interface
Supports Card ID (SMD Switch)
2-channel, 16-bit Analog Output
Built-in 1024 samples FIFO for AIs
16-channel 5 V/TTL Digital Output
16-channel 5 V/TTL Digital Input
- Pull-high and Pull-low Resistors for DI Channels
32 Single-ended/16 Differential Analog Input Channels
- 12-bit AD Converter, 110kHz Sampling Rate
- Built-in MagicScan Controller
- Internal Trigger: Software-trigger, Pacer-trigger
- External Trigger: Post-trigger, Pre-trigger, Middle-trigger
High-speed data transfer rate up to 2.1 M words/sec

Introduction

The PCI-1202 series is a family of high performance data acquisition boards that feature continuous gap-free data acquisition in DOS at 110 kHz for low gain. The PCI-1202 family has the same hardware architecture as the PCI-1802, and provides 32-channel single-ended or 16-channel differential Analog Inputs. As with the PCI-1802 family, the PCI-1202 series features both the Magic Scan and Continuous Capture functions.

The PCI-1202LU Universal PCI card supports both the 3.3 V and the 5 V PCI bus. The PCI-1202LU cards are fully compatible with PCI-1202L cards and are designed as direct replacements without requiring any modification to the software or the driver, with the main difference being the addition of DI pull-high/low resistors and a Card ID switch on the PCI-1202LU.

The PCI-1202LU/8K cards are equipped with an 8K-sample hardware FIFO that reduces data overflow issues in multi-tasking environments such as Windows and Linux.

ICP DAS PC-Based Multifunction Board Selection Guide
Model Name	Bus	D/A Channel	A/D Channel	A/D Sampling Rate	FIFO Size	Software Trigger (Polling)	Channel Scan (Pacer)	External Triger	Interrupt function
PEX-1202L	PCI Express	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	110 kS./s	1 k	V	V	V	-
PCI-1202LU	Universal PCI	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	110 kS./s	1 k	V	V	V	-
PEX-1202H	PCI Express	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	44 kS./s	1 k	V	V	V	-
PEX-1202HU	Universal PCI	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	44 kS./s	1 k	V	V	V	-
PCI-1602U	Universal PCI	12-bit, 2-ch	16-bit, 32 S.E/16 Diff	100 kS./s	8 k	V	V	V	-
PCI-1602FU	Universal PCI	12-bit, 2-ch	16-bit, 32 S.E/16 Diff	200 kS./s	8 k	V	V	V	-
PCI-1800LU	Universal PCI	12-bit, 2-ch	12-bit, 16 S.E/8 Diff	330 kS./s	1 k	V	V	V	-
PCI-1800HU	Universal PCI	12-bit, 2-ch	12-bit, 16 S.E/8 Diff	44 kS./s	1 k	V	V	V	-
PCI-1802LU	Universal PCI	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	330 kS./s	8 k	V	V	V	-
PCI-1802HU	Universal PCI	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	44 kS./s	8 k	V	V	V	-
PCI-822LU	Universal PCI	16-bit, 2-ch	12-bit, 32 S.E/16 Diff	250 kS./s	8 k	V	V	V	V	Cost-effective Programmable DIO
PCI-826LU	Universal PCI	16-bit, 2-ch	16-bit, 32 S.E/16 Diff	250 kS./s	8 k	V	V	V	V	Cost-effective Programmable DIO

Accessories

Applications

High speed data acquisition system.
Process monitor and control.
Vibration analysis.
Digital pattern generator from digital I/O port.

Click to view the Introduction of https://mctt.vn/pci-icp-das

Specifications

Hardware
Card ID	Yes (4-bit) for Version 4.0 or above
Connector	Female DB37 x 1 Male 20-bit ribbon x 2

Analog Input
Channels	32 single-ended/16 differential
Range	Gain: 0.5, 1, 2, 4, 8 Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V Unipolar Range: 0 ~ 10 V, 0 ~ 5 V, 0 ~ 2.5 V, 0 ~ 1.25 V
Resolution	12-bit
Accuracy	0.1% of FSR ±1 LSB @ 25 °C, ±10 V
Sampling Rate	110 kS/s. Max.
Input Impedance	10 MΩ/6 Pf
Overvoltage Protection	Continuous ±35 Vp-p
Zero Drift	±4 ppm/°C of FSR
FIFO Size	1024 samples
Trigger Mode	Software, Internal programmable pacer, External (5 V/TTL)
Data Transfer	Polling

Analog Output
Channels	2
Range	±5 V, ±10 V
Resolution	12-bit
Accuracy	0.06% of FSR ±1 LSB @ 25 °C, ±10 V
Response Time	1.0 MHz (Typical)
Voltage Output Capability	±5 mA
Slew Rate	8.33 V/μs
Operation Mode	Static Update

Digital Input
Channels	16
Type	5 V/TTL
ON Voltage Level	2.0 V Min.
OFF Voltage Level	0.8 V Max.
Response Speed	1.0 MHz (Typical)
Trigger Mode	Static Update

Digital Output
Channels	16
Type	5 V/TTL
Operation Mode	Static Update
Load Voltage	Logic 0: 0.4 V Max. Logic 1: 2.4 V Min.
Load Current	Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V
Response Speed	1.0 MHz (Typical)

Timer/Counter/Frequency
Channels	3 (Independent x 1/Internal pacer x 1/External pacer x 1)
Type	5 V/TTL
Resolution	16-bit
Input Frequency	10 MHz Max.
Reference Clock	Internal: 8 MHz

PC Bus
Type	3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus	16-bit

Power
Consumption	300 mA @ +5 V

Mechanical
Dimensions (mm)	105 x 196 x 22 (W x L x D)

Environment
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PCI-1202LU/8K CR

Universal PCI, 110 kS/s, 32-ch, 12-bit AI Multifunction Board (8 K word FIFO) (RoHS)
Includes one CA-4002 D-Sub connector
