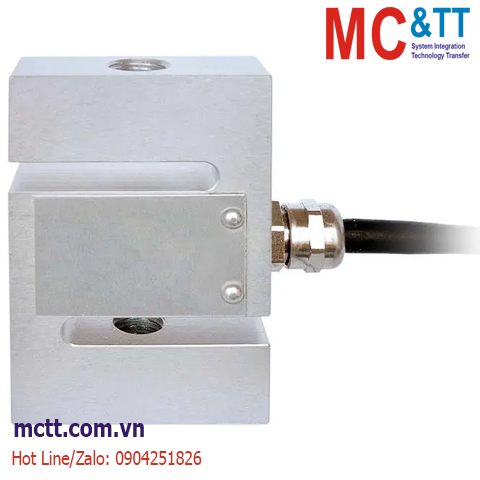

Cảm biến đo lực kéo và nén 0.02 - 50 kN Lorenz K-25

Chia sẻ:
Mã sản phẩm: K-25
Thương hiệu: Lorenz Messtechnik
Tình trạng:

S-Type Compression and Tension Force Transducer K-25

Liên hệ
Mô tả

Cảm biến đo lực kéo và nén 0.02 - 50 kN Lorenz K-25

The Model K-25 load cell features a high accuracy ‘S’ beam design, built for measuring bidirectional forces with a threaded load connection on each end. The K-25 S Beam Load Cell offers a compact design for platforms, silos, or scales. With high accuracy it is suitable for measuring both Tension and Compression forces


  • Economical
  • Tension & Compression
  • Accuracy Class: ±0.1% or ±0.2%
  • Overload Protection (option)
  • Length: 50.0mm - 65.0mm
  • Width: 20.0mm - 39.5mm
  • Height: 75.0mm - 85.0mm
  • Connection: 3m Integral Cable
  • Aluminum (≤ 1 kN)
  • Stainless Steel (≥ 50 kN)

K-25 - Specifications

Type S-Type
Application Tension & Compression
Full Scale 4.5 lbs
  220 lbs
  1120 lbs
Output 1 mV/V
  2 mV/V
Precision ±0.1 % FS
  ±0.2 % FS
Excitation 2 V - 12 V DC
IP Rating IP60
Min Temperature -10 °C
Max Temperature 70 °C


Type: K-25
Measuring Range: 0.02..50 kN
Accuracy Class: 0.1..0.2
Range of Application: E.g. for Tension/Compressive Testing Machines
PDF Datasheet: 080815c_K-25_en.pdf
PDF Operation Manual: Download
CAD Files: DXF
