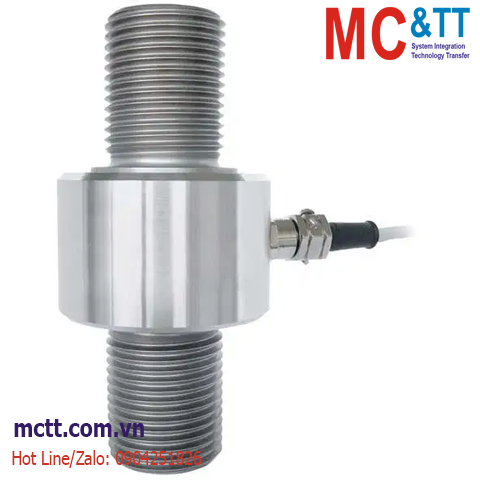

Cảm biến đo lực kéo và nén 0.5- 1000 kN Lorenz K-12
K-12, Miniature
Tension and Compression force measurements can be performed with K-12 Miniature load cell. With high precision, 0.5 to 1000 kN range, convenient load application via threaded pins with external winding and small dimensions
Features:
- Tension & Compression
- Accuracy: ±0.1% or ±0.25%
- Outer Diameter: 50.0mm - 130.0mm
- Height: 79.0mm - 300.0mm
- Connection: 3m Integral Cable
- Stainless Steel
K-12 - Specifications
| Type |
Rod Type |
| Application |
Tension & Compression |
| Full Scale |
0.5 kN |
| |
1 kN |
| |
2 kN |
| |
5 kN |
| |
10 kN |
| |
20 kN |
| |
50 kN |
| |
100 kN |
| |
200 kN |
| |
500 kN |
| |
1000 kN |
| Output |
1 mV/V |
| Precision |
±0.1 % FS |
| |
±0.25 % FS |
| Excitation |
2 V - 12 V DC |
| IP Rating |
IP67 |
| Min Temperature |
-10 °C |
| Max Temperature |
70 °C |
Download
| Type: |
K-12 |
| Measuring Range: |
0.5..1000 kN |
| Accuracy Class: |
0.1..0.25 |
| Range of Application: |
E.g. for Tension/Compressive Testing Machines or Survey of Actuating Forces |
| PDF Datasheet: |
080809b_K-12_en.pdf |
| PDF Operation Manual: |
Download |
| CAD Files: |
DXF
IGS; STP |
