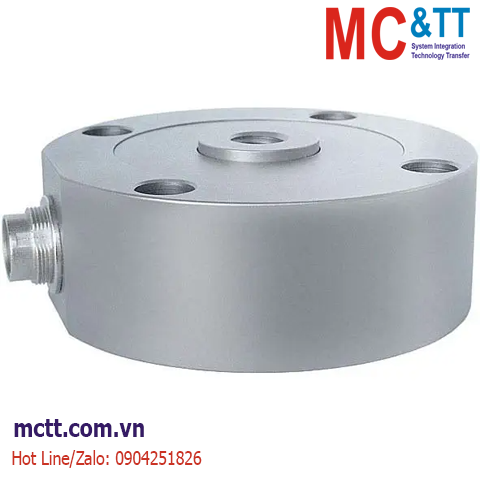

Cảm biến đo lực kéo và nén 0.5 - 2000 kN Lorenz K-11

Chia sẻ:
Mã sản phẩm: K-11
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Compression and tension force transducer K-11, for material testing machines, made of stainless steel aluminum produced & distributed by Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo lực kéo và nén 0.5 - 2000 kN Lorenz K-11

K-11, Material Tester

The K-11 Pancake Load Cell is designed for tension and compression applications. The unit has a small outer diameter and is capable of measuring both tension and compression forces. The load cell’s shear web design yields high performance and offers high resistance to extraneous forces such as bending, side loads, and torsion. With such a wide capacity range this model is well suited for both low capacity as well as high capacity applications.


  • Long-term Stability
  • Tension & Compression
  • Accuracy Class: 0.05% up to 1.0% F.S.
  • Mechanical Overload Protection (≤ 20 kN, option)
  • Outer Diameter: 90.0mm - 390.0mm
  • Inner Diameter: 60.0mm - 270.0mm
  • Height: 32.0mm - 117.0mm
  • Connection: 2m Integral Cable
  • Stainless Steel

K-11 - Specifications

Type Pancake
Application Tension & Compression
Full Scale 112 lbs
  220 lbs
  450 lbs
  1120 lbs
  2200 lbs
  4500 lbs
  11200 lbs
  22000 lbs
  45000 lbs
  112000 lbs
  225000 lbs
  450000 lbs
Output 2 mV/V
Precision ±0.05 % FS
  ±0.1 % FS
  ±0.2 % FS
  ±0.4 % FS
  ±0.5 % FS
  ±1.0 % FS
Excitation 2 V - 12 V DC
IP Rating IP52
Min Temperature 0 °C
Max Temperature 60 °C


Type: K-11
Measuring Range: 0.5..2000 kN
Accuracy Class: 0.05..1.0
Range of Application: E.g. for Material Testing Machines, Press-In Force Measurement,
Roll Force Applications ..
Suitable Connection Cable
(PDF Datasheet):

Connection cable, 3 m, with 6-pin female cable connector and free soldered ends
Connection cable, 3 m, with 6-pin female angle cable connector and free soldered ends

PDF Datasheet: 080817c_K-11_en.pdf
PDF Operation Manual: Download
CAD Files: DXF
