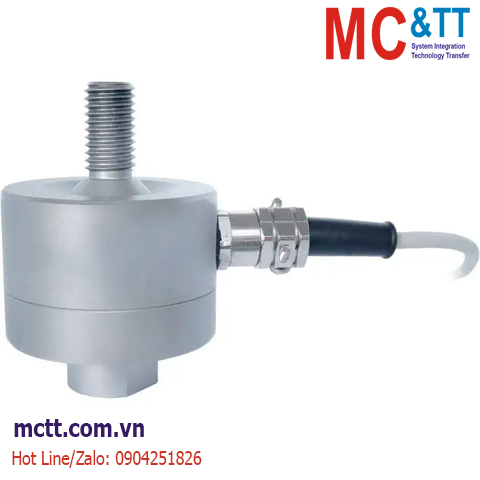

Cảm biến đo lực kéo và nén 0.5 - 200 kN Lorenz K-1427

Chia sẻ:
Mã sản phẩm: K-1427
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Compression and tension force sensor K-1427, made of stainless steel, protected against temporary immersion in water from Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo lực kéo và nén 0.5 - 200 kN Lorenz K-1427

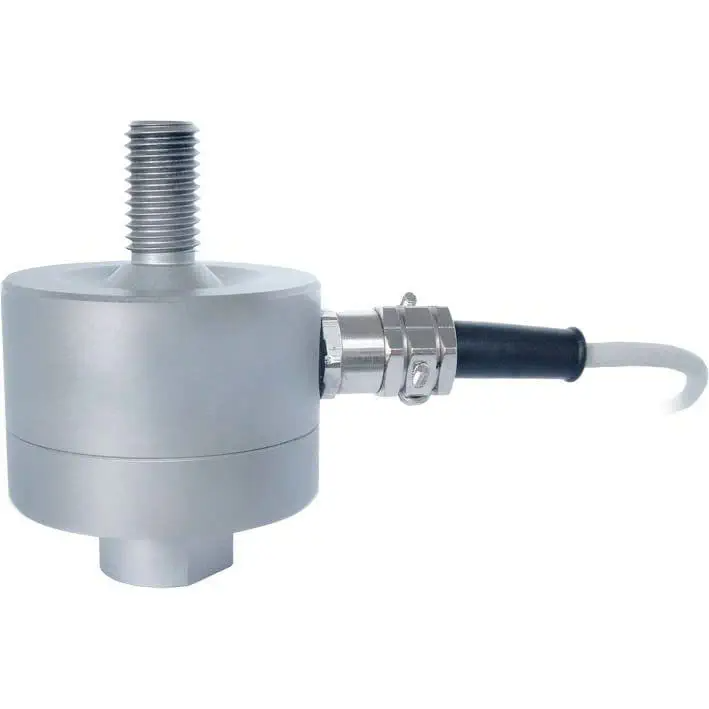

K-1427, Force Sensor
The Model K-1427 is a Tension and Compression Load Cell built for Bending, Press, or Inline applications. This miniature load cell is welded with stainless steel construction and is designed to eliminate or reduce to a minimum effects of..


  • Tension & Compression
  • Accuracy Class: ±0.1% or ±0.25% F.S.
  • Outer Diameter: 50.0mm - 155.0mm
  • Height: 72.0mm - 232.0mm
  • Connection: 3m Integral Cable
  • Stainless Steel

K-1427 - Specifications

Type Rod Type
Application Tension & Compression
Full Scale 112 lbs
  220 lbs
  450 lbs
  1120 lbs
  2200 lbs
  4500 lbs
  11200 lbs
  22000 lbs
  45000 lbs
Output 2 mV/V
Precision ±0.1 % FS
  ±0.25 % FS
Excitation 2 V - 12 V DC
IP Rating IP67
Min Temperature -10 °C
Max Temperature 70 °C


Type: K-1427
Measuring Range: 0.5..200 kN
Accuracy Class: 0.1..0.25
Range of Application: E.g. for Material Testing Machines or Press-In Force Measurement
PDF Datasheet: 080813b_K-1427_en.pdf
PDF Operation Manual: Download
CAD Files: DXF
