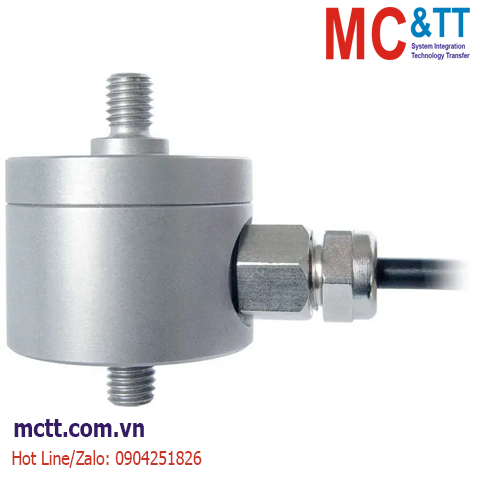

Cảm biến đo lực kéo và nén 100 - 2000 N Lorenz K-1563

Chia sẻ:
Mã sản phẩm: K-1563
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Compression & Tension Force Sensor K-1563 - Lorenz Messtechnik

Liên hệ
Mô tả

Cảm biến đo lực kéo và nén 100 - 2000 N Lorenz K-1563

K-1563, General Purpose
The K-1563 is a Tension and Compression Load Cell built for Testing, Press, or Inline applications and offers high accuracy and high stiffness. It is a High-Precision Load Cell with a very robust construction available in Stainless Steel.


  • Tension & compression
  • Accuracy Class: ±0.15% or ±0.3%
  • Outer Diameter: 25.0mm - 38.0mm
  • Height: 33.8 mm - 48.0mm
  • Connection: 3m Integral Cable
  • Stainless Steel

K-1563 - Specifications

Type Rod Type
Application Tension & Compression
Full Scale 22 lbs
  45 lbs
  112 lbs
  220 lbs
  450 lbs
Output 2 mV/V
Precision ±0.15 % FS
  ±0.3 % FS
Excitation 2 V - 12 V DC
IP Rating IP67
Min Temperature -10 °C
Max Temperature 70 °C


Type: K-1563
Measuring Range: 100..2000 N
Accuracy Class: 0.15..0.3
Range of Application: E.g. for Material Testing or Rope Force Measuring
PDF Datasheet: 080807d_K-1563_en.pdf
PDF Operation Manual: Download
