Hardware Features & Performance |
|
Model |

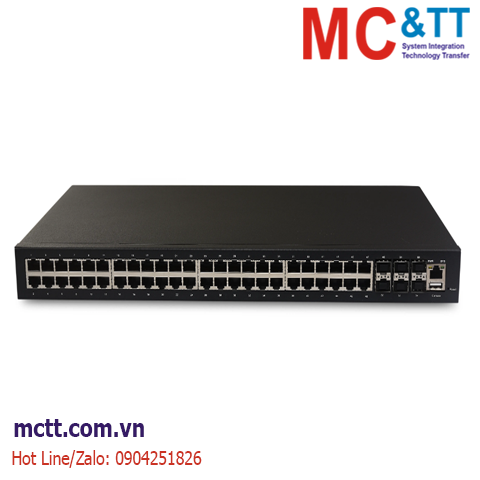

JHA-SW6048MGH |
|
General |
Standard and Protocols |
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX/FX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X
IEEE 802.3ae 10GBASE-SR/LR IEEE 802.3av GVRP
IEEE 802.3x Flow control
IEEE 802.3ad Link Aggregation
IEEE 802.1v Protocol VLAN
IEEE 802.1d Spanning Tree Protocol (STP)
IEEE 802.1s Rapid Spanning Tree (RSTP)
IEEE 802.1w Multiple Spanning Tree (MSTP)
IEEE 802.1q VLANs / VLAN tagging
IEEE 802.1x Network Login Security
IEEE 802.1p QoS |
|
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF
10GBASE-LR
10GBASE-SR |
|
|
Interfaces |
48 10/100/1000Mbps RJ45 ports +6 10G SFP+Slots
1 RJ45 Console Port
1 Micro-USB Console Port
1 RJ45 out-of-band Management Port
1 USB 2.0 Storage Port |
|
Performance |
Switching Capacity |
216Gbps |
|
Packet Forwarding Rate |
190.5Mpps |
|
MAC Address Table |
32K |
|
Jumbo Frame |
12KB |
|
Packet Butter |
32Mbit |
|
Physical& Environment |
Certification |
CE, FCC |
|
Power Supply |
100-240V AC, 50/60Hz |
|
Max Power Consumption |
58.82W (220V/50Hz) |
|
Max Heat Dissipation |
220.69 BTU/h |
|
Dimensions (W × D × H) |
17.3 × 16.5 × 1.7 in. (440 × 250 × 44 mm) |
|
Fan Quantity |
2 removable fan module |
|
Operating Temperature |
0°C~50°C (32°F~104°F) |
|
Storage Temperature |
-40°C~70°C (-40°F~158°F) |
|
Operating Humidity |
10% ~ 90%RH, non-condensing |
|
Storage Humidity |
5%~90%RH, non-condensing |
|
Software Features |
|
L3 Features |
-L3 Routing
*128 IPv4 Interface entries
*256 IPv4 Static Routing entries
*8K IPv4 Dynamic Routing entries
-RIP v1, v2
-OSPF v1, v2，V3
-IGMP v1, v2, v3 |
-Multicast Routing
*Static Multicast Route
*PIM-DM/SM
-ARP Proxy
-DHCP Server/Relay
-VRRP
-BFD |
|
L2 Features |
-Link Aggregation
*static link aggregation
*802.3ad LACP
*Up to 64 aggregation groups, containing 8 ports per group
-Spanning Tree Protocol
*802.1D STP
*802.1w RSTP
*802.1s MSTP
*32 MSTP Instance
*STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect |
-Loopback Detection
-Flow Control
*802.3x Flow Control
-Port Mirroring
*One-to-One
*Many-to-One
*Flow-Based
*Tx/Rx/Both
-LLDP, LLDP-MED |
|
L2 Multicast |
-1024 IGMP groups
-IGMP Snooping
*IGMP v1/v2/v3 Snooping
*IGMP Fast Leave
*MVR
*IGMP Snooping Querier
*Limited IP Multicast
*Static Multicast Forwarding |
-MLD Snooping
*MLD v1/v2 Snooping
*MLD Snooping Querier
*Fast Leave
*Limited IP Multicast
*Static Multicast Forwarding |
|
VLAN |
-VLAN Group
*4K VLAN Groups
-802.1Q tag VLAN
-MAC VLAN
-Protocol VLAN |
-VLAN VPN (QinQ)
-GVRP
-Private VLAN |
|
QoS |
-Class of Service
*Port Priority
*802.1p CoS/DSCP priority
*8 Priority Queues
*Queue Schedule Mode
-Bandwidth Control
*Port/Flow based Rating Limiting
*Storm Control |
-Diffserv
*Diffserv Class
*Diffserv Policy
*Diffserv Service
-Auto-VoIP
-Voice VLAN |
|
ACL |
-Supports up to 3328 entries
-MAC ACL
*Source MAC
*Destination MAC
*VLAN ID
*User Priority
*EtherType
-Standard IP ACL
*Source IP
*Destination IP
-Time based ACL |
-Extended IP ACL
*Source IP
*Destination IP
*Fragment
*IP Protocol
*TCP Flag
*TCP/UDP Port
*DSCP/IP TOS |
|
Security |
-AAA
-DHCP Snooping
-IP-MAC-Port Binding:Up to 32768 entries
-ARP Inspection:Up to 32768 entries
-IP Source Guard:Up to 1020 entries
-Static/Dynamic Port Security
-Up to 64 MAC addresses per port
-Broadcast/Multicast/Unicast Storm Control
*kbps/ratio/pps control mode
-IP/Port/MAC based access control
-DoS Defend |
-802.1X
*Port based authentication
*MAC(Host) based authentication
*Guest VLAN
*Support Radius authentication and accountability
-Port Isolation
-MAC Filtering
-Secure web management through HTTPS with SSLv3/TLS1.0
-Secure Command Line Interface(CLI) management with SSHv1/SSHv2 |
|
Management |
-Web-based GUI
-Command Line Interface(CLI) through console port, telnet
-SNMPv1/v2c/v3
-SNMP Trap/Inform
-RMON (1,2,3,9 groups)
-DHCP Option82 |
-CPU Monitoring
-Cable Diagnostics
-Access Control
-SNTP
-System Log
-Dual Image
-IPv6 Management
-PPPoE Circuit ID
-HTTP/TFTP File Transfer |
|
MIBs |
-MIB II (RFC1213)
-Interface MIB (RFC2233)
-Ethernet Interface MIB (RFC1643)
-Bridge MIB (RFC1493)
-P/Q-Bridge MIB (RFC2674)
-RMON MIB (RFC2819) |
-RMON2 MIB (RFC2021)
-Radius Accounting Client MIB (RFC2620)
-Radius Authentication Client MIB (RFC2618)
-Remote Ping, Traceroute MIB (RFC2925)
-Support JHA private MIBs |
