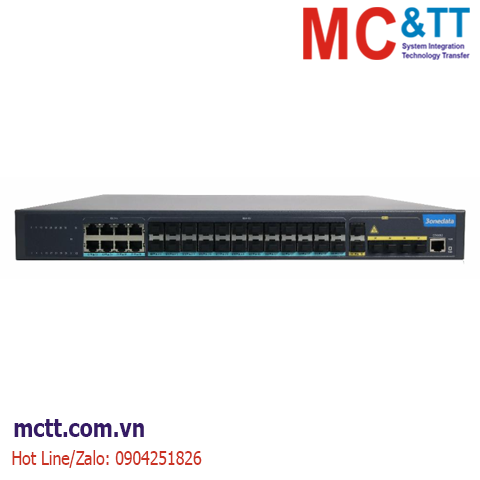

Switch quản lý Layer 3 với 6 cổng 10G SFP+ + 24 cổng Gigabit SFP + 8 cổng Gigabit Ethernet 3Onedata ICS5000-C8GT24GS6XS

Mã sản phẩm: ICS5000-C8GT24GS6XS

Thương hiệu: 3onedata

Tình trạng:

19 inch 1U rack mounted Layer 3 Ethernet switch

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

GIẢI PHÁP

Mô tả

Mô tả

Switch quản lý Layer 3 với 6 cổng 10G SFP+ + 24 cổng Gigabit SFP + 8 cổng Gigabit Ethernet 3Onedata ICS5000-C8GT24GS6XS

The ICS5000-C8GT24GS6XS product adopts the industry's advanced hardware architecture. On the basic of providing high-performance L2/L3/L4 line speed switching services, it further integrates various network services such as IPv6 and MPLS VPN network security, and combines multiple high reliability technologies such as uninterrupted upgrade, link detection, and redundancy protection to ensure the longest uninterrupted communication capability of the network. It can be widely used in safe cities, intelligent transportation, high-speed tunnels and other fields.

Tính năng

Supports STP/RSTP/MSTP protocol, support redundant protection mechanisms such as ERPS protocol
Supports static routing, RIP, OSPF, BGP, IS-IS, and BEIGRP routing protocols
Advanced hardware architecture design, hardware implementation for hierarchical scheduling and protection of messages, support for preventing attacks on devices such as DoS, TCP SYN Flood, UDP Flood, broadcast storm, and high traffic
Supports input voltage of 100-240VAC
Supports wide temperature operation from -10 ~ 50 ℃

Thông số kỹ thuật

Standards and protocols	10Base-T, following IEEE 802.3 100Base-TX, following IEEE 802.3u 1000Base-T, following IEEE 802.3ab 1000Base X, following IEEE 802.3z 10GBase X, following IEEE802.3ae Spanning tree, following IEEE 802.1D Fast spanning tree, following IEEE 802.1w Multiple spanning trees, following IEEE 802.1s Service, following IEEE 802.1p VLAN, following IEEE 802.1Q Flow control, following IEEE 802.3x Asymmetric flow control, following IEEE 802.3z Link aggregation, following IEEE 802.3ad
MAC exchange	Supports static configuration and dynamic learning of MAC addresses Support for viewing and clearing MAC addresses MAC address aging time configurable Support MAC address learning quantity limit Support MAC address filtering function Supports black hole MAC table entries Support IEEE 802.1AE MacSec security control
VLAN	Support 4K VLAN entries Support GVRP Support 1:1 and N:1 VLAN Mapping Support basic QinQ function Supports flexible QinQ functionality Support Private VLAN
STP	Supports 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP) Supports BPDU protection, root protection, and loop protection
Multicast	Supports IGMP v1/v2/v3 Supports IGMP Snooping Supports IGMP Fast Leave Support multicast group policies and limit the number of multicast groups Support multicast traffic replication across VLANs Supports PIM-SM, PIM-DM
IPv4	Support static routing, RIP, OSPF, BGP, IS-IS, BEIGRP Support policy routing Support equivalent routing for load balancing Support BFD for OSPF, BGP
IPv6	Support ICMPv6, DHCPv6, ACLv6, IPv6 Telnet Support IPv6 neighbor discovery Support Path MTU discovery Support MLD v1/v2 Support MLD Snooping Support IPv6 static routing, RIPng, OSPFv3, BGP4+ Support manual tunnels, ISATAP tunnels, and 6to4 tunnels
MCR	Support MCE functionality
MPLS VPN	Support LDP protocol support for MCE P/PE functional requirements supporting MPLS VPN Support MPLS TE Support MPLS OAM
QoS	Support traffic classification based on L2/L3/L4 protocol header fields Support CAR traffic restriction Support 802.1P/DSCP priority re labeling Support queue scheduling methods such as SP, WRR, SP+WRR, etc Supports congestion avoidance mechanisms such as Tail-Drop and WRED Support traffic supervision and traffic shaping Support Ingress and Egress ACLs, support matching L2, L3, L4, and IP quintuples for replication, forwarding, and discarding Support Hash same source and same host load balancing to ensure session integrity of traffic output
Safety Features	Support ACL flow recognition and filtering security mechanism based on L2/L3/L4 Support anti DDoS attacks, TCP SYN Flood attacks, UDP Flood attacks, etc Supports suppression of multicast, broadcast, and unknown unicast messages Supports port isolation Supports port security, IP+MAC+port binding Supports DHCP sourcing, DHCP option82 Supports IEEE 802.1x authentication Support for Radius, Tacacs+certification Support for command line hierarchical protection Support uRPF
reliability	Optional support for power supply 1+1 backup Support link aggregation in static/ LACP mode and link aggregation across service cards Supports EAPS, ERPS ring network protection Supports HSRP and VRRP hot standby protocols Support GR for OSPF, BGP Support BFD for OSPF, BGP Support uninterrupted system upgrade for ISSU bussiness
Management and maintenance	Support for Console, Telnet, SSH 2.0 Support ZTP zero contact configuration activation (Zero Touch Provisioning) Support browser based WEB management Supports SNMP v1/v2/v3 Support TFTP file upload and download management Support for RMON event history Support traffic statistics and analysis such as sFLOW
Green and Energy Saving	Support IEEE 802.3az Green Energy Efficient Ethernet
Power supply	100~240VAC, 50Hz±10% Hot swappable dual power supply options
Work Environment	Working temperature/humidity: -10~50℃, 10%~90% (without condensation) Storage temperature/humidity: -20~70℃, 5%-95% (without condensation)
Mechanical structure	Shell: Metal shell, IP20 protection level Installation: 19 inch 1U rack mounted
Certification	CE, FCC, RoHS
