Standard & Protocol |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3ae for 10GBase-X
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
ITU-T G.8032 for ERPS
IEEE 802.1Q for VLAN
IEEE 802.1AB for LLDP
IEEE 802.3ad for LACP
IEEE 802.3af for PoE
IEEE 802.3at for PoE+ |
|
Management |
SNMP v1/v2c/v3 centralized managed equipment, RMON, Port Mirroring, LLDP, PoE, DHCP Server, DHCP Relay, port speed limit, port isolation, port statistics, file management, online upgrade, log information, Syslog server |
|
Security |
User privilege classification, ACL, SSH/HTTPS protocol authorization, link flapping protection, port loopback detection, access control, SNMP, RMON, IPDT, IPv6DT, Smart-Link, NAT, port alarm, temperature alarm, power alarm, network load alarm |
|
Switch Function |
802.1Q VLAN, MAC, static aggregation, LACP, ARP, storm suppression |
|
Unicast/ Multicast |
IGMP-Snooping, MLD-Snooping, IGMP, MLD, PIM-SM, PIM-DM, IPv6-PIM-SM, IPv6-PIM-DM |
|
Redundancy Technology |
Ring, MRP, STP/RSTP/MSTP, ERPS |
|
Routing Technique |
RIP, RIPng, OSPF, OSPFv3, ISIS, VRRP, IPv6 VRRP, BGP |
|
Troubleshooting |
Ping, Traceroute, Network Cable Diagnosis, DDMI |
|
Time Management |
NTP Client, Time Zone Configuration |
| PoE |
The maximum power of PoE port: 30W
PoE power supply pins: 1 and 2 are positive, 3 and 6 are negative, 4, 5, 7 and 8 are reserved |
|
Interface |
Gigabit copper port: 10/100/1000Base-T(X) self-adaption or forced mode, RJ45, Automatic Flow Control, Full/Half Duplex Mode self-adaption, MDI/MDI-X Autotunning, PoE (optional)
10Gigabit SFP+ slot: 10G Base-X self-adaption, 1G/2.5G forced mode, SFP+ slot
Console port: CLI command line management port (RS-232), RJ45
OOB port: Out-of-Band Management Port, which could be used to configure WEB and upgrade software directly
Relay (non-PoE): support 1 relay alarm output, and adopt 3-pin 5.08mm pitch terminal blocks. The current carrying capacity is 1A@30VDC or 0.3A@125VAC
Relay (PoE): DC products support 2 relay alarm outputs, and AC products support 1 relay alarm output, adopt 5-pin 5.08mm pitch terminal blocks. Relay occupies 2 pins, the current carrying capacity is 1A@30VDC or 0.3A@125VAC |
|
Indicator |
Power indicator, running indicator, alarm indicator, interface indicator, PoE indicator |
|
Switch Property |
Transmission mode: store and forward
MAC address: 16K
Buffer: 12Mbit
Backplane bandwidth: 128G
Switch delay: <10μs |
|
Power Supply |

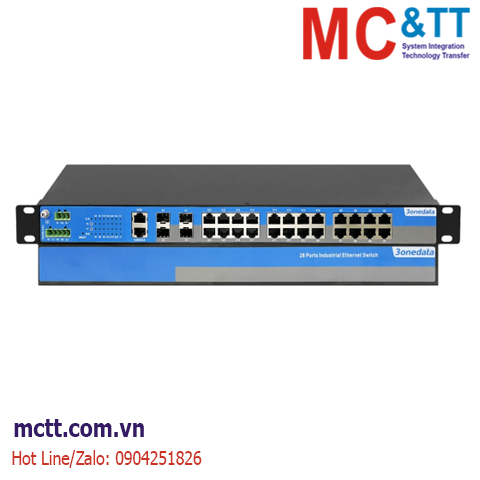

ICS5400SL-24GT4XS-2LV:
- Power supply range: 24/48VDC (18~72VDC), dual power supply redundancy
- Connection mode: 5-pin 5.08mm pitch terminal blocks6
- Connection protection: support non-polarity
ICS5400SL-24GT4XS-2HV:
- Power supply range: 110/220VAC (85~264VAC), dual power supply redundancy
- Connection mode: 5-pin 5.08mm pitch terminal blocks
ICS5400SL-24GP4XS-2LV:
- Power supply range: 48VDC (44~55VDC), dual power supply redundancy
- Connection mode: 5-pin 5.08mm pitch terminal blocks
- Connection protection: support anti-reverse connection
ICS5400SL-24GP4XS-HV:
- Power supply range: 110/220VAC (100~240VAC), single power supply input
- Connection mode: AC power socket with switch
|
|
Power Consumption |
ICS5400SL-24GT4XS-2LV:
No-load at normal temperature: 7.6W@48VDC
Full-load at normal temperature: 20.7W@48VDC
No-load at high temperature: 9.8W@48VDC
Full-load at high temperature: 22.9W@48VDC
ICS5400SL-24GT4XS-2HV:
No-load at normal temperature: 7.1W@220VAC
Full-load at normal temperature: 20.7W@220VAC
No-load at high temperature: 8.8W@220VAC
Full-load at high temperature: 22.6W@220VAC
ICS5400SL-24GP4XS-2LV:
No-load at normal temperature: 9.12W@48VDC
Full-load at normal temperature: 696W@48VDC (with PoE)
No-load at high temperature: 10.58W@48VDC
Full-load at high temperature: 698.4W@48VDC (with PoE)
ICS5400SL-24GP4XS-HV:
No-load at normal temperature: 12.2W@220VAC
Full-load at normal temperature: 332.4W@220VAC (with PoE)
No-load at high temperature: 13.2W@220VAC
Full-load at high temperature: 339.8W@220VAC (with PoE) |
|
Working Environment |
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95%(no condensation) |
|
Physical Characteristic |
Housing: IP40 protection grade (non-PoE), IP30 protection grade (PoE),
metal
Installation: 19-inch 1U rack mounting
Dimension (W x H x D):
ICS5400SL-24GT4XS-2LV: 440mm×44mm×207mm (exclude lugs)
ICS5400SL-24GT4XS-2HV: 440mm×44mm×207mm (exclude lugs)
ICS5400SL-24GP4XS-2LV: 440.4mm×44mm×304.8mm (exclude
lugs)
ICS5400SL-24GP4XS-HV: 440.4mm×44mm×304.8mm (exclude
lugs)
Weight:
ICS5400SL-24GT4XS-2LV: 2.301kg
ICS5400SL-24GT4XS-2HV: 2.535kg
ICS5400SL-24GP4XS-2LV: 4.123kg
ICS5400SL-24GP4XS-HV: 4.120kg |
|
Industrial Standard |
IEC 61000-4-2 (ESD, electrostatic discharge), Level 4
Contact discharge: ±15kV
Air discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 4
Power supply: ±4kV
Copper port: ±2kV
IEC 61000-4-5 (Surge), Level 4
Power supply: differential mode±2kV, common mode±6kV
Copper port: differential mode±2kV, common mode±6kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6 |
| Industrial Standard (PoE) |
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
Air discharge: ±8kV
Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
Power supply: ±2kV
Copper port: ±1kV
ICS5400SL-24GP4XS-2LV:
IEC 61000-4-5 (Surge), Level 4+
Power supply: differential mode±2kV, common mode±6kV
Copper port: differential mode±2kV, common mode±6kV
ICS5400SL-24GP4XS-HV:
IEC 61000-4-5 (Surge), Level 3
Power supply: differential mode±1kV, common mode±2kV
Copper port: differential mode±1kV, common mode±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6 |
|
Authentication |
CE, FCC, RoHS |
|
Warranty |
3 years |
