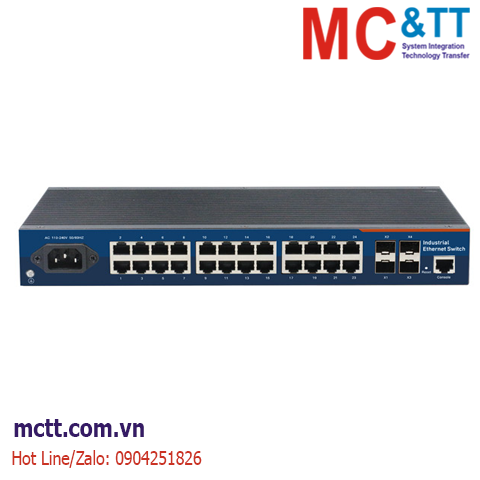

Switch công nghiệp Layer 3 quản lý 24 cổng Gigabit Ethernet + 4 cổng 10G SFP+ USR-ISGX424-SFP
PUSR industrial switches adopts aluminum housing which can realize effective cooling without fan, and operate more quietly. WIth DIN rail mounting design, it can be installed on the DIN-rail, which is simple and convenient.
A wide operating temperature range of -40 ~ +85° C (-40° ~167° F) allows for installations in harsh environments with extreme hot or cold conditions.
With industrial lightning protection component for both power supply and network interface, the switches can effectively prevent the device from being damaged by lightning.
Tính năng
- Extreme Temperature, -40℃~+85℃
- Redundant Power Supply, DC 12-52V Range
- Industrial Grade Quality, Lighting Protection 6KV
- Aluminum Housing, Effective Cooling
- Dustproof Design, IP40 Protection
- Din-Rail Mounting, Easy to Installation
- Compact Size, Save Your Space
Thông số kỹ thuật
| Model |
USR-ISGX424-SFP |
| Number of Ports |
28 |
| 10/100/1000M RJ45 Electrical Port |
24 |
| 1G/10G SFP+ Optical Port |
4 |
| Protection Level |
IP40 |
| Power Input |
AC/DC 100-240V |
| Power Consumption |
<30W |
| Operating Temperature |
-40～85°C |
| Relative Humidity |
5% to 95% (No condensation) |
| Installation Method |
Rack-mounted |
| Dimensions (L×W×H)mm |
328*172*44 |
| Switching Bandwidth |
1.2Tbps |
| MAC Address Table |
32K |
| Packet Forwarding Rate |
406Mpps |
| Routing Entries |
512 |
| General Functions |
| QoS and VLAN |
√ |
| Port Static Aggregation/LACP |
√ |
| IGMP v1/v2/v3 Multicast Management |
√ |
| Broadcast Storm Suppression |
√ |
| Redundancy Protocols |
| MW-Ring |
/ |
| ERPS |
√ |
| RSTP/STP |
√ |
| Layer 3 Software Features |
| Layer 3 Routing |
√ |
| Multicast Routing |
/ |
| VRRP |
√ |
| Management Functions |
| SNMPv1/v2 |
√ |
| LLDP |
√ |
| DHCP |
√ |
| RMON |
√ |
| GVRP Dynamic VLAN Management |
√ |
| GMRP Multicast Management |
/ |
| Clock Service |
√ |
| Device Management |
√ |
| Security Functions |
| 802.1X |
√ |
| HTTPS/SSL |
√ |
| Port Security Binding |
√ |
| ACL (Access Control List) |
√ |
| RADIUS |
/ |
Download
Datasheet
Thông tin đặt hàng
