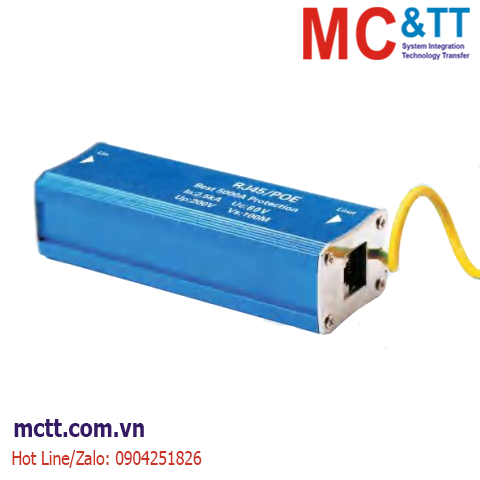

Thiết bị chống sét tín hiệu mạng Gigabit LAN JHA Tech JHA-RJ45H
The RJ45 series network signal surge protector is designed in compliance with IEC and GB standards. Featured with standard RJ45 connectors, it is suitable for surge protection of 10/100/1000M Ethernet networks. It is easy to install and adopts the latest internal semiconductor devices, perfectly applicable to surge protection for high-speed internet networks.
Tính năng
- Maximum discharge current: 10kA, low limiting voltage
- Two-port and two-stage surge protection
- Fast response time with low insertion loss
- RJ45 interface, providing dual protection for power supply and network
- 100/1000M adaptive, full protection for 4/8 wires
- Optional 19-inch rack-mounted multi-channel protection design
Thông số kỹ thuật
| Model |
JHA-RJ45 |
JHA-RJ45H |
| Maximum Continuous Operating Voltage (Uc) |
8V
|
| Nominal Discharge Current (In) |
3KA
|
| Maximum Discharge Current Imax (8/20μs) |
10kA
|
| Voltage Protection Level (Up) |
<25V
|
| Transmission Speed |
100M |
1000M |
| Insertion Loss (IL) |
≤0.4dB
|
| Response Time (ta) |
≤1ns |
| Protection Chip |
1/2 3/6 |
1/2 3/6 4/5 7/8 |
| Operating Temperature |
-40~85℃
|
| Connection Port |
RJ45 |
| Ingress Protection Level (IP) |
IP20
|
| Size |
100*37*28 mm
|
Thông tin đặt hàng
Gigabit Ethernet RJ45 lightning protection
