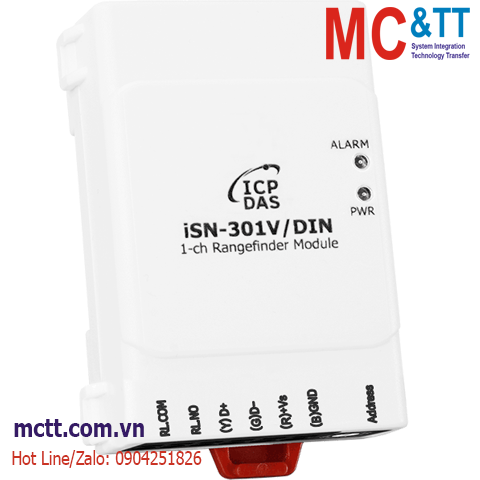

Module đo khoảng cách 5 cm - 4 m RS-485 Modbus RTU ICP DAS iSN-301V/DIN CR
Feature
- Non-contact Distance Measurement (Time-of-Filght)
- Distance Measurement 5 cm ~ 4 m
- Typical Full Field-of-View (FoV): 15°
- Programmable Region-of-Interest (ROI) Size and Position
- Supports the DCON and the Modbus RTU Protocols
Introduction
The iSN-301 is a Time-of-Flight sensing module that is designed specifically for non-contact distance measurement. It can measure distance up to 4 meters. The module can be configured to trigger LED alarm when the distance is too short or too long. It is possible to program the size and position of the ROI to adjust the sensor FoV. The module can be easily integrated with the host controller connected in the same RS-485 network via DCON or Modbus RTU protocol.
Application
Greenhouse Automation Cloud Management Solution
- Lighting and exhaust fans in toilets and restrooms
- Common lighting in staircases
- Lighting in parking areas
- Garden lighting
- Lighting for changing rooms in shops
- Corridor lighting, and many more situations
- Sanitary (robust user detection whatever the target reflectance)
- Smart building (people detection)
Specifications
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power |
| ESD (IEC 61000-4-2) |
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 as Power Indicator. 1 as Alarm Indicator. |
| Distance Measurement |
| Detection Range |
5 cm ~ 4 m |
| Detection Fld of View |
15°; Diameter 0.8 meters Max. |
| Auracy |
±5% (±20 cm) |
| Resolution |
1 mm |
| Update Time |
160 ~ 6000 ms, programmable |
| Sensor Direction |
Vertical |
| Relay Output |
| Type |
Signal Relay, Form A x1, SPST
0.25 A @ 250 VAC
0.5 A @ 125 VAC
2 A @ 30 VDC |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
Software Configurable: 1200 ~ 115200 bps |
| Data Format |
N,8,1 / O,8,1 / E,8,1 / N,8,2 |
| Protocol |
Modbus RTU or DCON |
| Node Address |
0 ~ 255 for software configuration
96 ~ 127 for hardware configuration |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
10 ~ 30 VDC |
| Consumption |
1.2 W Max. |
| Mechanical |
| Dimensions (mm) |
52 x 84 x 27 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-40 ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| iSN-301V/DIN CR |
1-ch Rangefinder Module (Vertical) (DIN Rail mount) (RoHS) |
