LCD Display |
Touchscreen |
|
Display Type |

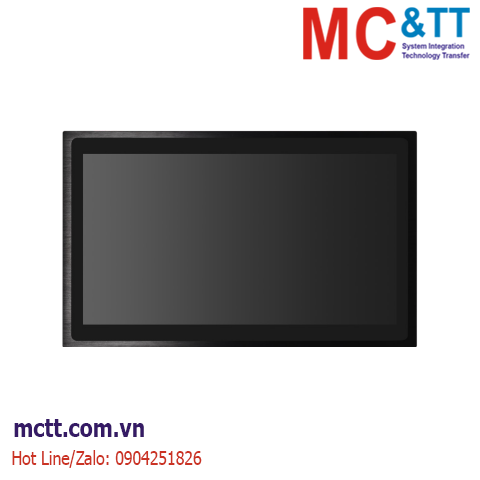

19.5″ TFT LCD (LED backlight) |
Touchscreen Type |
Projected Capacitive |
Non-Touchscreen |
|
Resolution |
1920*1080 |
Touchscreen Method |
Ten point |
- |
|
Luminance |
250 cd/m2 (Typ.) |
Surface |
6H |
6H |
|
Viewing Angle |
89/89/89/89 (Typ.)(CR>=10) |
Durability |
– |
- |
|
Contrast Ratio |
3000:1 (Typ.) ( Transmission ) |
Transparency |
85±3% |
>88% |
|
System |
|
CPU |
Model |
Intel® Core™ i3-1215U |
Intel® Core™ i5-1235U |
Intel® Core™ i7-1255U |
|
Graphic |
Intel® UHD Graphics,
Up to 64 EUs, 1.10 GHz |
Intel® Iris® Xe Graphics,
Up to 80 EUs, 1.20 GHz |
Intel® Iris® Xe Graphics,
Up to 96 EUs, 1.25 GHz |
|
RAM |
SO-DIMM |
1* non-ECC SO-DIMM Socket, support DDR4-3200 MHz, up to 32GB |
|
Storage |
SATA |
1*SATA3.0 7P slot on board (6Gb/s) , with 1* SATA Power Wafer |
|
M.2 |
1*M.2 (NGFF) 2280 M-Key Slot (SATA/PCIe x4, support PCIe x4 NVMe SSD) |
|
Supported OS |
Windows & Linux |
Win 10, Win11, Win 10 IoT, Linux, Ubuntu, Debian, Kali, CentOS, etc |
|
I/O INTERFACE |
COM |
2*RS232 (COM1/2, Wafer, Full lanes); 3*RS232/TTL (COM3/4/5, Wafer, 3 lanes); 1 * RS232/RS485/TTL (COM6, Wafer, 3 lanes) |
|
Ethernet |
2 * Intel® GBE LAN Chip (10/100/1000 Mbps, RJ45) |
|
USB |
6 * USB3.0 (TYPE-A, Rear IO); 3 * USB2.0 (Wafer, Internal) |
|
Video |
1* HDMI, Support 4096*2160@30Hz; 1* DP++, Support 4096*2304@60Hz |
|
Audio |
Realtek Audio HAD Codec, 1*Line-Out + MIC 2in1, 1*Amplifier Wafer, 3-W (per channel) into a 4-Ω Loads |
|
SIM |
1*SIM Card wafer |
|
Power Supply |
DC12V/24V Auto Detect (BOM optional only support DC 24V or 12V) , 1 * DC 12V/24V Power Input Φ2.5mm Thread Jack (2P 3.5mm/5.08mm Terminal Block Optional) |
|
Other |
1 * 8-bit GPIO Wafer; 1 * Front Panel Wafer; 1 * System FAN Wafer; 1 * CPU FAN Wafer; 1 * CMOS Clear Jumper |
|
Extended Capabilities |
Additional Internal Interface |
1 * M.2 Key-E Slot (PCIE+USB2.0, Default PCIE, Support WIFI, 2230)
1 * M.2 Key-B Slot (PCIE + USB3.0 + USB2.0, Support 5G/4G, 2242/3052) |
|
Environment |
Operating Temperature |
Non-Touch: 0~60°C; Capacitive: -20~60°C; (w/ 0.7m/s Airflow) |
|
Storage Temperature |
Non-Touch: 0 ~ 50°C; Capacitive: -20 ~ 60°C |
|
Relative Humidity |
40 °C @ 95%, Non-Condensing |
|
Physical Characteristics |
Dimensions |
490*300*93 mm |
|
Net Weight |
Around 2kg (The final weight is subject to actual ordering configuration) |
|
Regulation |
EMC |
CE/FCC Class B, CCC |
|
Safety |
CE-LVD, RoHS, CCC |
