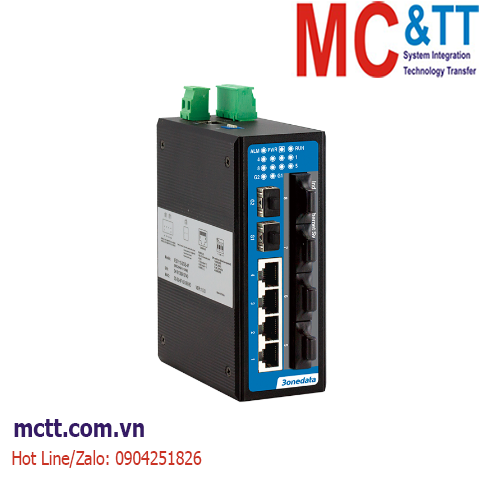

Switch công nghiệp quản lý 4 cổng Ethernet + 4 cổng quang + 2 cổng Gigabit SFP 3Onedata IES7110-4T4F2GS-P220
IES7110 series are 10-port 100M/Gigabit layer 2 managed industrial Ethernet switches. This series provides 6 products and supports a variety of interfaces including 100M copper ports, 100M fiber ports, and Gigabit SFP slots. They adopt DIN-Rail mounting or wall mounting to meet the requirements of different application scenes.
Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS Function, LLDP, IGMP Snooping, Dynamic Multicast, Port Trunking, Port Mirroring, 802.1X. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on, and supports CLI, WEB, Telnet, SNMP and other access methods. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
DC power supply input consists of two independent power supply circuits, which can ensure device’s normal operation when one fails. The design of DIP switch could implement device factory setting recovery. When DC power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.
Tính năng
- Support 2 Gigabit fiber ports (SFP slot) and 8 optional 100M Ethernet fiber/copper ports
- Adopt Ring patent technology, support single ring, coupling ring, chain ring, Dual-homing ring network function, automatic recovery time of network failure < 50ms
- Gigabit bandwidth can realize transmitting large amounts of video, voice and data with high performance and high speed
- DC Product supports dual power input, with input voltage of 12/24/48VDC (12~60VDC).
- AC Product supports input voltage of 100~240VAC/DC
- Support -40~75℃ wide operating temperature range
Thông số kỹ thuật
|
Standard & Protocol |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3z for 1000Base-X
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.1AB for LLDP
IEEE 802.1X for 802.1X Authentication |
|
Management |
SNMP v1/v2c/v3 Centralized Management of Equipment, Port Mirroring, QoS, LLDP, DHCP Client, File Management, Port Statistics |
|
Security |
Classification of User Permissions, Port Alarm, Power Alarm, IEEE802.1X, Threshold Alarm, Loop Protection |
|
Switch Function |
802.1Q VLAN, Static Port Aggregation, Bandwidth Management, Flow Control |
|
Unicast / Multicast |
Dynamic MAC Multicast, IGMP-Snooping |
|
Redundancy Technology |
Ring, STP/RSTP |
|
Interface |
100M copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/ MDI-X Autotunning
100M fiber port: 100Base-FX, optional SC/ST/FC
SFP slot: 1000Base-X SFP
Console port: CLI command line management port (RS-232), RJ45
Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output |
|
Indicator |
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator |
|
Switch Property |
Transmission mode: store and forward
MAC address: 4K
Cache: 2Mbit
Backplane bandwidth: 9.6G
Switch time delay: <10μs |
|
Power Supply |
DC power: 12/24/48VDC (12~60VDC), adopt 4-pin 7.62mm pitch terminal blocks, redundant dual power input, built-in overcurrent protection, support non-polarity
AC power: 100~240 VAC/DC, with built-in 5.0A overcurrent protection |
|
Power Consumption |
|
Model |
No-load |
Full-load |
|
IES7110-8T2GS-2P48 |
3.8W@48VDC |
4.0W@48VDC |
|
IES7110-8T2GS-P220 |
4.1W@220VAC |
4.3W@220VAC |
|
IES7110-4T4F2GS-2P48 |
7.0W@48VDC |
8.6W@48VDC |
|
IES7110-4T4F2GS-P220 |
6.8W@220VAC |
8.0W@220VAC |
|
IES7110-6T2F2GS-2P48 |
5.6W@48VDC |
7.8W@48VDC |
|
IES7110-6T2F2GS-P220 |
5.4W@220VAC |
6.8W@220VAC |
|
|
Working Environment |
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%~95% (no condensation) |
|
Mechanical Structure |
Housing: IP40 protection, metal
Installation: DIN-Rail or wall mounting
Dimension (W x H x D): 53mm×138mm×110mm
Weight: 641g |
|
DC Product
Industrial Standard |
IEC 61000-4-2 (ESD, electronic static discharge), Level 4
- Air discharge: ±15kV
- Contact discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 4
- Power supply: ±4kV
- Ethernet port: ±2kV
IEC 61000-4-5 (Surge), Level 4
- Power supply: common mode±4kV, differential mode±2kV
- Ethernet port: common mode±4kV, differential mode±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6 |
|
AC Product
Industrial Standard |
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
- Air discharge: ±8kV
- Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
- Power supply: ±2kV
- Ethernet port: ±1kV
IEC 61000-4-5 (Surge), Level 3
- Power supply: common mode±2kV, differential mode±1kV
- Ethernet port: common mode±2kV, differential mode±1kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6 |
|
Authentication |
CE, FCC, RoHS |
Download
Datasheet
Quick Guide
User Manual
Thông tin đặt hàng
|
Available Models |
Gigabit SFP Slot |
100M Copper Port |
100M Fiber Port |
Power Supply |
|
IES7110-8T2GS-2P48 |
2 |
8 |
― |
12/24/48VDC(12~60VDC)
dual power supply |
|
IES7110-6T2F2GS-2P48 |
2 |
6 |
2 |
|
IES7110-4T4F2GS-2P48 |
2 |
4 |
4 |
|
IES7110-8T2GS-P220 |
2 |
8 |
― |
100~240VAC/DC |
|
IES7110-6T2F2GS-P220 |
2 |
6 |
2 |
|
IES7110-4T4F2GS-P220 |
2 |
4 |
4 |
