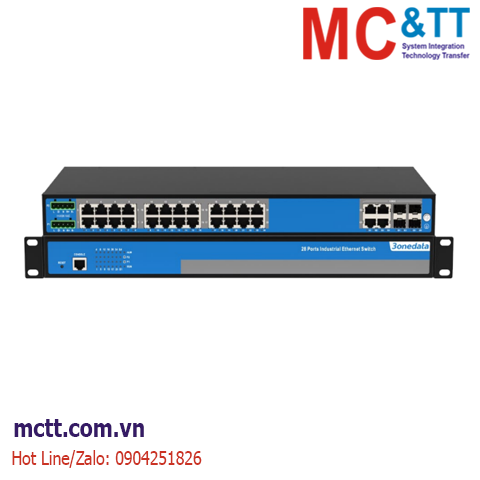

Switch công nghiệp 20 cổng Ethernet + 4 cổng quang + 4 cổng Gigabit Combo 3Onedata IES1200-20T4F4GC-2HV
IES1200 series are 28-port 100M/Gigabit unmanaged industrial Ethernet switches. This series has 10 products to choose from, providing 100M copper port, 100M fiber port, and Gigabit COMBO port. Copper ports can negotiate the port rate and duplex mode with the
device at the opposite end through self-negotiation. Support 18~72VDC or 85~264VAC power supply scheme, and adopt rack installation mode, which can meet the requirements of different application sites.
RESET button can reboot the device. The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. When power supply has link failure, ALM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.
Tính năng
- Support 8/1620/22//24 100M copper ports, 2/4/8/16 100M fiber ports and 4 Gigabit COMBO ports, in which Gigabit RJ45 or Gigabit SFP slots can be selected for COMBO ports
- Support 2 relay alarm outputs, which is used for power failure alarm, and can be externally connected with buzzer, alarm indicator or other switching value collection device
- 2 24/48VDC (18-72VDC) or 2 110/220VAC (85~264VAC/DC) redundant power inputs
- Support -40~75°C wide operating temperature range
- Support IP40 protection grade
Thông số kỹ thuật
|
Standard & Protocol |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow Control |
|
Interface |
100M copper port: 10/100Base-T(X) self-adaption, RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/ MDI-X Autotunning
100M fiber port: 100Base-X, optional SC/ST/FC
Gigabit Combo port: 10/100/1000Base-T(X) self-adaptive RJ45 or 1000Base-X SFP slot
CONSOLE port: CLI command line management port(RS-232), RJ45
Relay: support 2 relay alarm outputs, adopt 2 5-pin 5.08mm pitch terminal blocks, the relay occupies the right 2 pins, the current carrying
capacity is 1A@30VDC or 0.3A@125VAC |
|
LED Indicator |
Power indicator, running indicator, alarm indicator, interface indicator |
|
Switch property |
Transmission mode: store and forward
MAC address: 8K
Cache: 4.1Mbit
Backplane bandwidth: 12.8Gbps
Switch delay: <10μs |
|
Power Supply |
Adopt 2 5-pin 5.08mm pitch terminal blocks (power supply occupies the left 3 pins)
2 24/48VDC (18~72VDC), redundant power input, support non-
polarity
2 110/220VAC (85~264VAC/DC) redundant power inputs |
|
Power Consumption |
| Model |
No-load |
Full-load |
| IES1200-8T16F4GC-2LV |
20.7W@48VDC |
23.6W@48VDC |
| IES1200-8T16F4GC-2HV |
21.2W@220VAC |
23.8W@220VAC |
| IES1200-16T8F4GC-2LV |
13.69W@48VDC |
18.76W@48VDC |
| IES1200-16T8F4GC-2HV |
13.1W@220VAC |
16.7W@220VAC |
| IES1200-20T4F4GC-2LV |
10.5W@48VDC |
15.6W@48VDC |
| IES1200-20T4F4GC-2HV |
9.3W@220VAC |
13.6W@220VAC |
| IES1200-22T2F4GC-2LV |
7.5W@48VDC |
11.8W@48VDC |
| IES1200-22T2F4GC-2HV |
8.9W@220VAC |
14.1W@220VAC |
| IES1200-24T4GC-2LV |
5.9W@48VDC |
10.8W@48VDC |
| IES1200-24T4GC-2HV |
6.2W@220VAC |
12.3W@220VAC |
|
|
Working Environment |
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95% (no condensation) |
|
Mechanical Structure |
Housing: IP40 protection, metal
Installation: 19-inch 1U rack mounting
Dimension (W x H x D): 440mm×44mm×207mm (lugs are not included)
Weight:
- IES1200-8T16F4GC-2LV: 2.411kg
- IES1200-8T16F4GC-2HV: 2.658kg
- IES1200-16T8F4GC-2LV: 2.361kg
- IES1200-16T8F4GC-2HV: 2.608kg
- IES1200-20T4F4GC-2LV: 2.370kg
- IES1200-20T4F4GC-2HV: 2.671kg
- IES1200-22T2F4GC-2LV: 2.363kg
- IES1200-22T2F4GC-2HV: 2.682kg
- IES1200-24T4GC-2LV: 2.223kg
- IES1200-24T4GC-2HV: 2.566kg
|
|
Industrial Standard |
IEC 61000-4-2 (ESD, electronic static discharge), Level 4
- Contact discharge: ±8kV
- Air discharge: ± 15kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 4
- Power supply: ±4kV
- Copper port: ±2kV
- Relay: ±4kV
IEC 61000-4-5 (Surge), Level 4
- Power supply: differential mode±2kV, common mode±4kV
- Copper port: differential mode±2kV, common mode±4kV
- Relay: differential mode±2kV, common mode±4kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6 |
|
Authentication |
CE, FCC, RoHS |
Download
Datasheet
Quick Guide
Thông tin đặt hàng
Unmanaged, 20*10/100Base-T(X) RJ45 + 4*100M SC ( single-mode, 20KM) + 4*1000M combo, dual power supply 85~264VAC, rack mounting
