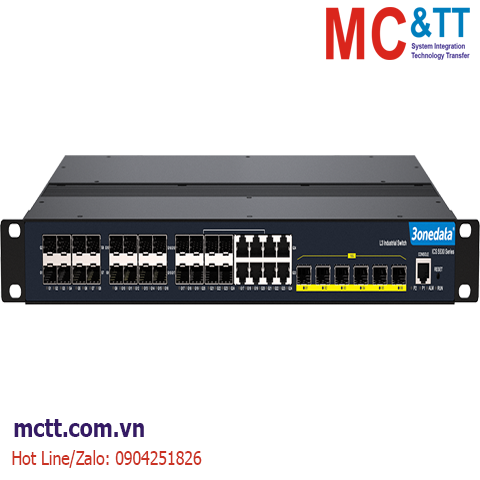

Switch công nghiệp quản lý Layer 3 với 8 cổng Gigabit Combo + 6 cổng 10Gb SFP + 16 cổng Gigabit SFP 3Onedata ICS5530-16GS8GC6XS-2P(18-72VDC)
ICS5530 series is a 30-port Gigabit/10 Gigabit layer 3 managed industrial Ethernet switch. It provides Gigabit SFP slots, Gigabit fiber and copper Combo ports and 10Gigabit SFP+ slots. It adopts 1U rack mounting. Abundant numbers of interfaces and bandwidth of Gigabit/10Gigabit combination to meet the application requirements of large-scale industrial network.
Network management system supports a variety of network protocols and industry standards, such as ARP, VRRP, RIP, OSPF, BGP, STP/RSTP/MSTP, 802.1Q VLAN, QoS function, IGMP static multicast function, LLDP, port trunking, port mirror, etc. It has perfect management functions, supporting port configuration, port statistics, 802.1X authentication, network diagnosis, rapid configuration, online upgrade, etc. CLI, WEB, Telnet, SSH, SNMP and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
This product supports DC or AC dual power supply. The power input is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. When power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart city, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.
Tính năng
- Support6 10Gigabit fiber ports (SFP+ slots), 8 Gigabit Combo (SFP slots or RJ45), 16Gigabit SFP slots
- AdoptSW-Ring patented technology, support single ring, coupling ring, chain ring,Dual-homing ring network function, automatic recovery time of network failure< 20ms
- SupportDC or AC dual power (optional), input voltage: 18~72VDC or 100~240VAC/DC
- Support-40~75℃ wide operating temperaturerange
Thông số kỹ thuật
|
Standard & Protocol |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3ae for 10GbE SFP+
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.1X for 802.1X Authentication
IEEE 802.1AB for LLDP
IEEE 802.3ad for LACP |
|
Management |
SNMP v1/v2c/v3 centralized management devices, RMON, port mirroring, QoS, LLDP, DHCP Server, DHCP Client, file management, log management, port statistics, ARP |
|
Security |
User permission rating, ACL, 802.1X authentication, port alarm, power alarm, storm suppression, Telnet configuration, HTTPS configuration, SSH configuration |
|
Switch Function |
802.1Q VLAN, Static/Dynamic Aggregation, Bandwidth Management, Flow Control, Port Isolation |
|
Unicast / Multicast |
Static Multicast, GMRP, IGMP-Snooping |
|
Redundancy Technology |
SW-Ring, STP/RSTP/MSTP, ERPS, Loop Detection |
|
Troubleshooting |
Ping, Traceroute, Port Loopback |
|
Routing Technique |
VRRP, RIP, OSPF, BGP |
|
Time Management |
SNTP |
|
Interface |
Gigabit SFP slot: 100/1000Base-X SFP
10Gigabit SFP slot: 10GbE SFP+
Combo port: 10/100/1000Base-T(X) or 100/1000Base-X SFP
Console port: CLI command line management port (RS-232), RJ45
Alarm port: 2-pin 5.08mm pitch terminal blocks, support 2 relay alarm outputs, current carrying capacity 5A@30VDC or 10A@125VAC |
|
Indicator |
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator |
|
Switch Property |
Transmission mode: store and forward
MAC address: 16K
Buffer: 16Mbit
Backplane bandwidth: 168G
Switch time delay: <10μs |
|
Power Supply |
ICS5530-16GS8GC6XS-2P220
100~240VAC/DC
Support 2 AC redundant power supply inputs
Support 5A overcurrent protection
Single-phase socket with rocker switch
ICS5530-16GS8GC6XS-2P(18-72VDC)
18~72VDC
Support 2 DC redundant power supply inputs
Adopt 5-pin 5.08mm pitch terminal blocks (power supply occupies 3 pins) |
|
Power Consumption |
ICS5530-16GS8GC6XS-2P220
No-load: 21.1W@220VAC
Full-load: 37.8W@220VAC |
|
Working Environment: |
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95%(no condensation) |
|
Physical Characteristic |
Housing: IP40 protection, metal
Installation: 19-inch 1U rack mounting
Weight: 5.248kg
Dimension (W x H x D): 441.6mm×44.45mm×290mm |
|
Industrial Standard |
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
Air discharge:± 8kV
Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient), Level 3
Power supply: ±2kV
Signal: ±1kV
IEC 61000-4-5 (Surge), Level 3
Power supply: differential mode±1kV, common mode±2kV
Signal: differential mode±1kV, common mode±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6 |
|
Authentication |
CE, FCC, RoHS |
|
Warranty |
3 years |
|
MTBF |
350000 hours |
Download
Datasheet
Quick Guide
Thông tin đặt hàng
|
Available Models |
10Gigabit
SFP+ |
Gigabit
Combo |
Gigabit
SFP |
Power Supply |
|
ICS5530-16GS8GC6XS-2P220 |
6 |
8 |
16 |
100~240VAC/DC dual power supply |
|
ICS5530-16GS8GC6XS-2P(18-72VDC) |
6 |
8 |
16 |
18~72VDC
