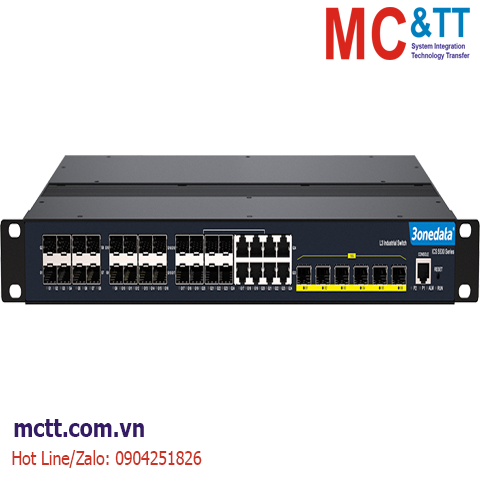

Switch công nghiệp quản lý Layer 3 với 8 cổng Gigabit Combo + 6 cổng 10Gb SFP + 16 cổng Gigabit SFP 3Onedata ICS5530-16GS8GC6XS-2P220

Chia sẻ:
Mã sản phẩm: ICS5530-16GS8GC6XS-2P220
Thương hiệu: 3onedata
Tình trạng:

30 Port 10Gb SFP+ Layer 3 Managed Industrial Ethernet Switch

Liên hệ
Mô tả

Switch công nghiệp quản lý Layer 3 với 8 cổng Gigabit Combo + 6 cổng 10Gb SFP + 16 cổng Gigabit SFP 3Onedata ICS5530-16GS8GC6XS-2P220

ICS5530 series is a 30-port Gigabit/10 Gigabit layer 3 managed industrial Ethernet switch. It provides Gigabit SFP slots, Gigabit fiber and copper Combo ports and 10Gigabit SFP+ slots. It adopts 1U rack mounting. Abundant numbers of interfaces and bandwidth of Gigabit/10Gigabit combination to meet the application requirements of large-scale industrial network.

Network management system supports a variety of network protocols and industry standards, such as ARP, VRRP, RIP, OSPF, BGP, STP/RSTP/MSTP, 802.1Q VLAN, QoS function, IGMP static multicast function, LLDP, port trunking, port mirror, etc. It has perfect management functions, supporting port configuration, port statistics, 802.1X authentication, network diagnosis, rapid configuration, online upgrade, etc. CLI, WEB, Telnet, SSH, SNMP and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.

This product supports DC or AC dual power supply. The power input is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. When power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart city, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.

Tính năng

  • Hỗ trợ 6 cổng quang 10Gigabit (khe SFP), 8 Gigabit Combo (khe SFP hoặc RJ45), 16 khe SFP Gigabit
  • Công nghệ SW-Ring, hỗ trợ single ring, coupling ring, chain ring, Dual-homing ring, thời gian phục hồi tự động khi lỗi mạng <20ms
  • Hỗ trợ nhiều giao thức mạng và tiêu chuẩn công nghiệp, chẳng hạn như STP/RSTP, DHCP, VLAN, chức năng QoS, chức năng IGMP Snooping, LLDP, v.v.
  • Hỗ trợ nguồn kép AC, điện áp đầu vào: 100~240VAC/DC

Thông số kỹ thuật

Standard & Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX

IEEE 802.3ab for 1000Base-T

IEEE 802.3z for 1000Base-X

IEEE 802.3ae for 10GbE SFP+

IEEE 802.3x for Flow Control

IEEE 802.1D for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

IEEE 802.1Q for VLAN

IEEE 802.1p for CoS

IEEE 802.1X for 802.1X Authentication

IEEE 802.1AB for LLDP

IEEE 802.3ad for LACP


SNMP v1/v2c/v3 centralized management devices, RMON, port mirroring, QoS, LLDP, DHCP Server, DHCP Client, file management, log management, port statistics, ARP


User permission rating, ACL, 802.1X authentication, port alarm, power alarm, storm suppression, Telnet configuration, HTTPS configuration, SSH configuration

Switch Function

802.1Q VLAN, Static/Dynamic Aggregation, Bandwidth Management, Flow Control, Port Isolation

Unicast / Multicast

Static Multicast, GMRP, IGMP-Snooping

Redundancy Technology

SW-Ring, STP/RSTP/MSTP, ERPS, Loop Detection


Ping, Traceroute, Port Loopback

Routing Technique


Time Management



Gigabit SFP slot: 100/1000Base-X SFP

10Gigabit SFP slot: 10GbE SFP+

Combo port: 10/100/1000Base-T(X) or 100/1000Base-X SFP

Console port: CLI command line management port (RS-232), RJ45

Alarm port: 2-pin 5.08mm pitch terminal blocks, support 2 relay alarm outputs, current carrying capacity 5A@30VDC or 10A@125VAC


Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator

Switch Property

Transmission mode: store and forward

MAC address: 16K

Buffer: 16Mbit

Backplane bandwidth: 168G

Switch time delay: <10μs

Power Supply



Support 2 AC redundant power supply inputs

Support 5A overcurrent protection

Single-phase socket with rocker switch



Support 2 DC redundant power supply inputs

Adopt 5-pin 5.08mm pitch terminal blocks (power supply occupies 3 pins)

Power Consumption


No-load: 21.1W@220VAC

Full-load: 37.8W@220VAC

Working Environment:

Operating temperature: -40~75℃

Storage temperature:-40~85℃

Relative humidity: 5%~95%(no condensation)

Physical Characteristic

Housing: IP40 protection, metal

Installation: 19-inch 1U rack mounting

Weight: 5.248kg

Dimension (W x H x D): 441.6mm×44.45mm×290mm

Industrial Standard

IEC 61000-4-2 (ESD, electrostatic discharge), Level 3

Air discharge:± 8kV

Contact discharge: ±6kV

IEC 61000-4-4 (EFT, electrical fast transient), Level 3

Power supply: ±2kV

Signal: ±1kV

IEC 61000-4-5 (Surge), Level 3

Power supply: differential mode±1kV, common mode±2kV

Signal: differential mode±1kV, common mode±2kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6




3 years


350000 hours



Quick Guide

Thông tin đặt hàng

Available Models







Power Supply





100~240VAC/DC dual power supply






dual power supply
