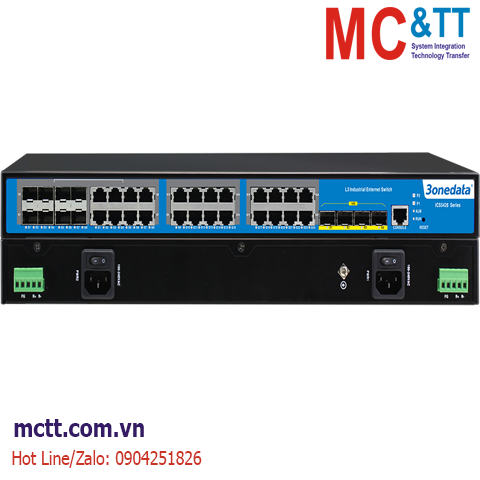

Switch công nghiệp quản lý Layer 3 16 cổng Gigabit Ethernet + 4 cổng 10Gigabit SFP + 8 cổng Combo Gigabit SFP 3Onedata ICS5428-16GT8GC4XS-2P24

Chia sẻ:
Mã sản phẩm: ICS5428-16GT8GC4XS-2P24
Thương hiệu: 3onedata
Tình trạng:

28-port Gigabit/10Gigabit Layer-3 Industrial Ethernet Switch

Liên hệ
Mô tả

Switch công nghiệp quản lý Layer 3 16 cổng Gigabit Ethernet + 4 cổng 10Gigabit SFP + 8 cổng Combo Gigabit SFP 3Onedata ICS5428-16GT8GC4XS-2P24

ICS5428 series là thiết bị chuyển mạch Ethernet công nghiệp 28 cổng Gigabit/10 Gigabit lớp 3. ICS5428 sử dụng giá đỡ 1U, bộ cấp nguồn PoE tuân theo tiêu chuẩn giao thức IEEE802.3af/at và nó có thể cấp nguồn cho thiết bị qua Ethernet, do đó giảm kết nối cáp của các thiết bị được cấp nguồn. Số lượng giao diện dồi dào, băng thông kết hợp Gigabit/10Gigabit và khả năng truyền lượng lớn video, thoại và dữ liệu với hiệu suất cao và tốc độ cao đáp ứng các yêu cầu ứng dụng của mạng công nghiệp quy mô lớn.

Hệ thống quản lý mạng hỗ trợ nhiều giao thức mạng và tiêu chuẩn ngành, chẳng hạn như ARP, VRRP, RIP, OSPF, BGP, NAT, ERPS, STP/ RSTP/MSTP, 802.1Q VLAN, chức năng QoS, chức năng phát đa hướng tĩnh IGMP Snooping, LLDP, trung kế cổng, nhân bản cổng, v.v. Nó có các chức năng quản lý hoàn hảo, hỗ trợ cấu hình cổng, thống kê cổng, xác thực 802.1X, chẩn đoán mạng, cấu hình nhanh, nâng cấp trực tuyến, phát hiện vòng lặp, v.v. CLI, WEB, Telnet, SSH, SNMP, v.v. phương pháp truy cập có thể được hỗ trợ. Nó có thể cung cấp cho người dùng trải nghiệm tốt với thiết kế giao diện hệ thống quản lý mạng thân thiện, thao tác đơn giản và thuận tiện.

Sản phẩm này hỗ trợ nguồn điện AC/DC kép tùy chọn. Nguồn điện đầu vào là hai mạch cấp điện độc lập có thể đảm bảo hoạt động bình thường của thiết bị khi một nguồn điện bị hỏng. Khi nguồn điện hoặc cổng bị lỗi liên kết, đèn báo ALARM sẽ sáng và gửi báo động, trong khi đó, thiết bị báo động được kết nối với rơle sẽ gửi báo động để khắc phục sự cố hiện trường nhanh chóng. Phần cứng áp dụng thiết kế không quạt, tiêu thụ điện năng thấp, nhiệt độ và điện áp rộng và đã vượt qua các bài kiểm tra tiêu chuẩn công nghiệp nghiêm ngặt, có thể phù hợp với môi trường công nghiệp với các yêu cầu khắc nghiệt đối với EMC. Nó có thể được sử dụng rộng rãi trong lưới điện thông minh, vận chuyển đường sắt, thành phố thông minh, thành phố an toàn, năng lượng mới, sản xuất thông minh và các lĩnh vực công nghiệp khác.

Tính năng

  • Hỗ trợ 4 cổng quang 10Gigabit (khe SFP+), 8 Gigabit Combo (khe SFP hoặc RJ45) và 16 cổng đồng Gigabit (PoE tùy chọn)
  • Công nghệ SW-Ring, hỗ trợ single ring, coupling ring, chain ring, Dual-homing ring
  • Hỗ trợ ERPS và phát hiện vòng lặp, có thể loại bỏ vòng lặp hiệu quả và ngăn chặn cơn bão phát sóng do vòng lặp dữ liệu gây ra
  • Hỗ trợ nguồn kép AC/DC tùy chọn, điện áp đầu vào: 100~240VAC/DC hoặc 48VDC hoặc 24VDC

Thông số kỹ thuật

Standard & Protocol

IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE802.3ae for 10GBase-X SFP+
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE802.1p for CoS
IEEE 802.1X for 802.1X Authentication
IEEE 802.1AB for LLDP
IEEE 802.3af for PoE
IEEE 802.3at for PoE+

Management SNMP v1/v2c/v3 Centralized Management Devices, RMON, Port Mirroring, QoS, LLDP, DHCP Server, File Management, Log Management, Port Statistics, ARP, PoE management
Security User permission rating, ACL, 802.1X authentication, port alarm, power alarm, storm suppression, Telnet configuration, SSH configuration, link flapping protection, NAT, DHCP snooping, loop detection
Switch Function 802.1Q VLAN, Port Trunking, Bandwidth Management, Flow Control, Port Isolation
Unicast / Multicast Static Multicast, Multicast Passthrough, GMRP, IGMP-Snooping, PIM-SM, PIM-DM
Redundancy Technology Ring, STP/RSTP/MSTP, ERPS
Troubleshooting Ping, Traceroute, Port Loopback, SFP Digital Diagnosis
Routing Technique VRRP, RIP, OSPF, BGP
Time Management NTP
Interface

Gigabit copper port: 10/100/1000Base-T(X) self-adaptive RJ45, automatic flow control, support full/half duplex mode, MDI/MDI-X self-adaption

Gigabit PoE:10/100/1000Base-T (X) self-adaptive RJ45, automatic flow control, support full/half duplex mode, MDI/MDI-X self-adaption; The maximum capacity of a      single port is 30W PoE power supply output. Pin 1 and 2 of PoE power supply are positive, while Pin 3 and 6 are negative

Gigabit SFP: 100/1000Base-X self-adaptive SFP slot

10Gigabit SFP+: 1000/10GBase-X self-adaptive SFP+ slot

Combo port: 10/100/1000Base-T(X) RJ45 or 1000Base-X SFP slot

Console port: CLI command line management port(RS-232), RJ45

Alarm port: 2 5-pin 5.08mm pitch terminal blocks(relay occupies 2 pins), support 2 relay alarm outputs, current loading capacity is 5A/30VDC or 10A/125VAC

LED Indicator Run indicator, interface indicator power indicator, alarm indicator, PoE indicator
Switch Property

Transmission mode: store and forward
MAC address: 16K
Buffer: 12Mbit
Backplane bandwidth: 128G
Switch time delay: <10μs

Power Supply

ICS5428-16GT8GC4XS-2P220
Input voltage: 220VAC (100~240VAC/DC)
Redundant power supply: support dual power supply redundancy
Overcurrent protection: 5A
Access terminal: single-phase socket with rocker switch

ICS5428-16GT8GC4XS-2P48
Input voltage: 48VDC (36~72VDC)
Redundant power supply: support dual power supply redundancy
Overcurrent protection: 3A
Connection protection: anti-reverse connection
Access terminal: 5-pin 5.08mm pitch terminal blocks (power supply occupies 2 pins)

ICS5428-16GT8GC4XS-2P24
Input voltage: 24VDC (18~72VDC)
Redundant power supply: support dual power supply redundancy
Overcurrent protection: 3A
Connection protection: anti-reverse connection
Access terminal: 5-pin 5.08mm pitch terminal blocks (power supply occupies 2 pins)

ICS5428-16GP8GC4XS-2P48
Input voltage: 48VDC
Redundant power supply: support dual power supply redundancy
Overcurrent protection: 3A
Connection protection: anti-reverse connection
Access terminal: 5-pin 5.08mm pitch terminal blocks (power supply occupies 2 pins)

Power Consumption

No-load: 10.5W@220VAC
Full-load: 25.3W@220VAC
PoE device with POE load, the maximum power is 240W

Environmental Limit Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%~95% (no condensation)
Physical Characteristic Housing: IP30 protection, metal
Installation: 19-inch 1U rack mounting
Weight: 3940g
Dimension (W x H x D): 440.4mm×44mm×304.8mm
Industrial Standard

IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
Air discharge:± 8kV
Contact discharge: ±6kV

IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
Power supply: ±2kV
Ethernet port: ±1kV

IEC 61000-4-5 (Surge), Level 3
Power supply: common mode±2kV, differential mode±1kV
Ethernet port: common mode±2kV, differential mode±1kV

Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6

Certification CE, FCC, RoHS
MTBF 350000 hours

Download

Datasheet

Quick Guide

Thông tin đặt hàng

Available Models Gigabit 10 Gigabit Power Supply
Copper Port PoE Port Combo Port SFP+
ICS5428-16GT8GC4XS-2P220 16 8 4 220VAC/DC (100~240VAC/DC)

Redundant power supply

ICS5428-16GT8GC4XS-2P48 16 8 4 48VDC (36~72VDC)

Redundant power supply

ICS5428-16GT8GC4XS-2P24 16 8   24VDC (18~72VDC)

Redundant power supply

ICS5428-16GP8GC4XS-2P48 16 8 4 48VDC

Redundant power supply
