Mô tả

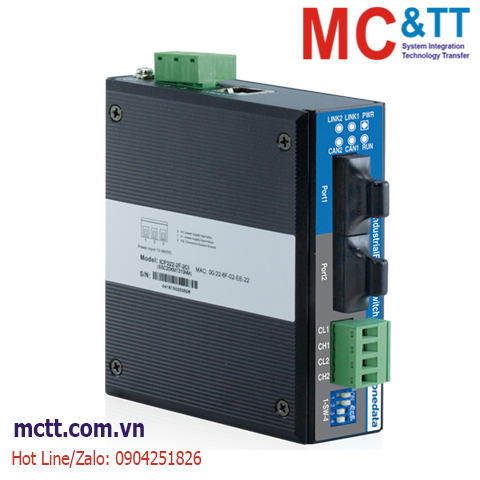

Bộ chuyển đổi 2 cổng CAN Bus sang 2 cổng quang 3onedata ICP222-2F-2CI

ICP222-2F-2CI is a CAN server that has integrated 2 CAN ports and 2 Ethernet ports internally. It can implement interconnection between CAN-Bus network and Ethernet network easily to further extend the communication range of CAN-Bus network. It supports 2 CAN to 2 100M Ethernet fiber port and adopts DIN-Rail mounting which can meet the requirements of different scenes.

CAN server supports various network protocols, such as TCP, UDP, TELNET, SW-Ring, ARP, ICMP, HTTP, DNS and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each CAN supports 4 TCP or UDP session connections and multiple operating modes like TCP Server, TCP Client, UDP and TCP Auto. Moreover, it supports WEB, TELNET, and other access modes. It can provide users with good experience via friendly design of network management system interface, simple and convenient operation.

DIP switch could implement restoring factory setting and accessing terminal resistor. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, building automation, healthcare automation system, measuring instrument and environment monitoring system, etc.

Tính năng

  • Support 2 CAN ports to 2 100M Ethernet fiber ports
  • Adopt SW-Ring ring network patent technology and support single ring function. Automatic recovery time from network failure is <20ms
  • Support multiple operating modes like TCP Server, TCP Client, UDP and TCP Auto
  • Support 5K~1000Kbps arbitrary baud rate
  • Support 12~48VDC wide voltage input
  • Support -40~75℃ wide operating temperature range

Thông số kỹ thuật

Ethernet Fiber port

Standard: IEEE 802.3u for 100Base-FX
Port quantity: 2
Ring network configuration: single ring
Transmission speed: 100M
Interface form: SC/ST/FC
Duplex mode: full duplex

Transmission distance:
Multimode: 2km
Single mode: 20/40/60/80/100/120km

Transmission wavelength:
Multimode: 1310nm
Single mode: 1310nm or 1550nm

Operating mode: 4 sessions, support operating modes like TCP Server, TCP Client, UDP, TCP Auto, advanced TCP Server and advanced UDP

CAN Interface Standard: CAN2.0A, CAN2.0B
Interface quantity: 2 CAN ports
CAN signal: CANH, CANL
Duplex mode: 2-wire Half Duplex Mode
Baud rate: 2.5kbps-1000kbps
Load capacity: support concurrent transmitting of 110 nodes
Transmission distance: 40m~10km
Interface form: adopt 4-pin 5.08mm pitch terminal blocks
Terminating resistor: optional external 120Ω terminating resistor
Interface protection: 2kVAC isolation protection
Console port CLI command line management port (RS-232), RJ45
Configuration Method WEB configuration management, TELNET configuration, Windows configuration tool
Redundancy Technology SW-Ring
Indicator Power supply indicator, running indicator, Ethernet fiber port indicator, CAN port indicator
Power supply


3-pin 7.62mm pitch terminal blocks. Support non-polar connection

Power Consumption No-load: 2.81W@24VDC
Full-load: 3.00W@24VDC
Environmental Limits

Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%~95%(no condensation)

Mechanical structure Housing: IP40 protection, metal
Installation: wall mounting
Dimension (W x H x D): 35mm×110mm×95mm
Weight: 350g
Industrial Standard

IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
Air discharge: ±8kV
Contact discharge: ±6kV

IEC 61000-4-4 (EFT, electrical fast transient), Level 4
Power supply: ±4kV

IEC 61000-4-5 (Surge), Level 3
Power supply: common mode±2kV, differential mode±1kV
CAN port: common mode±2kV, differential mode±1kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Certification CE, FCC, RoHS

Thông tin đặt hàng

Available Models 100M Fiber Port CAN Power Supply
ICP222-2F-2CI 2 2 12~48VDC
