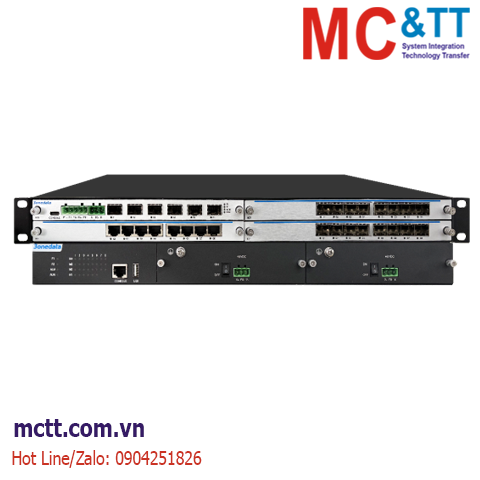

Switch công nghiệp IEC61850 quản lý Layer 3 30 cổng Gigabit Ethernet 3onedata MES5400-1U-24GS6XS-2LV

Chia sẻ:
Mã sản phẩm: MES5400-1U-24GS6XS-2LV
Thương hiệu: 3onedata
Tình trạng:

19-inch 1U Rack Mounting 30-port Gigabit Layer 3 Managed Industrial Ethernet Switch

Liên hệ
Mô tả

Switch công nghiệp IEC61850 quản lý Layer 3 30 cổng Gigabit Ethernet 3onedata MES5400-1U-24GS6XS-2LV

MES5400 series are 30-port Gigabit layer 3 managed industrial Ethernet switches. Provide Gigabit copper port, Gigabit SFP slot, which can negotiate the port rate and duplex mode with the device at the opposite end through self-negotiation. Support power supply solutions of 48VDC or 110~240VAC, and adopt standard rack installation method, which is specially designed for extremely severe electromagnetic interference environment to meet the anti-interference requirements of power monitoring industry.

Network management system supports various network protocols and industrial standards, such as Static Routing, RIP, VRRP, NAT, STP/RSTP/MSTP, PTP, HSR/PRP, GMRP, EPRS, 802.1Q VLAN, QoS, Modbus TCP function, DHCP Server, DHCP Client, IGMP Static Multicast, LLDP, Port Trunking, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Port IP Binding, Access Control, 802.1X Authentication, Network Diagnosis, Rapid Configuration, Online Upgrading and so on; and supports CLI, HTTP, HTTPS, Telnet, SSH and other access methods. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.

The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. When power supply or port has link failure, ALM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The hardware adopts fanless, low power consumption and wide temperature and voltage design, which has passed rigorous industrial standard tests, and suits the industrial scene environment with harsh requirements for EMC. It can be widely used in smart substation, smart grid, energy storage, photovoltaic, wind electricity, non-electric industry SCADA system and other industrial fields.

Tính năng

  • Support 4 Gigabit daughter board slots, 1 of which supports 6-SFP slot daughter board, and the other 3 support 8-SFP slot daughter board or 8-copper port daughter board.
  • Support IEC 62439-3 HSR/PRP high reliability seamless redundancy and parallel redundancy, and all ports support IEEE 1588v2 PTP
  • Support MRP ring network, reconfiguration time < 200ms
  • Support Modbus TCP monitoring instruction of power SCADA system
  • Support IEC61850 MMS modeling and management, ensuring the efficient, reliable and standardized communication between substation devices
  • DC products support 2 hot-swappable 48VDC power inputs
  • AC products support 2 x 220VAC (110~240VAC) power inputs
  • Support -40~75℃ wide temperature operation, support level 4 electromagnetic compatibility protection, and conform to IEC 61850-3 and IEEE 1613 (substation) standards
  • Support IP30 protection grade

Thông số kỹ thuật

Standard & Protocol

IEEE 802.3u for 100Base-TX

IEEE 802.3ab for 1000Base-T

IEEE 802.3z for 1000Base-X

IEEE 802.3x for Flow Control

IEEE 802.1D for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

ITU-T G.8032 for ERPS

IEEE 802.1Q for VLAN

IEEE 802.1AB for LLDP

IEEE 802.3ad for LACP

IEEE1588v2 for PTP

IEEE 802.1 AS for clock synchronization

Management

SNMP v1/v2c/v3 centralized management devices, RMON, port mirroring, LLDP, DHCP Server, DHCP Relay, Modbus TCP monitoring, IEC61850 MMS, port speed limit, port isolation, port statistics, file management, online upgrade, log information, Syslog server

Security

User privilege classification, ACL, SSH/HTTPS protocol authorization, link flapping protection, port loopback detection, access control, SNMP, RMON, IPDT, IPv6DT, Smart-Link, NAT, port alarm, temperature alarm, power alarm, network load alarm

Switch Function

802.1Q VLAN, MAC, static aggregation, LACP, ARP, storm suppression

Unicast / Multicast

IGMP-Snooping, MLD-Snooping, GMRP, IGMP, MLD, PIM-SM, PIM-DM, IPv6-PIM-SM, IPv6-PIM-DM

Redundancy Technology

Ring, MRP, STP/RSTP/MSTP, HSR/PRP, ERPS

Routing Technique

RIP, RIPng, OSPF, OSPFv3, ISIS, VRRP, IPv6 VRRP, BGP

Troubleshooting

Ping, Traceroute, Network Cable Diagnosis, DDMI

Time Management

PTP, NTP Client, Time Zone Configuration

Interface

Gigabit copper port: 100/1000Base-T(X) self-adaption or forced mode, RJ45, Automatic Flow Control, Full/Half Duplex Mode self-adaption, MDI/MDI-X Autotuning

Gigabit SFP: 100/1000Base-X SFP slot, 100M/Gigabit self-adaption

CONSOLE: CLI command line management port(RS-232), RJ45 and Type-C

Relay: Support 1 relay alarm output, adopt 3-pin 5.08mm pitch terminal blocks, the current carrying capacity is 2A@250VAC or 2A@30VDC

Indicator

Power indicator, running indicator, alarm indicator, interface indicator

Switch Property

Transmission mode: store and forward

Cache: 24Mbit

Backplane bandwidth: 110Gbps

Switch delay: <10μs

Power Supply

DC products:

  • Power input: 2 x 48VDC power inputs, support hot-swappable
  • Connection mode:

‒ Front panel: adopt 5-pin 5.08mm pitch terminal blocks

‒ Back panel: adopt 2 3-pin 5.08mm pitch terminal blocks with switch

AC products:

  • Power input: 2 x 220VAC (110~240VAC) power supply inputs
  • Connection mode:

‒ Front panel: adopt 5-pin 5.08mm pitch terminal blocks

‒ Back panel: adopt 2 three-phase socket with switch

Power Consumption

MES5400-1U-8GT16GS6XS-2LV:

  • No-load at normal temperature: 12.48W@48VDC
  • Full-load at normal temperature: 33.6W@48VDC
  • No-load at high temperature: 14.56W@48VDC
  • Full-load at high temperature: 35.52W@48VDC

MES5400-1U-24GT6XS-2HV:

  • No-load at normal temperature: 12.09W@220VAC
  • Full-load at normal temperature: 27.35W@220VAC
  • No-load at high temperature: 16.63W@220VAC
  • Full-load at high temperature: 31.46W@220VAC

Working Environment

Operating temperature: -40~75℃

Storage temperature: -40~85℃

Relative humidity: 5%~95% (no condensation)

Mechanical Structure

Housing: IP30 protection, metal

Installation: 19-inch 1U rack mounting

Dimension (W x H x D): 482.6mm×44.1mm×320mm

Weight:

  • MES5400-1U-8GT16GS6XS-2LV: 6.849kg
  • MES5400-1U-24GT6XS-2HV: 7.233kg

Industrial Standard

IEC 61000-4-2 (ESD, electronic static discharge), Level 4

  • Air discharge: ± 15kV
  • Contact discharge: ±8kV

IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 4

  • Power supply: ±4kV
  • Copper port: ±2kV

IEC 61000-4-5 (Surge), Level 4

  • Power supply: differential mode±2kV, common mode±4kV
  • Copper port: differential mode±2kV, common mode±4kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-31

Vibration: IEC 60068-2-6

Authentication

CE, FCC, RoHS, IEC 61850-3, IEEE 1613

Download

Datasheet

Quick Guide

Thông tin đặt hàng

Model

Gigabit RJ45 LAN Port

Gigabit SFP

Power Supply

MES5400-1U-8GT16GS6XS-2LV

8

22

2 x 48VDC

MES5400-1U-8GT16GS6XS-2HV

8

22

2 x 220VAC (110~240VAC)

MES5400-1U-16GT8GS6XS-2LV

16

14

2 x 48VDC

MES5400-1U-16GT8GS6XS-2HV

16

14

2 x 220VAC (110~240VAC)

MES5400-1U-24GT6XS-2LV

24

6

2 x 48VDC

MES5400-1U-24GT6XS-2HV

24

6

2 x 220VAC (110~240VAC)

MES5400-1U-24GS6XS-2LV

30

2 x 48VDC

MES5400-1U-24GS6XS-2HV

30

2 x 220VAC (110~240VAC)
