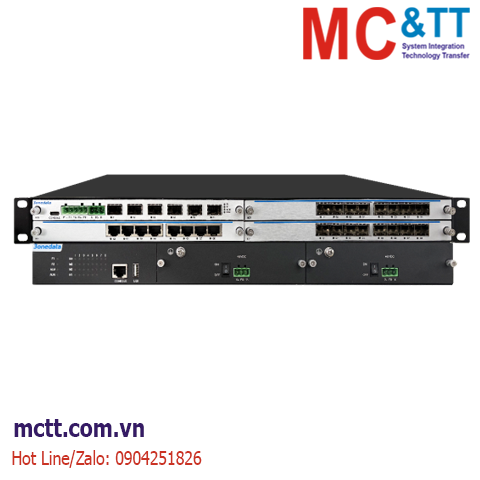

Standard & Protocol |
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
ITU-T G.8032 for ERPS
IEEE 802.1Q for VLAN
IEEE 802.1AB for LLDP
IEEE 802.3ad for LACP
IEEE1588v2 for PTP
IEEE 802.1 AS for clock synchronization |
|
Management |
SNMP v1/v2c/v3 centralized management devices, RMON, port mirroring, LLDP, DHCP Server, DHCP Relay, Modbus TCP monitoring, IEC61850 MMS, port speed limit, port isolation, port statistics, file management, online upgrade, log information, Syslog server |
|
Security |
User privilege classification, ACL, SSH/HTTPS protocol authorization, link flapping protection, port loopback detection, access control, SNMP, RMON, IPDT, IPv6DT, Smart-Link, NAT, port alarm, temperature alarm, power alarm, network load alarm |
|
Switch Function |
802.1Q VLAN, MAC, static aggregation, LACP, ARP, storm suppression |
|
Unicast / Multicast |
IGMP-Snooping, MLD-Snooping, GMRP, IGMP, MLD, PIM-SM, PIM-DM, IPv6-PIM-SM, IPv6-PIM-DM |
|
Redundancy Technology |
Ring, MRP, STP/RSTP/MSTP, HSR/PRP, ERPS |
|
Routing Technique |
RIP, RIPng, OSPF, OSPFv3, ISIS, VRRP, IPv6 VRRP, BGP |
|
Troubleshooting |
Ping, Traceroute, Network Cable Diagnosis, DDMI |
|
Time Management |
PTP, NTP Client, Time Zone Configuration |
|
Interface |
Gigabit copper port: 100/1000Base-T(X) self-adaption or forced mode, RJ45, Automatic Flow Control, Full/Half Duplex Mode self-adaption, MDI/MDI-X Autotuning
Gigabit SFP: 100/1000Base-X SFP slot, 100M/Gigabit self-adaption
CONSOLE: CLI command line management port(RS-232), RJ45 and Type-C
Relay: Support 1 relay alarm output, adopt 3-pin 5.08mm pitch terminal blocks, the current carrying capacity is 2A@250VAC or 2A@30VDC |
|
Indicator |
Power indicator, running indicator, alarm indicator, interface indicator |
|
Switch Property |
Transmission mode: store and forward
Cache: 24Mbit
Backplane bandwidth: 110Gbps
Switch delay: <10μs |
|
Power Supply |
DC products:
- Power input: 2 x 48VDC power inputs, support hot-swappable
- Connection mode:
‒ Front panel: adopt 5-pin 5.08mm pitch terminal blocks
‒ Back panel: adopt 2 3-pin 5.08mm pitch terminal blocks with switch
AC products:
- Power input: 2 x 220VAC (110~240VAC) power supply inputs
- Connection mode:
‒ Front panel: adopt 5-pin 5.08mm pitch terminal blocks
‒ Back panel: adopt 2 three-phase socket with switch |
|
Power Consumption |
MES5400-1U-8GT16GS6XS-2LV:
- No-load at normal temperature: 12.48W@48VDC
- Full-load at normal temperature: 33.6W@48VDC
- No-load at high temperature: 14.56W@48VDC
- Full-load at high temperature: 35.52W@48VDC
MES5400-1U-24GT6XS-2HV:
- No-load at normal temperature: 12.09W@220VAC
- Full-load at normal temperature: 27.35W@220VAC
- No-load at high temperature: 16.63W@220VAC
- Full-load at high temperature: 31.46W@220VAC
|
|
Working Environment |
Operating temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%~95% (no condensation) |
|
Mechanical Structure |
Housing: IP30 protection, metal
Installation: 19-inch 1U rack mounting
Dimension (W x H x D): 482.6mm×44.1mm×320mm
Weight:
- MES5400-1U-8GT16GS6XS-2LV: 6.849kg
- MES5400-1U-24GT6XS-2HV: 7.233kg
|
|
Industrial Standard |
IEC 61000-4-2 (ESD, electronic static discharge), Level 4
- Air discharge: ± 15kV
- Contact discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 4
- Power supply: ±4kV
- Copper port: ±2kV
IEC 61000-4-5 (Surge), Level 4
- Power supply: differential mode±2kV, common mode±4kV
- Copper port: differential mode±2kV, common mode±4kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-31
Vibration: IEC 60068-2-6 |
|
Authentication |
CE, FCC, RoHS, IEC 61850-3, IEEE 1613 |
