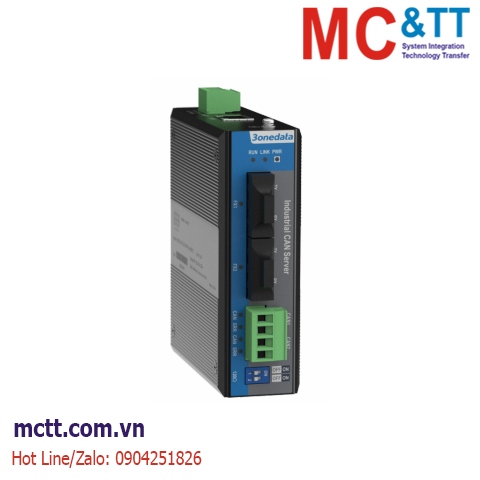

Bộ chuyển đổi 2 cổng CAN sang 2 cổng quang + 1 cổng Ethernet 3onedata ICP222-1T2F-2CI-TB-P(12-48VDC)
ICP222-1T2F-2CI-TB-P(12~48VDC) is a CAN server that has integrated 2 CAN ports, 2 100M fiber ports and 1 100M copper port. It can implement interconnection between CAN-Bus network and Ethernet to further extend the communication range of CAN-Bus network. This product supports 2 CAN to 2 100M Ethernet fiber ports and 1 100M copper port. It adopts DIN-Rail mounting to meet the requirements of different application scenes.
Can server supports multiple network protocols, such as Ipv4, IPv6, TCP, UDP, LLDP, SSH, TELNET, SW-Ring, ARP, ICMP, ICMPv6, HTTP, HTTPS, BOOTP, DNS, DHCP and DHCPv6 protocols. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each can port supports TCP Server, TCP Client, UDP Server, UDP Client, UDP Rang, UDP Multicast operating modes and TELNET, WEB, SSH access modes. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
Reset button and DIP switch can achieve restore factory defaults of the device and terminal resistance access. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, Building Automation System, Health Care Automation System, measuring instrument and environmental forces monitoring system.
Tính năng
- Support 2 CAN ports to 2 100M Ethernet fiber ports and 1 100M copper port
- Adopt SW-Ring ring network patent technology and support single ring function. Automatic recovery time from network failure is <20ms
- Support multiple operating modes like TCP Server, TCP Client, UDP Server, UDP Client, UDP Rang and UDP Multicast
- Support 5K~1000Kbps CAN baud rate
- Support 12~48VDC wide voltage input
- Support -40~75℃ wide operating temperature range
Thông số kỹ thuật
|
Ethernet |
Standard: IEEE 802.3 for 10Base-T,
IEEE 802.3u for 100Base-TX and 100Base-FX
Protocols: IPv4, IPv6, TCP, UDP, ARP, LLDP, HTTP, SW-Ring, HTTPS, SSH, TELNET, ICMP, ICMPv6, DHCP,DHCPv6, DNS, BOOTP
100M copper port: 1 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/ MDI-X Autotunning
100M fiber port: 2 100Base-FX, optional SC/ST/FC
Transmission distance of fiber port:
- multimode: 2km
- single mode: 20/40/60/80/100/120km
Transmission wavelength of fiber port:
- multimode: 1310nm
- single mode: 1310nm or 1550nm
Work mode: TCP Server, TCP Client, UDP Server, UDP Client, UDP Rang and UDP Multicast |
|
CAN Interface |
Standard: CAN2.0A, CAN2.0B
Interface quantity: 2 CAN ports
CAN signals: CAN1H, CAN1L, CAN2H, CAN2L
Duplex mode: 2-wire Half Duplex Mode
Baud rate: 5kbps~1000kbps
Load capacity: support concurrent transmitting of 110 nodes
Transmission distance: 40m~10km
Interface form: adopt 4-pin 5.08mm pitch terminal blocks
Terminating resistance: built-in 120Ω terminating resistance controlled by DIP switch
Interface protection: 2.5kVDC withstand voltage isolation |
|
Configuration Method |
WEB configuration management, TELNET configuration, Windows configuration tool, SSH configuration |
|
Redundancy Technology |
SW-Ring |
|
Indicator |
Power indicator, running indicator, copper port indicator, fiber port indicator, CAN indicator, CAN error indicator |
|
Power Supply |
12~48VDC
3-pin 5.08mm pitch terminal blocks
Support non-polar connection |
|
Power Consumption |
No-load: 2.3W@12VDC (normal temperature), 2.4W@12VDC (high temperature)
Full-load: 2.4W@12VDC (normal temperature), 2.5W@12VDC(high temperature) |
|
Working Environment |
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95% (no condensation) |
|
Physical Characteristic |
Housing: IP40 protection, metal
Installation: DIN-Rail mounting
Dimension (W x H x D): 35mm×110mm×95mm
Weight: 350g |
|
Industrial Standard |
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
- Air discharge:± 8kV
- lContact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
- Power supply: ±2kV
- CAN port: ±1kV
- Ethernet port: ±1kV
IEC 61000-4-5 (Surge), Level 3
- Power supply: common mode±2kV, differential mode±1kV
- CAN port: common mode±2kV, differential mode±1kV
- Network port: common mode±2kV, differential mode±1kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6 |
|
Authentication |
CE, FCC, RoHS |
Thông tin đặt hàng
- ICP222-1T2F-2CI-TB-P(12-48VDC)
2*CAN port + 1*10/100Base-T(X) RJ45 + 2*100M SC (single-mode, 20KM), single power supply 12~48VDC, Din-Rail mounting
Tài liệu
Datasheet
Quick Guide
User Manual
